Lift data from tabular data such as CSV, XSLX or database tables¤

Introduction¤

This beginner-level tutorial shows how you can build a Knowledge Graph based on input data from a comma-separated value file (.csv), an excel file (.xlsx) or a database table (jdbc).

Abstract

The complete tutorial is available as a project file. You can import this project

$ cmemc -c my-cmem project import tutorial-csv.project.zip tutorial-csv

This step is optional and makes some of the following steps of the tutorial superfluous.

The documentation consists of the following steps, which are described in detail below:

  1. Registration of the target vocabulary
  2. Uploading of the data (file)
  3. Creating the Transformation
  4. Configure Mapping
  5. Evaluate a Transformation
  6. Build the Knowledge Graph

Sample Material¤

The following material is used in this tutorial, you should download the files and have them at hand throughout the tutorial:

  • Sample vocabulary which describes the data in the CSV files: products_vocabulary.nt

  • Sample CSV file: services.csv

    Info

    ServiceID ServiceName Products ProductManager Price
    Y704-9764759 Product Analysis O491-3823912, I965-1821441, Z655-3173353, … Lambert.Faust@company.org 748,40 EUR
    I241-8776317 Component Confabulation Z249-1364492, L557-1467804, C721-7900144, … Corinna.Ludwig@company.org 1082,00 EUR
    … … … … …

  • Sample Excel file: products.xlsx

    Info

    ProductID ProductName Height Width Depth Weigth ProductManager Price
    I241-8776317 Strain Compensator 12 68 15 8 Baldwin.Dirksen@company.org 0,50 EUR
    D215-3449390 Gauge Crystal 77 58 19 15 Wanja.Hoffmann@company.org 2,00 EUR
    … … … … … … … …

1 Register the vocabulary¤

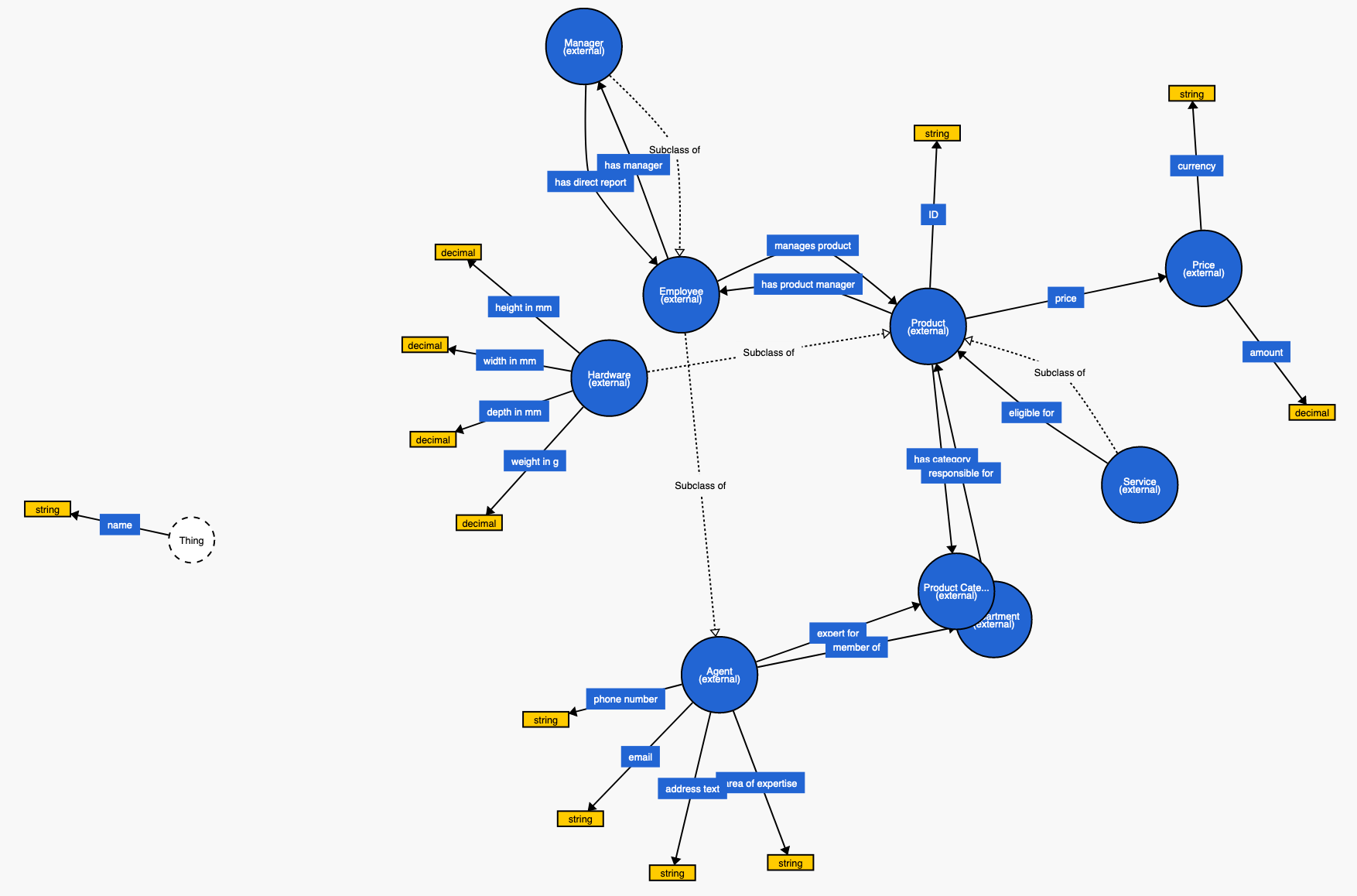

The vocabulary contains the classes and properties needed to map the data into the new structure in the Knowledge Graph.

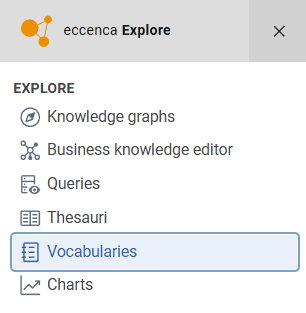

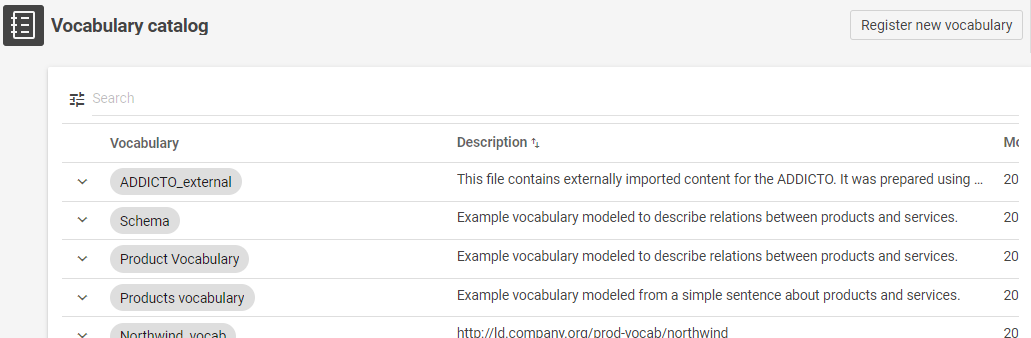

  1. In Corporate Memory, click Vocabularies under EXPLORE in the navigation on the left side of the page.

  2. Click Register new vocabulary on the top right.

  3. Define a Name, a Graph URI and a Description of the vocabulary. In this example we will use:

    • Label: Product Vocabulary
    • Graph URI: http://ld.company.org/prod-vocab/
    • Description: Example vocabulary modeled to describe relations between products and services.
    • Upload File: Browse in your filesystem for the products_vocabulary.nt file and select it to be uploaded.

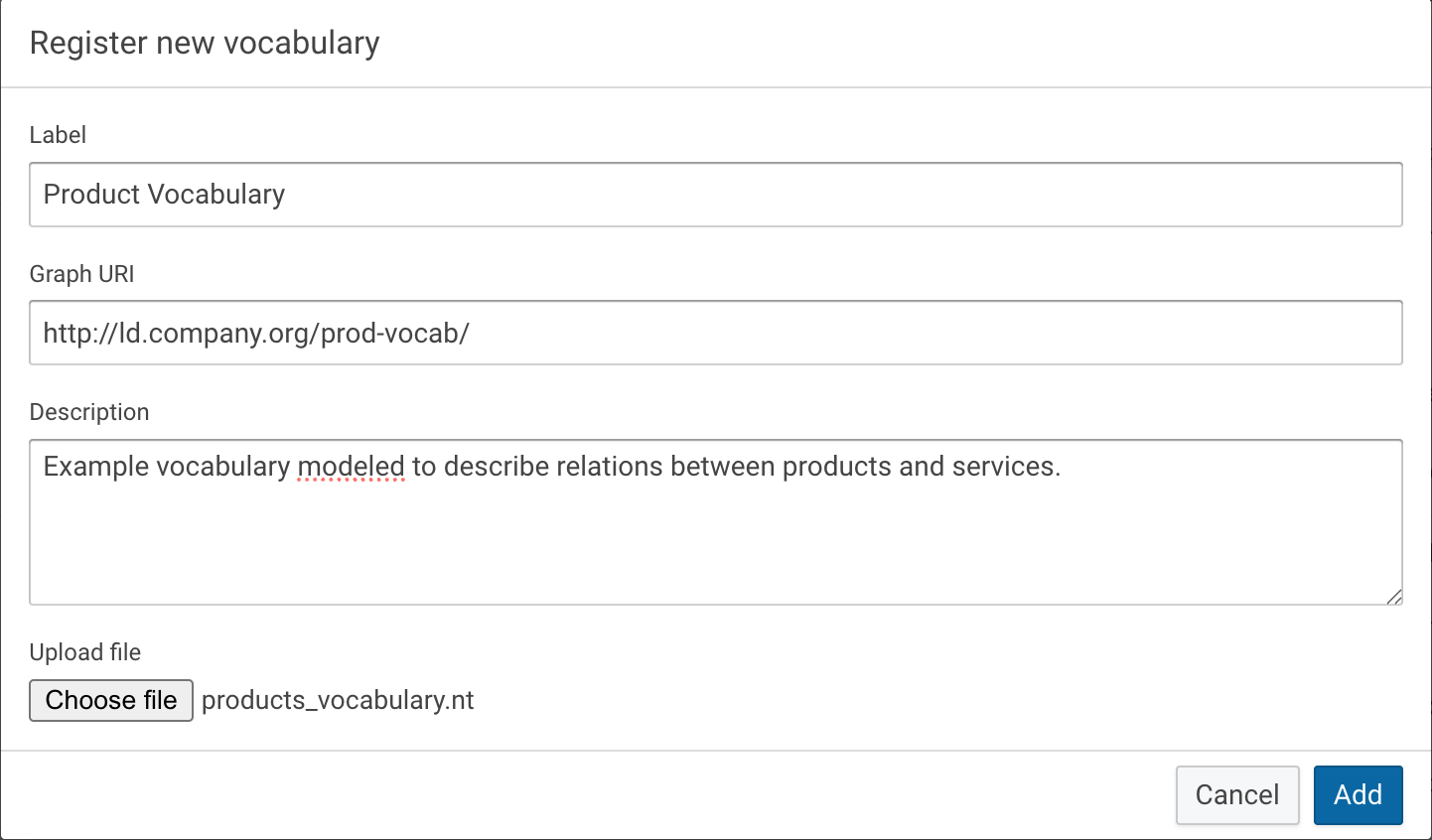

    Register new Vocabulary

$ cmemc vocabulary import products_vocabulary.nt

2 Uploading of the data (file)¤

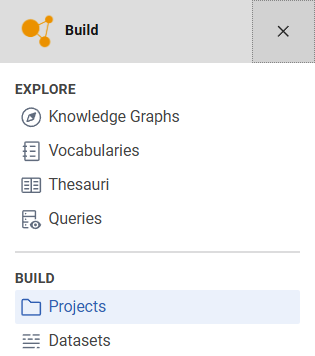

  1. In Corporate Memory, click  Projects under BUILD in the navigation on the left side of the page.

  2. Click Create  at the top right of the page. 

  3. In the Create new item window, select Project and click Add. The Create new item of type Project window appears. 

  4. Fill in the required details such as Title and Description. Alternatively, import the existing project by clicking Import Project File and selecting the file from your system. 

  5. Click Create. Your project is created.

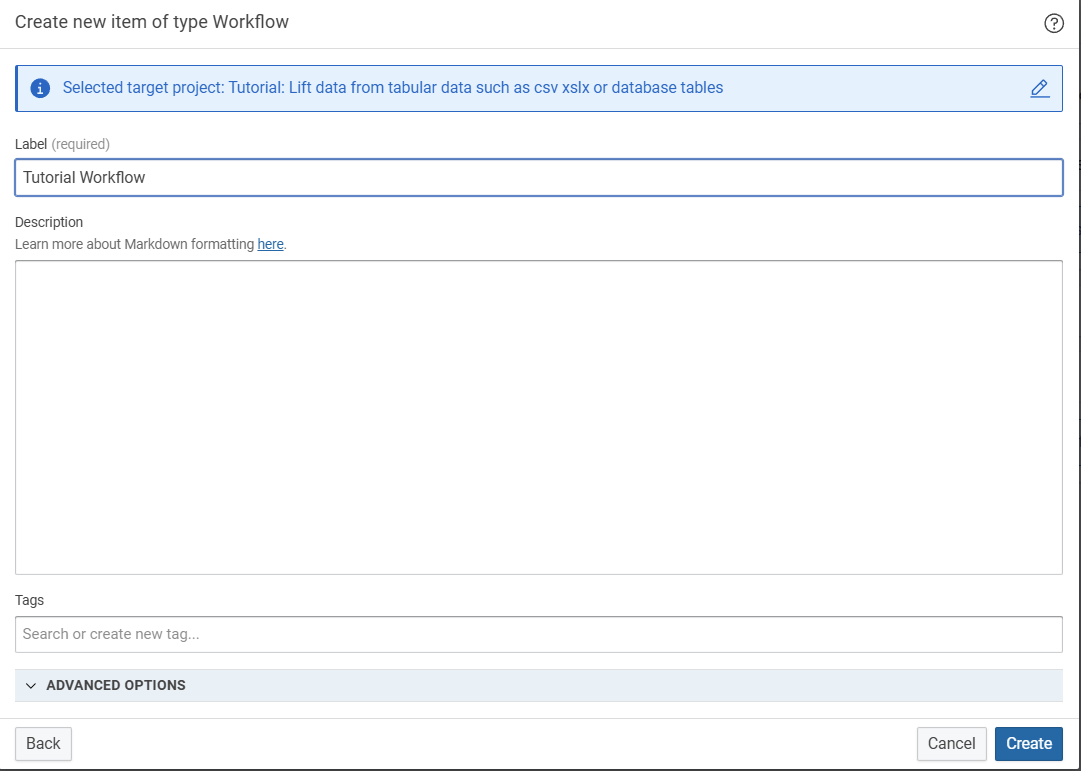

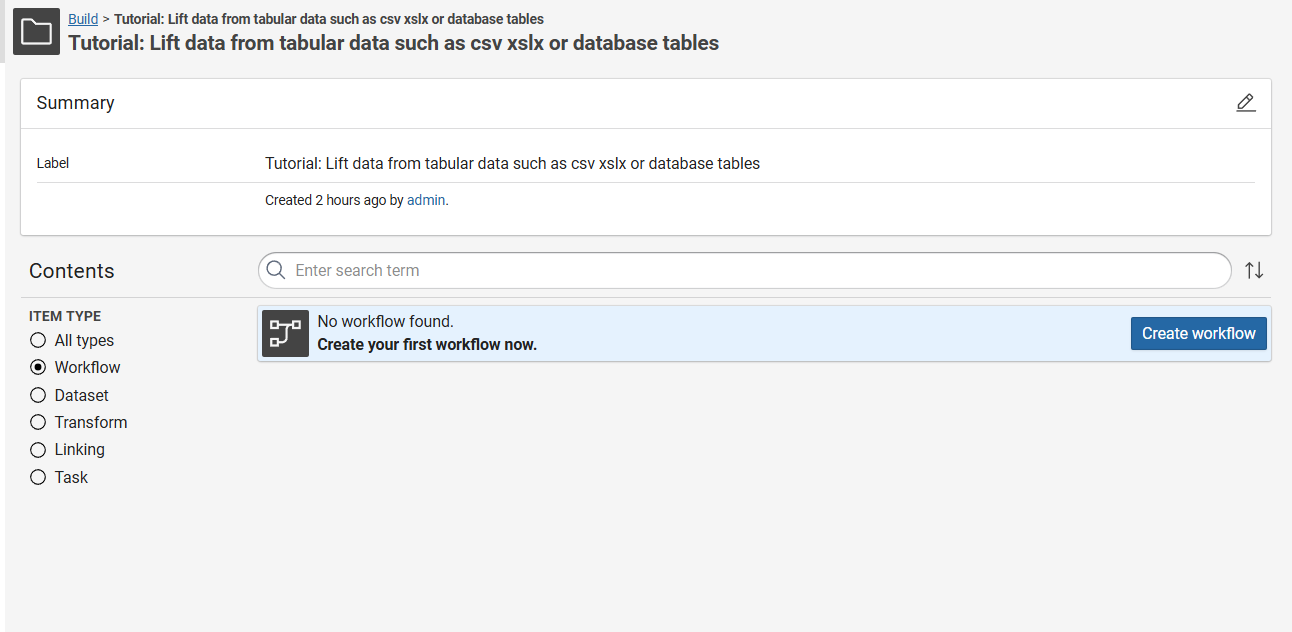

  1. Within your project, click on Create workflow.

  2. Fill out a label and click Create.

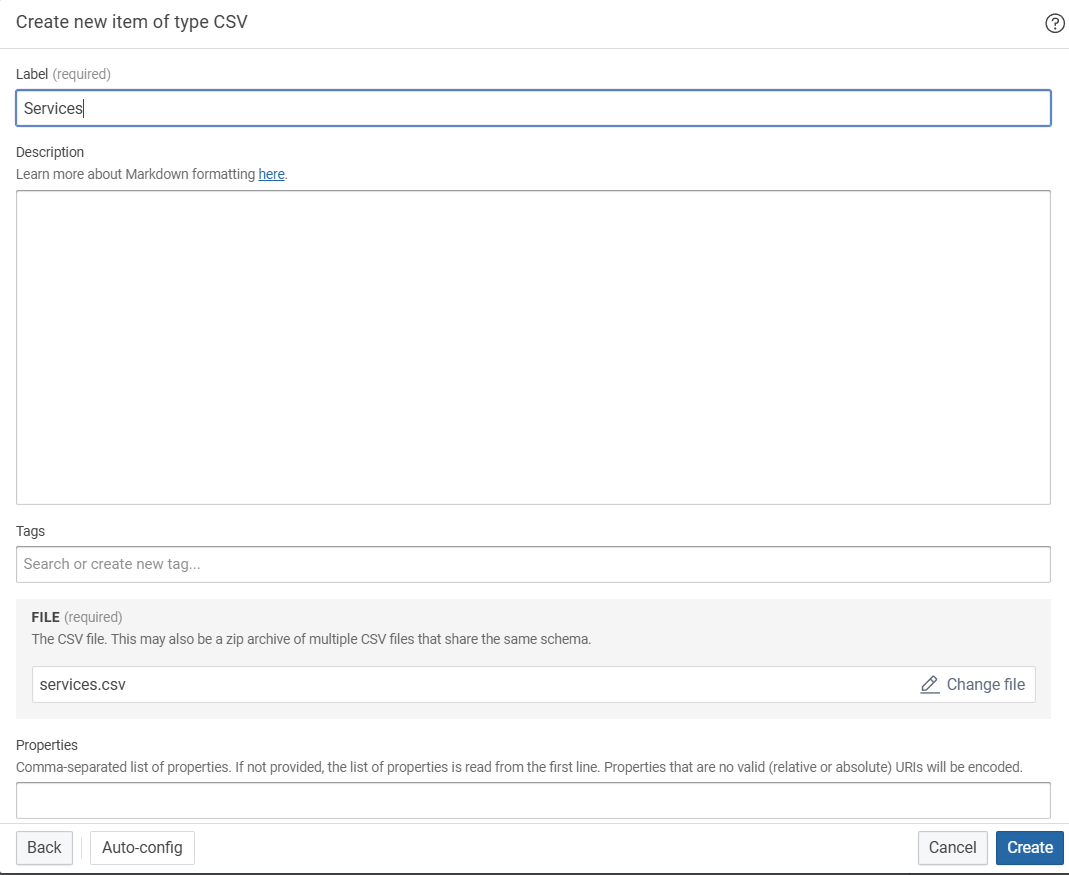

  3. Drag and drop the services.csv sample file on the grid.

  4. Optionally change the Label, then click on Create.

  5. Create a second dataset by drag & drop it on the grid using products.xlsx file.

$ cmemc project create tutorial-csv

$ cmemc dataset create --project tutorial-csv services.csv

$ cmemc dataset create --project tutorial-csv products.xlsx

Instead of uploading the services.csv sample file into Corporate Memory, you can also load it into a SQL database and access it from Corporate Memory using the JDBC protocol.

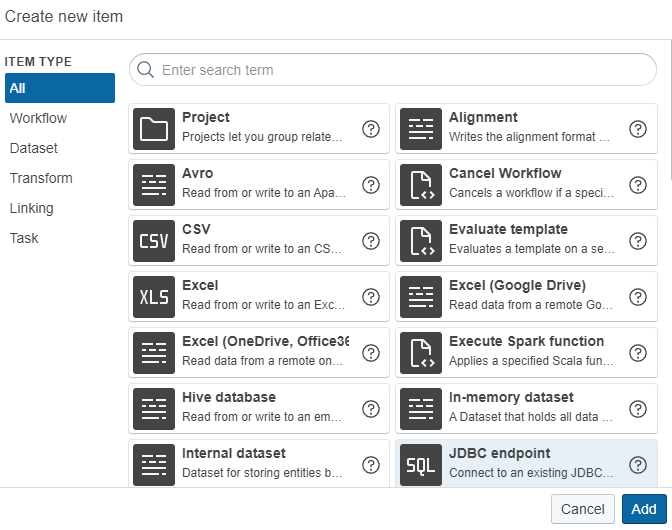

  1. In the project, Click Create and select the JDBC endpoint type.

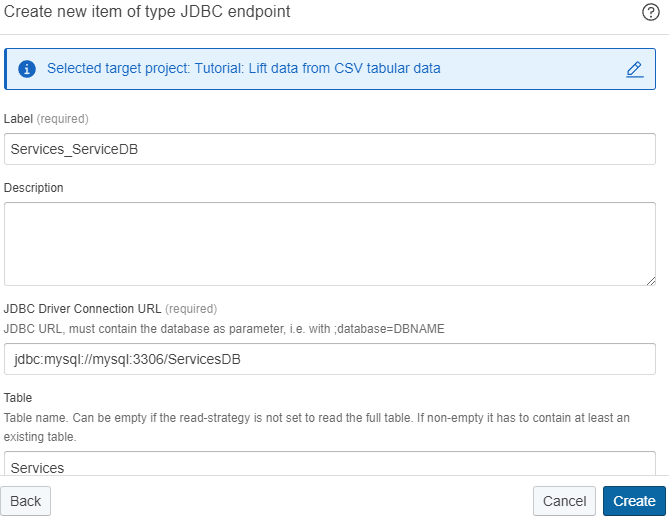

  2. Define a Label for the dataset, specify the JDBC Driver connection URL, the table name and the user and password to connect to the database. In this example we will use:

    • Name: Services_ServiceDB
    • JDBC Driver Connection URL: jdbc:mysql://mysql:3306/ServicesDB
    • table: Services
    • username: root
    • password: ****

    The general form of the JDBC connection string is:

    jdbc:<vendor>://<hostname>:<portNumber>/<databaseName>

    Default JDBC connection strings for popular Relational Database Management Systems:

    Vendor Default JDBC Connection String Default Port
    Microsoft SQL Server jdbc:sqlserver::1433/ 1433
    PostgreSQL jdbc:postgresql::5432/ 5432
    MySQL jdbc:mysql::3306/ 3306
    MariaDB jdbc:mariadb::3306/ 3306
    IBM DB2* jdbc:db2::50000/ 50000
    Oracle* jdbc:oracle:thin::1521/ 1521

    Info

    * IBM DB2 and Oracle JDBC drivers are not by default part of Corporate Memory, but can be added.

    Info

    Instead of selecting a table you can also specify a custom SQL query in the source query field.

3 Creating the Transformation¤

The transformation defines how an input dataset (e.g. CSV) will be transformed into an output dataset (e.g. Knowledge Graph).

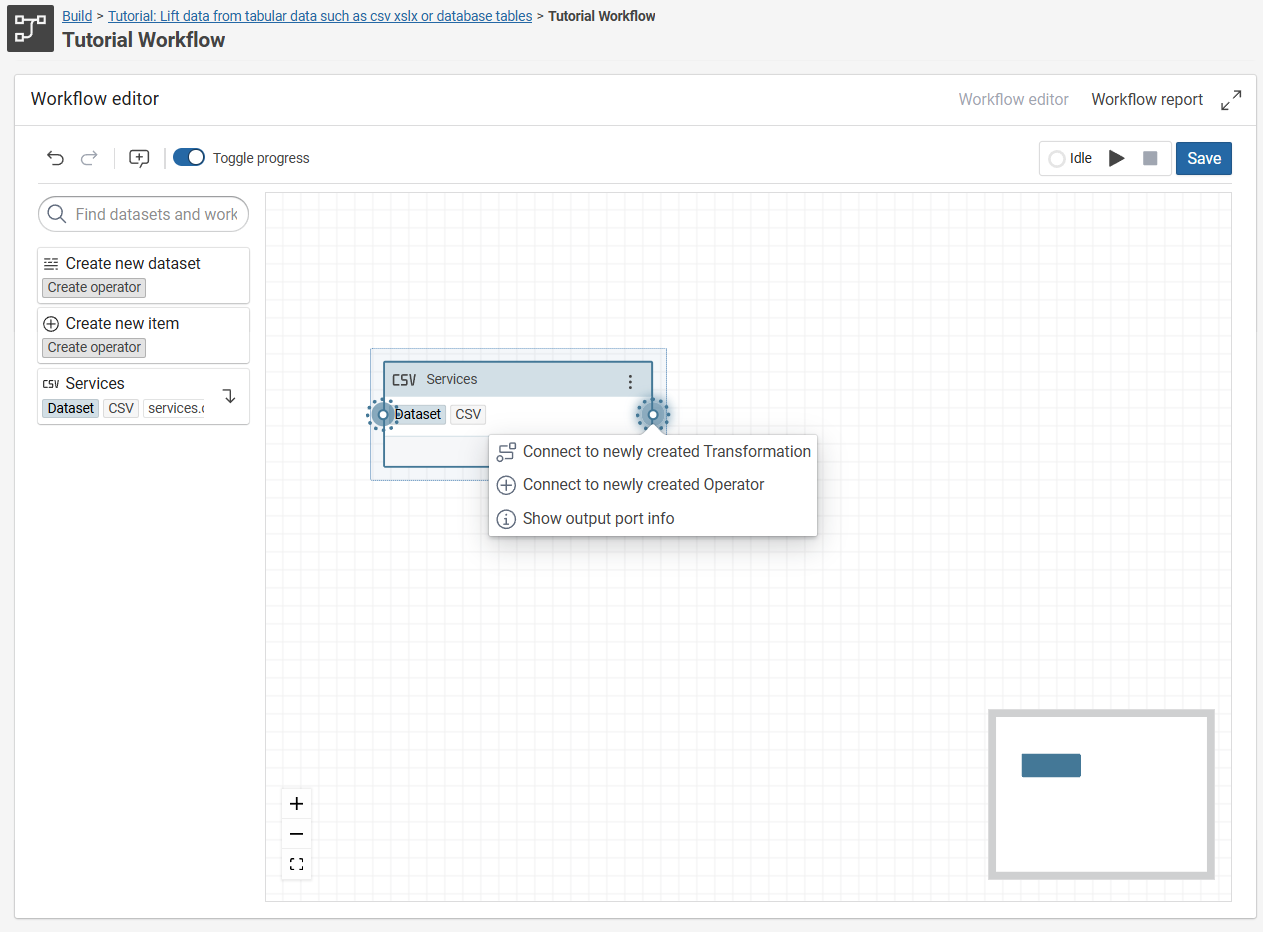

  1. Click on the right dot and select Connect to the newly created Transformation.

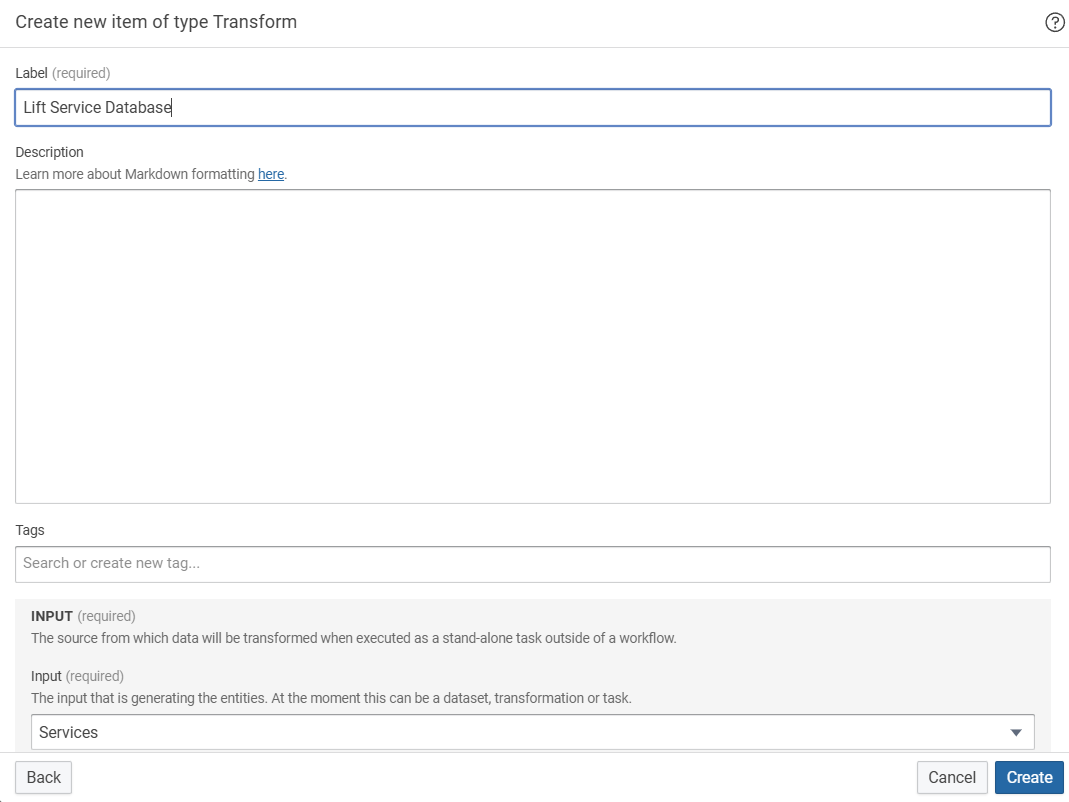

  2. Fill out the Label with Lift Service Database.

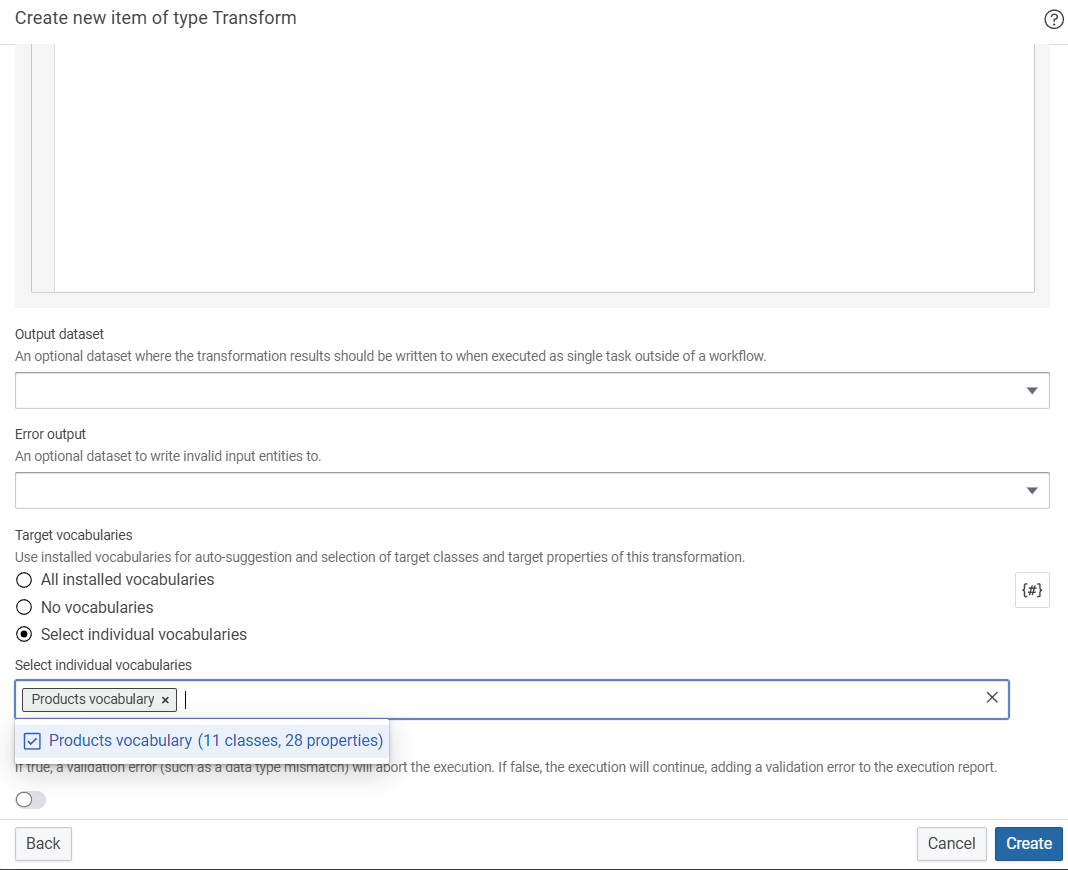

  3. Scroll down to Target vocabularies and choose Products vocabulary.

  4. Click on Create.

4 Configure Mapping¤

  1. Click on the 3 Dots from the previous created Transormation an choose Mapping Editor.

  2. Click Mapping in the main area to expand its menu.

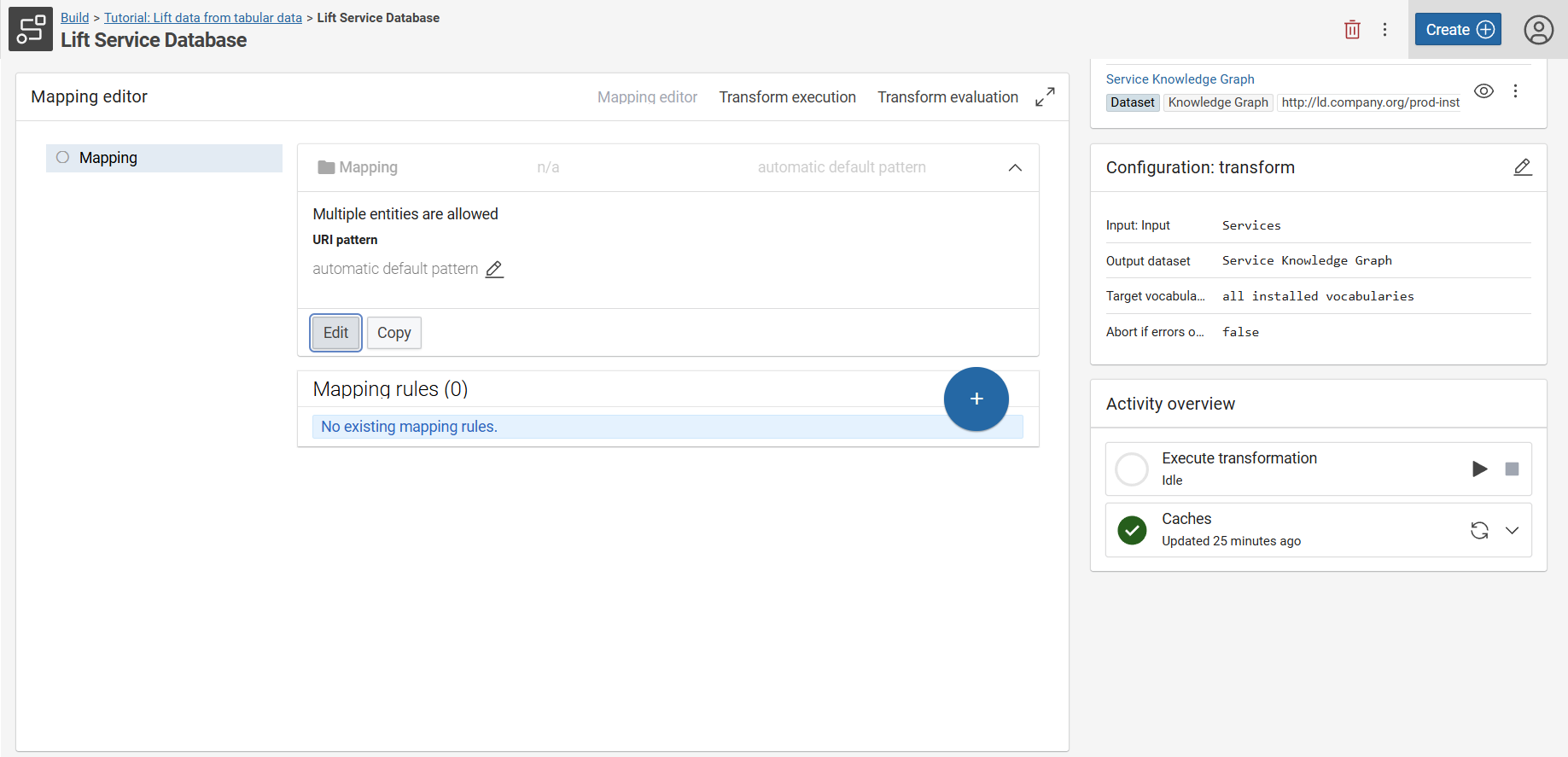

  3. Click Edit to create a base mapping.

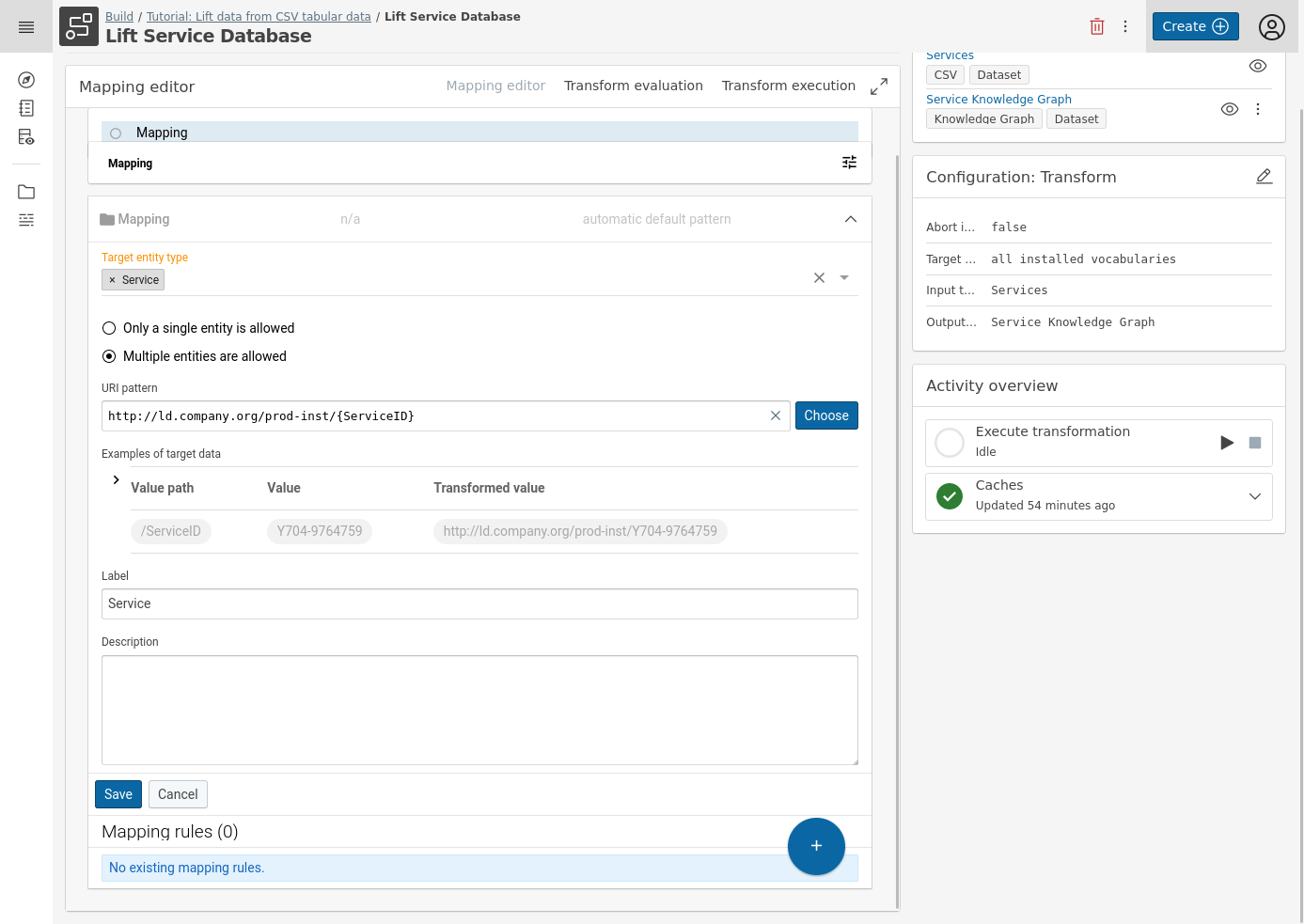

  4. Define the Target entity type from the vocabulary, the URI pattern and a label for the mapping. In this example we will use:

    • Target entity type: Service

    • URI pattern:

      • Click Create custom pattern
      • Insert http://ld.company.org/prod-inst/{ServiceID}, where http://ld.company.org/prod-inst/ is a common prefix for the instances in this use case, and {ServiceID} is a placeholder that will resolve to the column of that name.

    • An optional Label: Service

  5. Click Save

Example RDF triple in our Knowledge Graph based on the mapping definition:

<http://ld.company.org/prod-inst/Y704-9764759> <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://ld.company.org/prod-vocab/Service>

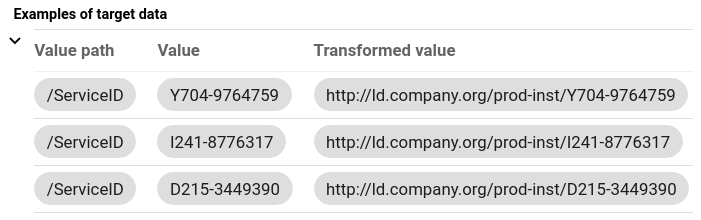

  1. Evaluate your mapping by clicking the Expand button in the Examples of target data property to see at most three generated base URIs.

    We have now created the Service entities in the Knowledge Graph. As a next step, we will add the name of the Service entity.

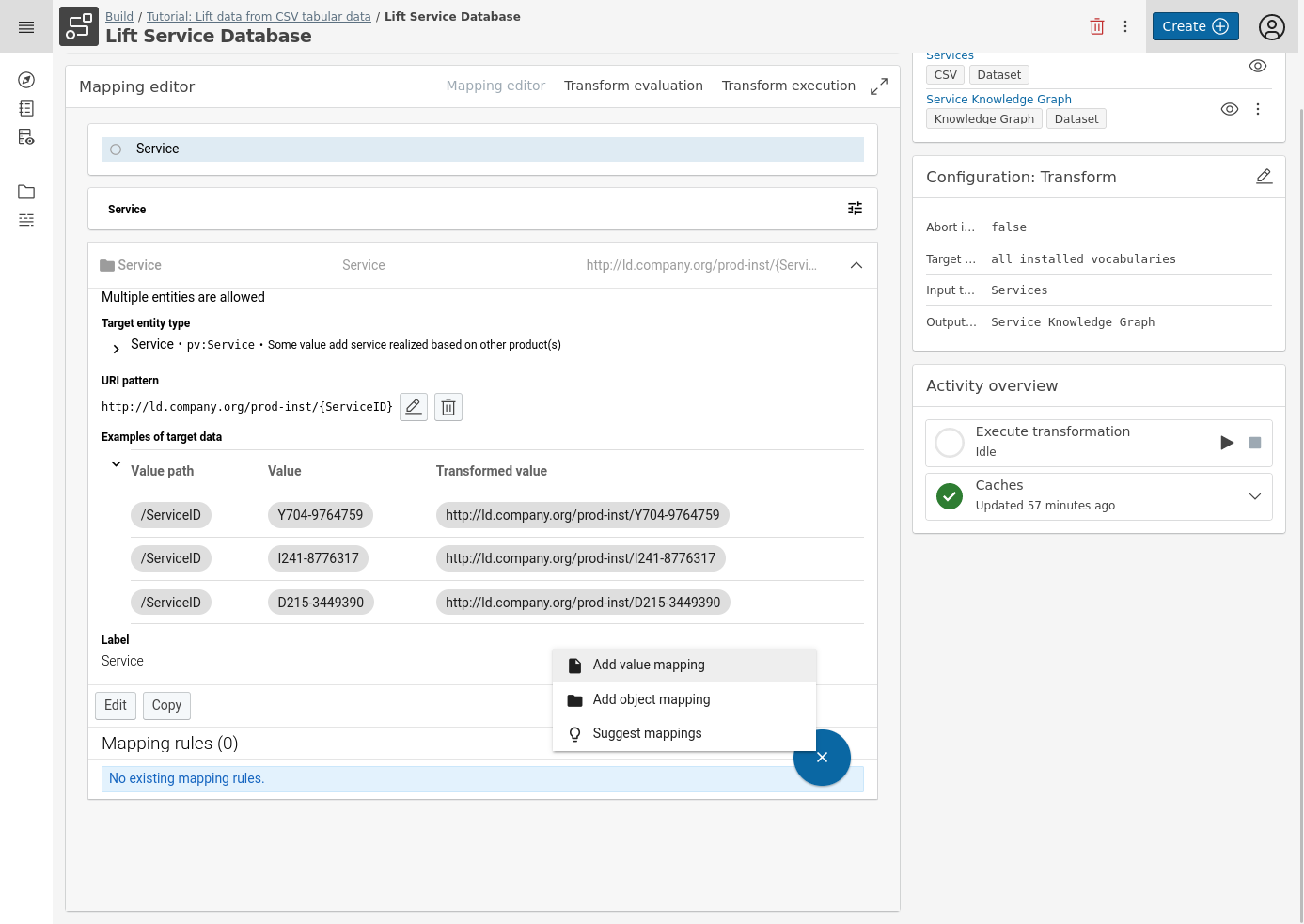

  2. Press the circular Blue + button on the lower right and select Add value mapping.

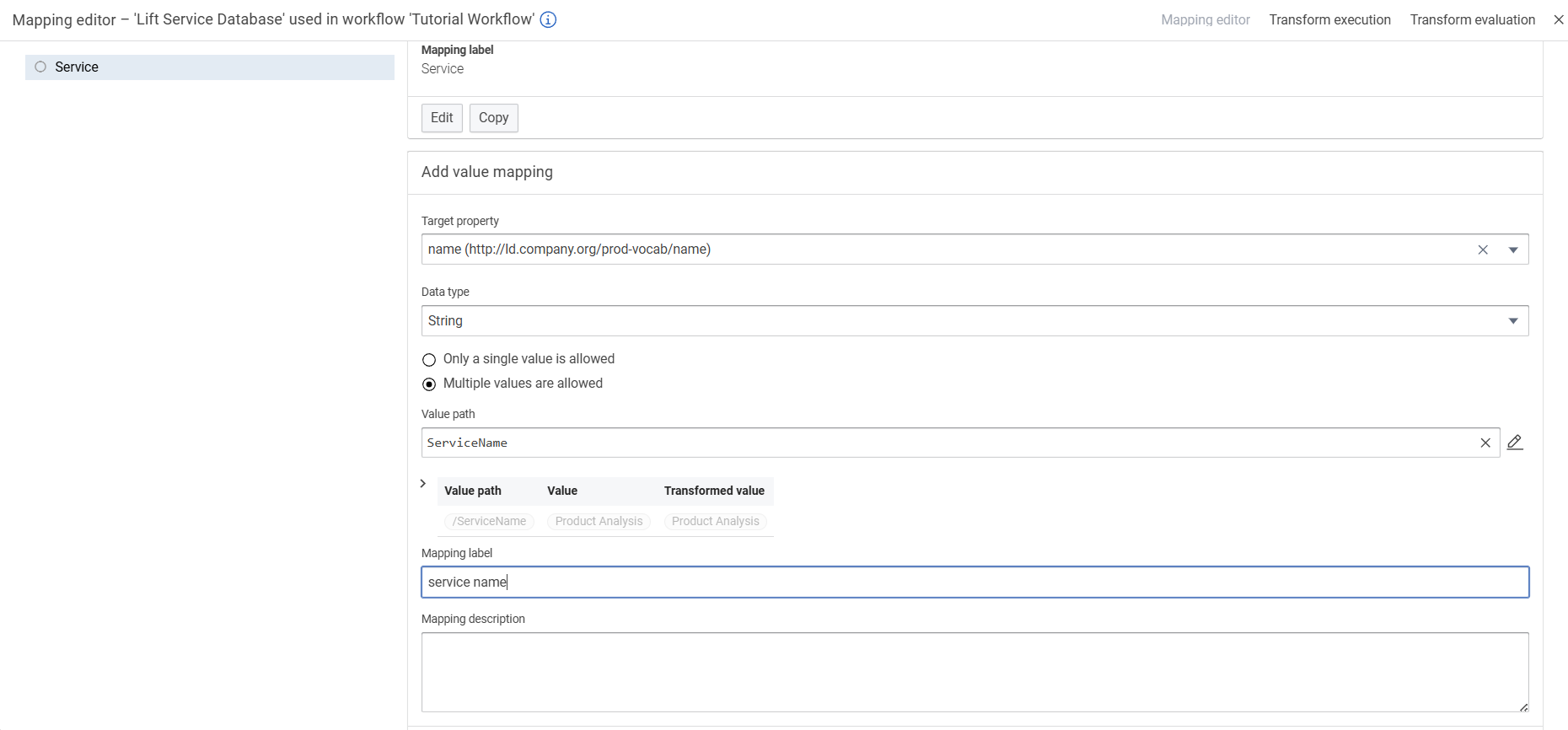

  3. Define the Target property, the Data type, the Value path (column name) and a Label for your value mapping. In this example we will use:

    • Target Property: name
    • Data type: String
    • Value path: ServiceName (which corresponds to the column of that name)
    • An optional Label: service name

  4. Click Save.

5 Evaluate a Transformation¤

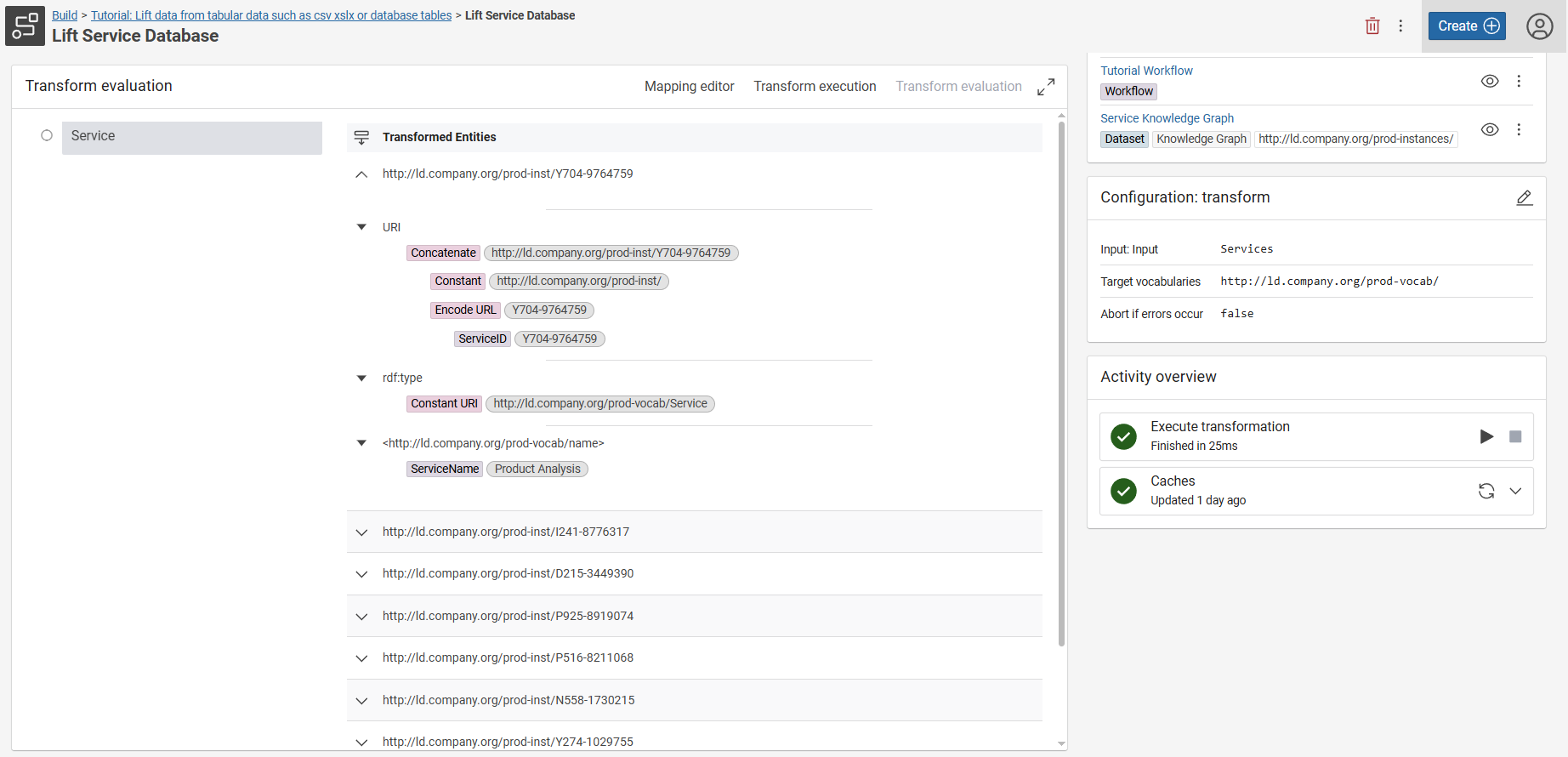

Go the Transform evaluation tab of your transformation to view a list of generated entities. By clicking one of the generated entities, more details are provided.

6 Build the Knowledge Graph¤

  1. Switch back to the Workflow view.

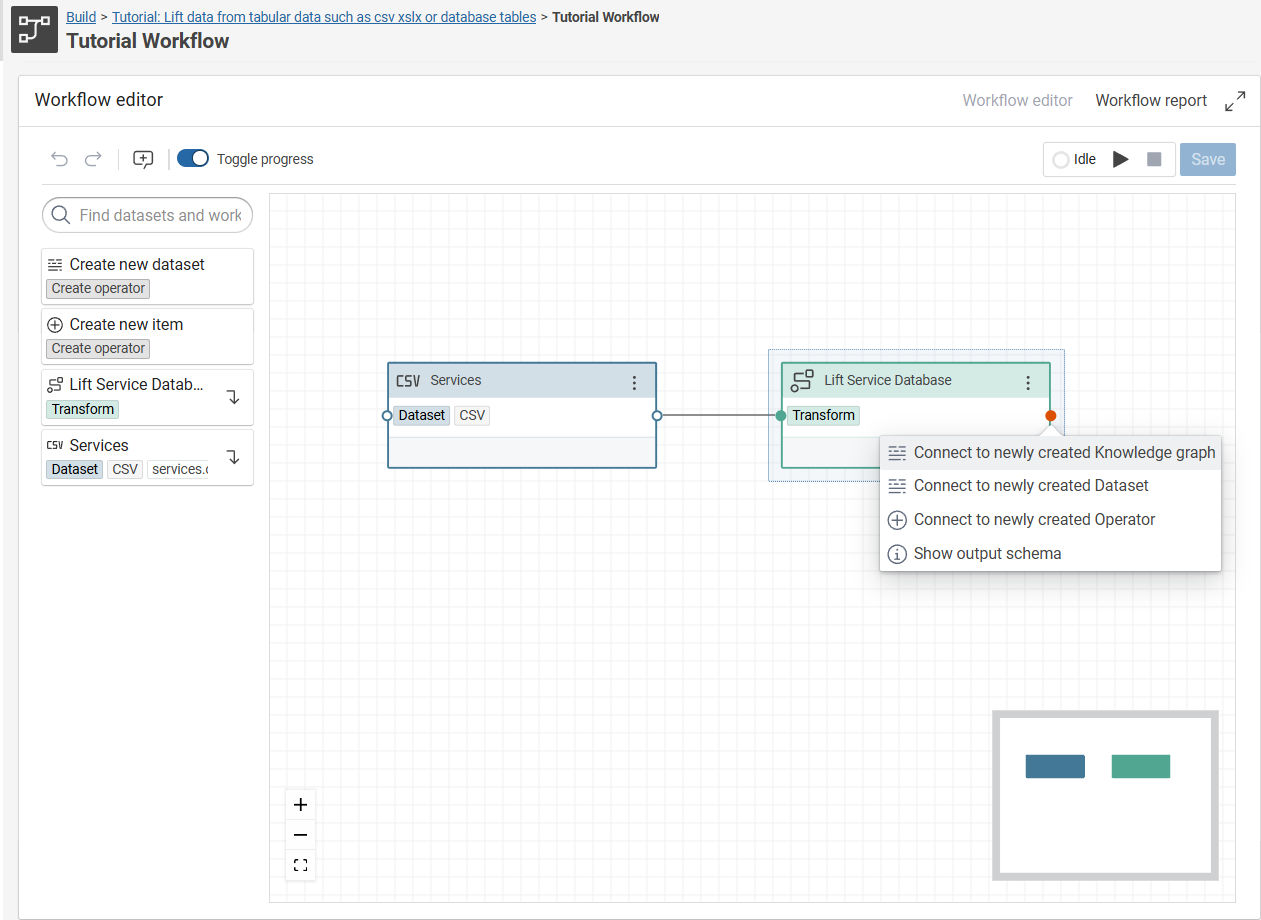

  2. Select the red dot on the right side and click Connect to the newly created Knowledge graph.

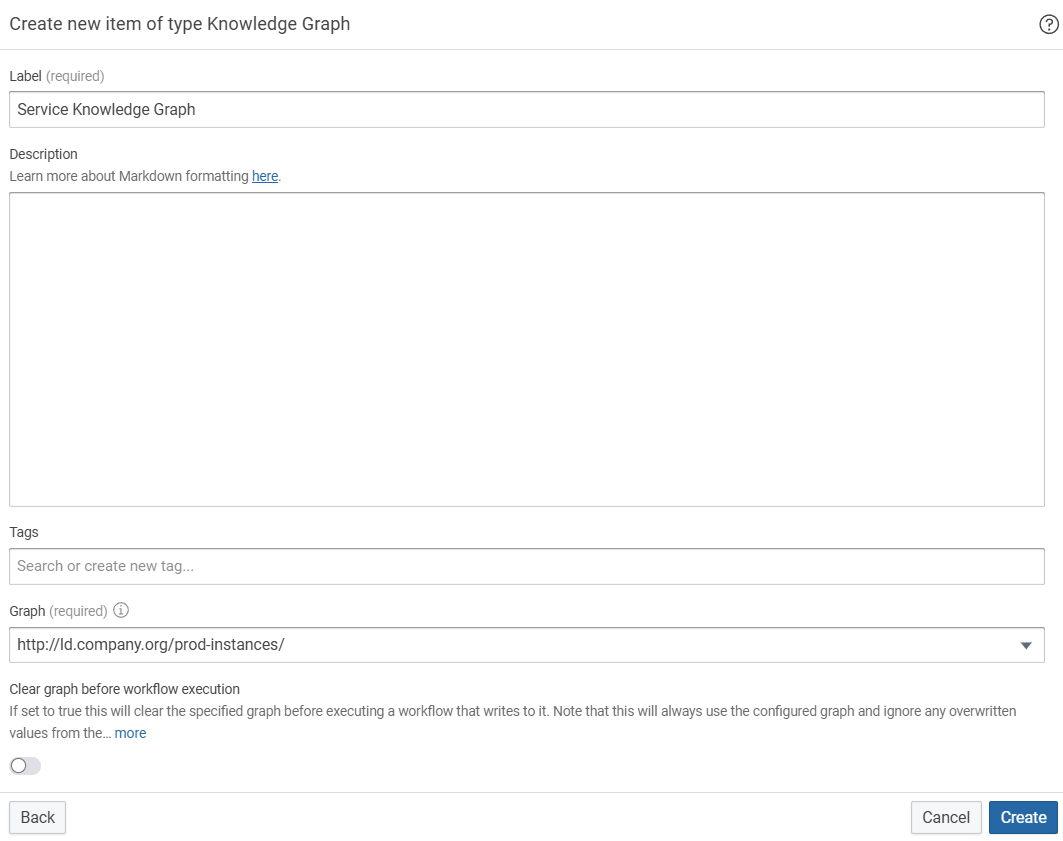

  3. Define a Label for the Knowledge Graph and provide a graph uri. Leave all the other parameters at the default values. In this example we will use:

    • Label: Service Knowledge Graph
    • Graph: http://ld.company.org/prod-instances/

  4. Click Create.

  5. Press the button and click on Save and run workflow.

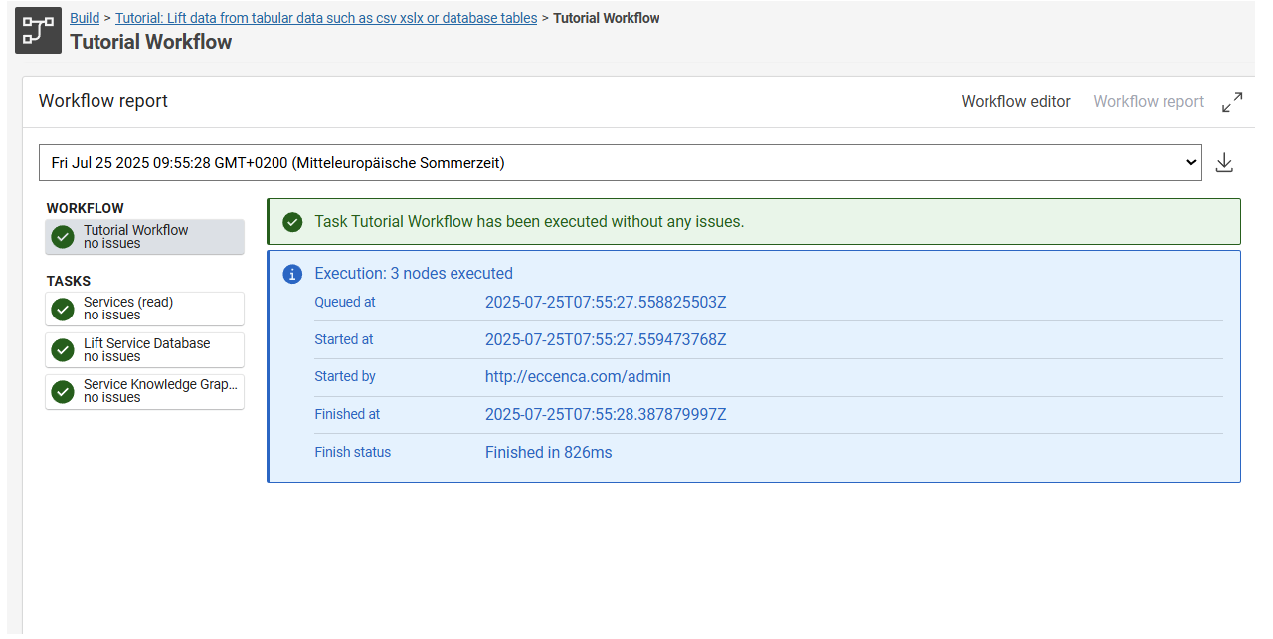

  6. Validate the results by selecting Workflow report In this example, 9x Service triples were created in our Knowledge Graph based on the mapping.

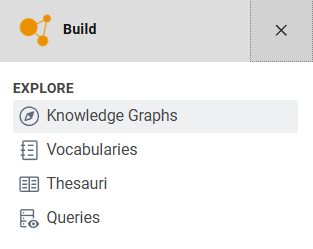

  7. Click Knowledge Graph under Explore in the navigation on the left side of the page.

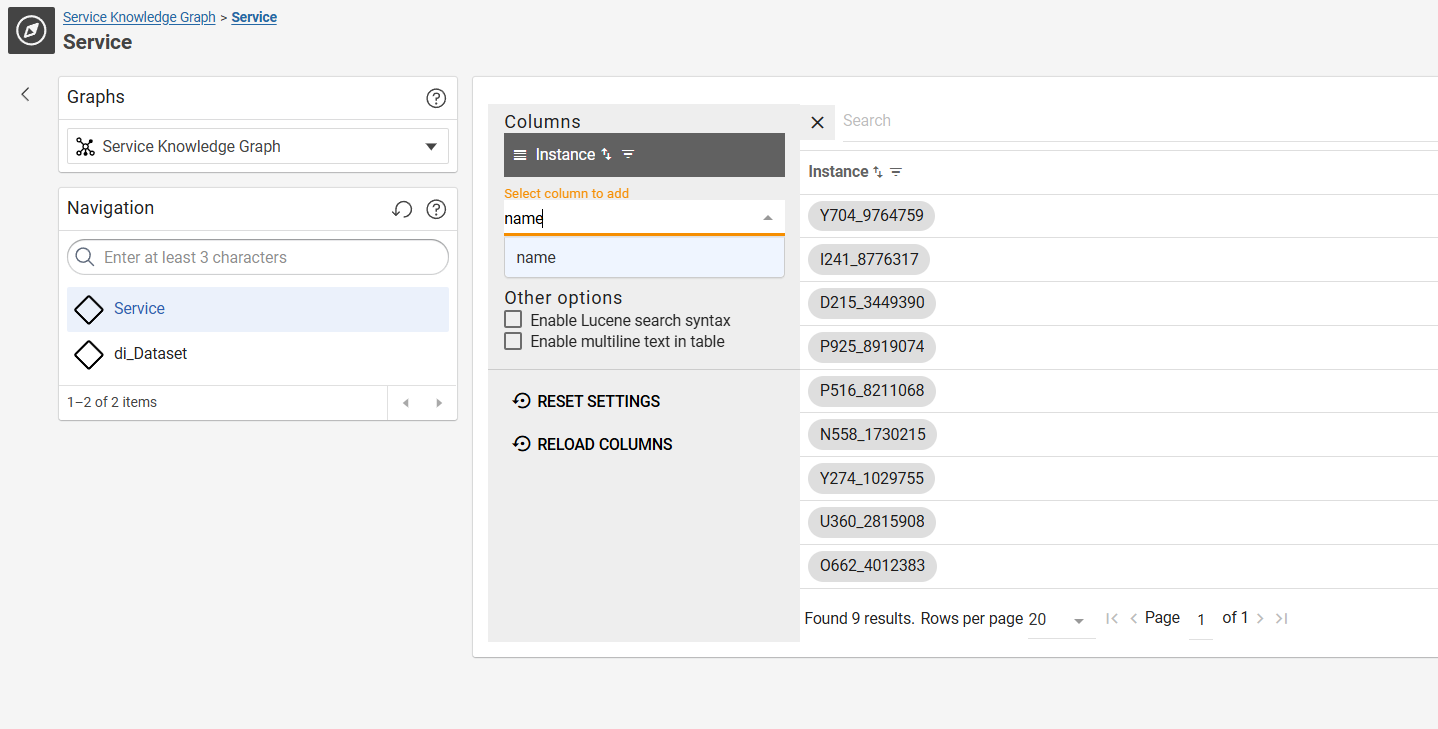

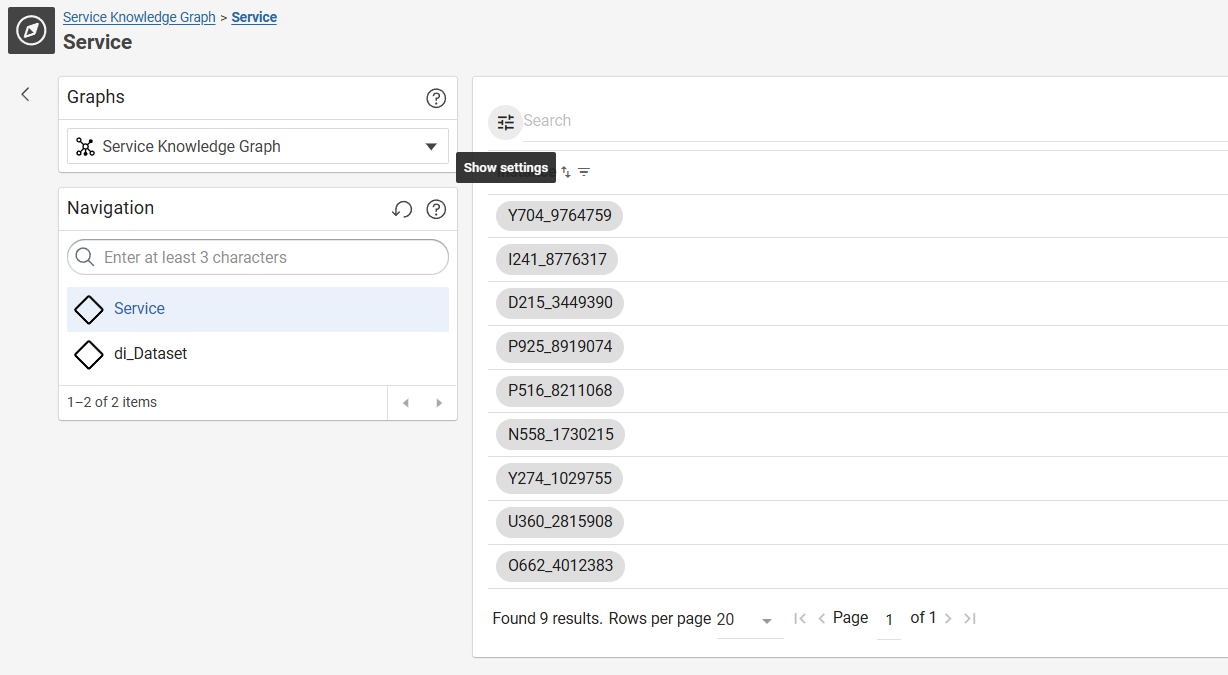

  8. Optionally, you can click on the Settings Icon and add more columns to the viw.

  9. Here you can add name for example.

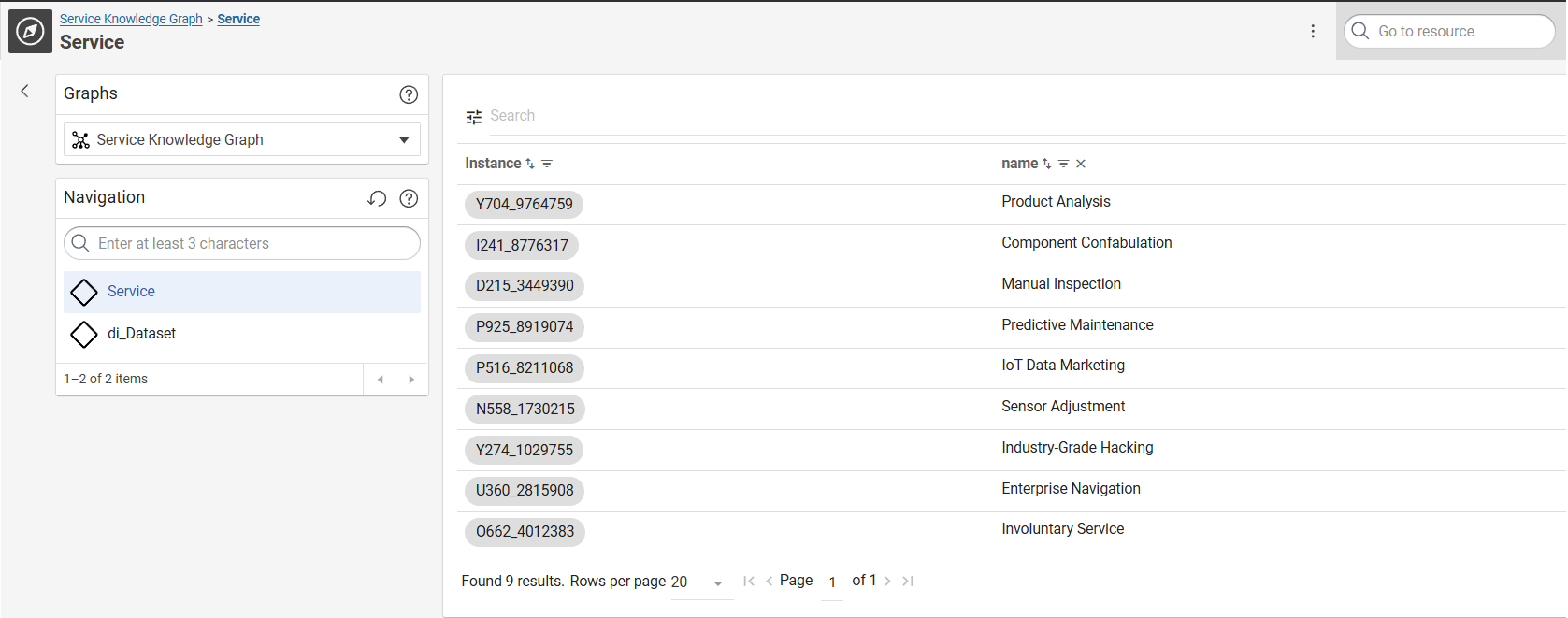

  10. Finally you can use the Explore Knowledge Graphs module to (re-)view of the created Knowledge Graph: http://ld.company.org/prod-instances/
