Using SPARQL Constraints for Custom Resource Validation¤

Introduction¤

SHACL (Shapes Constraint Language) is a language for validating RDF data based on predefined shapes or constraints. SHACL SPARQL Constraints are a set of rules defined using SPARQL queries within SHACL shapes to express more complex validation logic that cannot be easily represented by other SHACL constructs.

Key advantages:

  • Complex logic: You can implement any logic supported by SPARQL, such as aggregation, advanced pattern matching, or value ranges.

  • Reusable queries: SPARQL constraints allow the reuse of sophisticated query logic across different shapes and data types.

Setup¤

SPARQL Constraints are resources which need to be managed in a Shape Catalog. This catalog graph needs to be imported (virtually, with owl:imports) into the main CMEM Shapes Catalog. Similar to property shapes, SPARQL Constraints needed to be linked from a Node Shape in order to select the set of shapes which are used for a given selection of resources.

Step-by-Step Example¤

In our running example, we create a Node Shape for foaf:Person resources. Then we add a SPARQL Constrain shape, which checks if the label of these resources contains the term eccenca.

Install Vocabularies¤

Go to the Vocabulary catalog and install the RDF Schema and FOAF Vocabulary. Your vocabulary catalog should look like this after installation

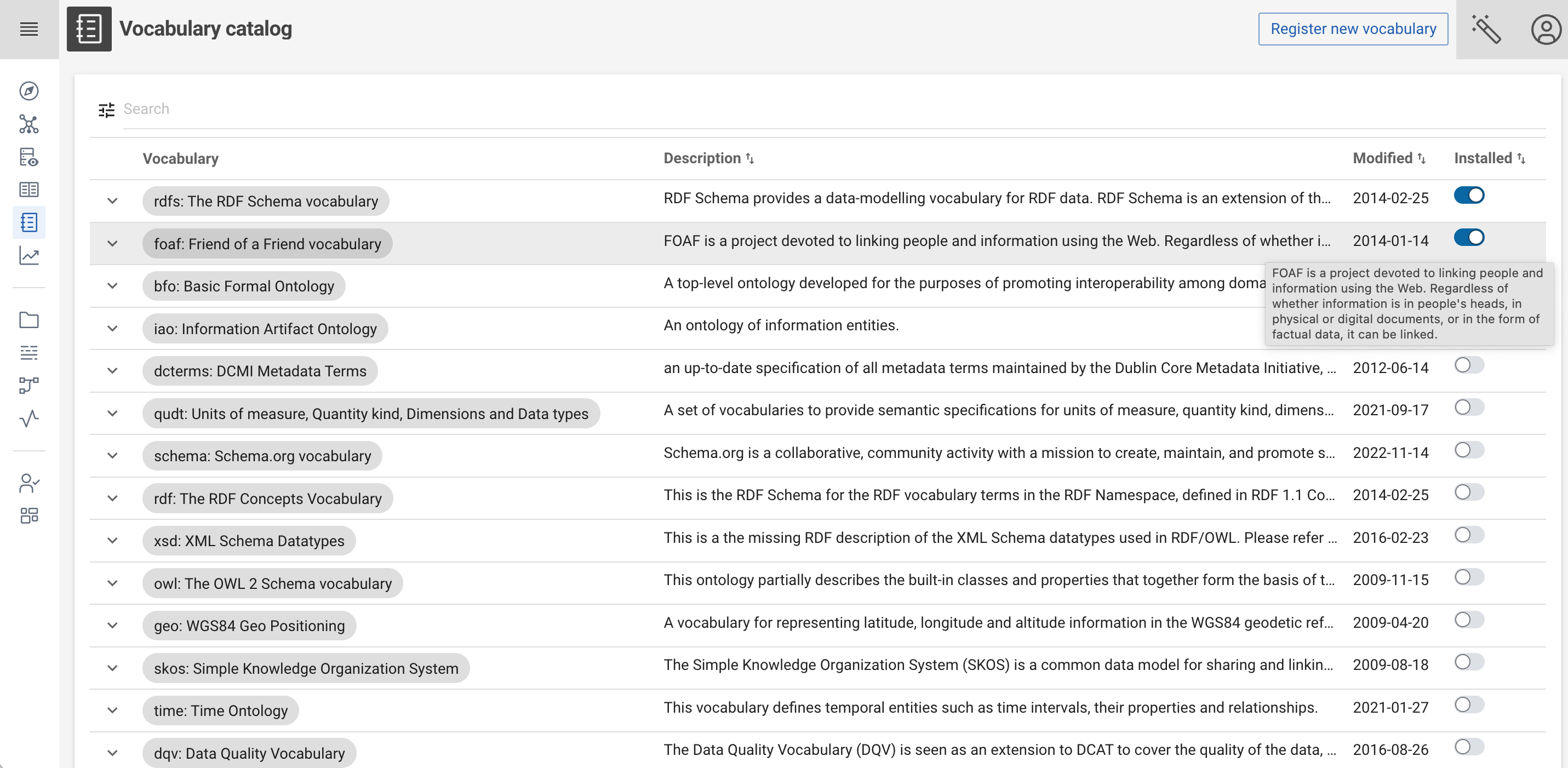

Vocabulary Catalog with Installed Vocabularies

Create Shape Catalog¤

Go to Knowledge graphs and create a New Shape Catalog. Name the graph e.g. My Shapes. After this step, the browser shows you a nearly empty graph which shows SHACL classes such as SHACL Node Shape and SHACL SPARQL Constraint in the navigation.

Empty Shapes Graph

Create Shapes¤

Select SHACL SPARQL Constraint in the Navigation component, then use the Create a new “SHACL SPARQL Constraint” button in the top right corner to create a new resource. Fill in a label and a SPARQL SELECT Query.

For our example, we use the following values:

  • Label: The term eccenca is not allowed in a Person label
  • SPARQL Select:
PREFIX foaf: <http://xmlns.com/foaf/0.1/>
PREFIX  rdfs: <http://www.w3.org/2000/01/rdf-schema#>

SELECT $this (rdfs:label as ?path) (?label as ?value)
WHERE {
  $this a foaf:Person ;
  rdfs:label ?label .
  FILTER( REGEX(STR(?label), "eccenca" ))
}

Note that the projection variables of SPARQL Constraint queries need to be named according to the SHACL Specificaton ($this, ?path, ?value). After you clicked on Create you should see your new resource in a list.

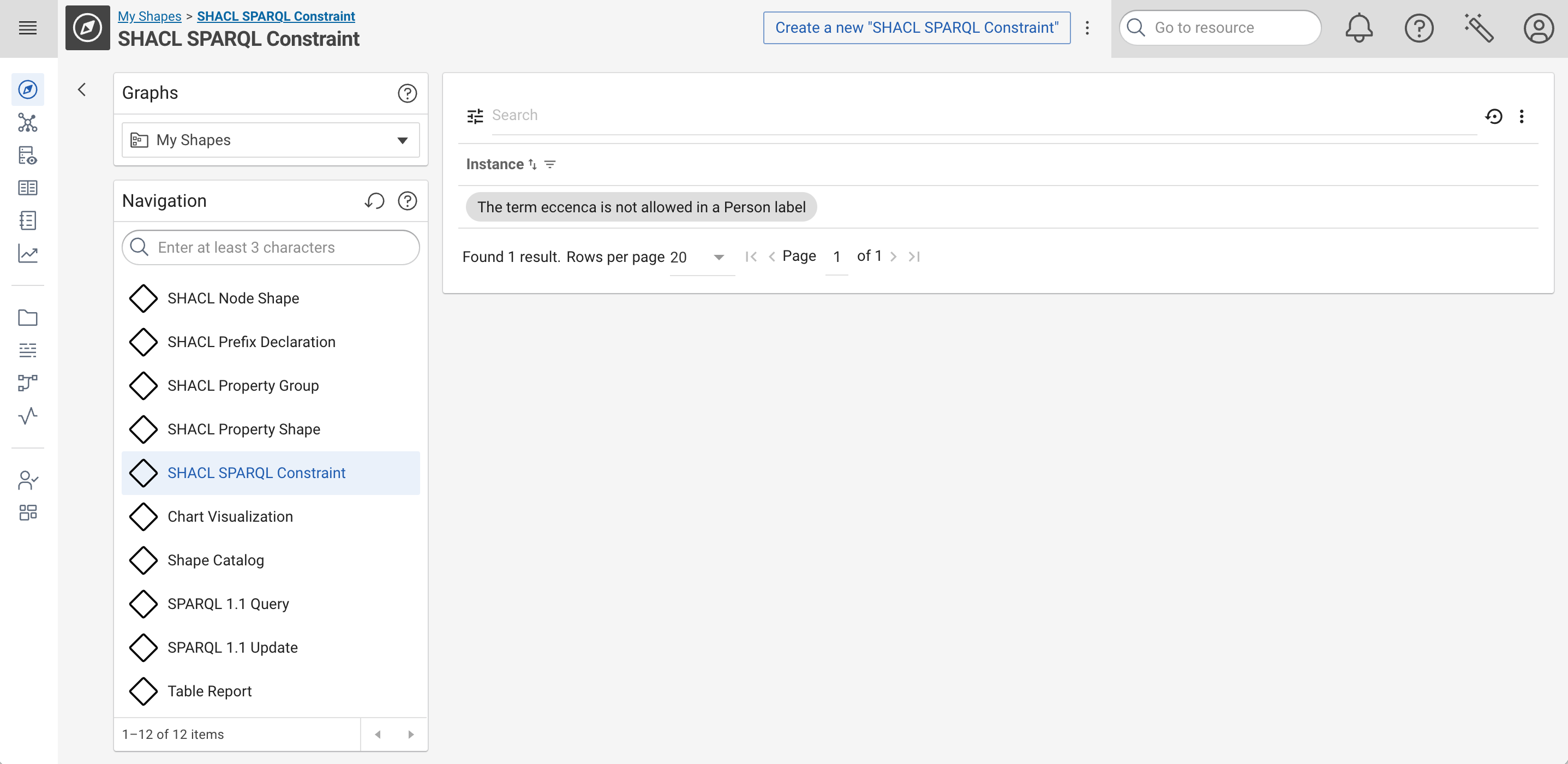

New SPARQL Constraint

As a next step select SHACL Node Shape in the Navigation component, then use the Create a new “SHACL Node Shape” button in the top right corner to create a new resource.

Enter the following values:

  • Name: Person Shape
  • Target class: Select Person from the FOAF vocabulary
  • SPARQL Constraints: Select your new constraint from the list (your have to use the Add data menu to extend the form with this non-default input field)
  • Property Shapes: Create a new property shape with
    • Name: Name
    • Show always: true
    • Path: rdfs:label
    • Node Kind: Literal

Before you create your new Node Shape (and new Property Shape) your screen should look like this:

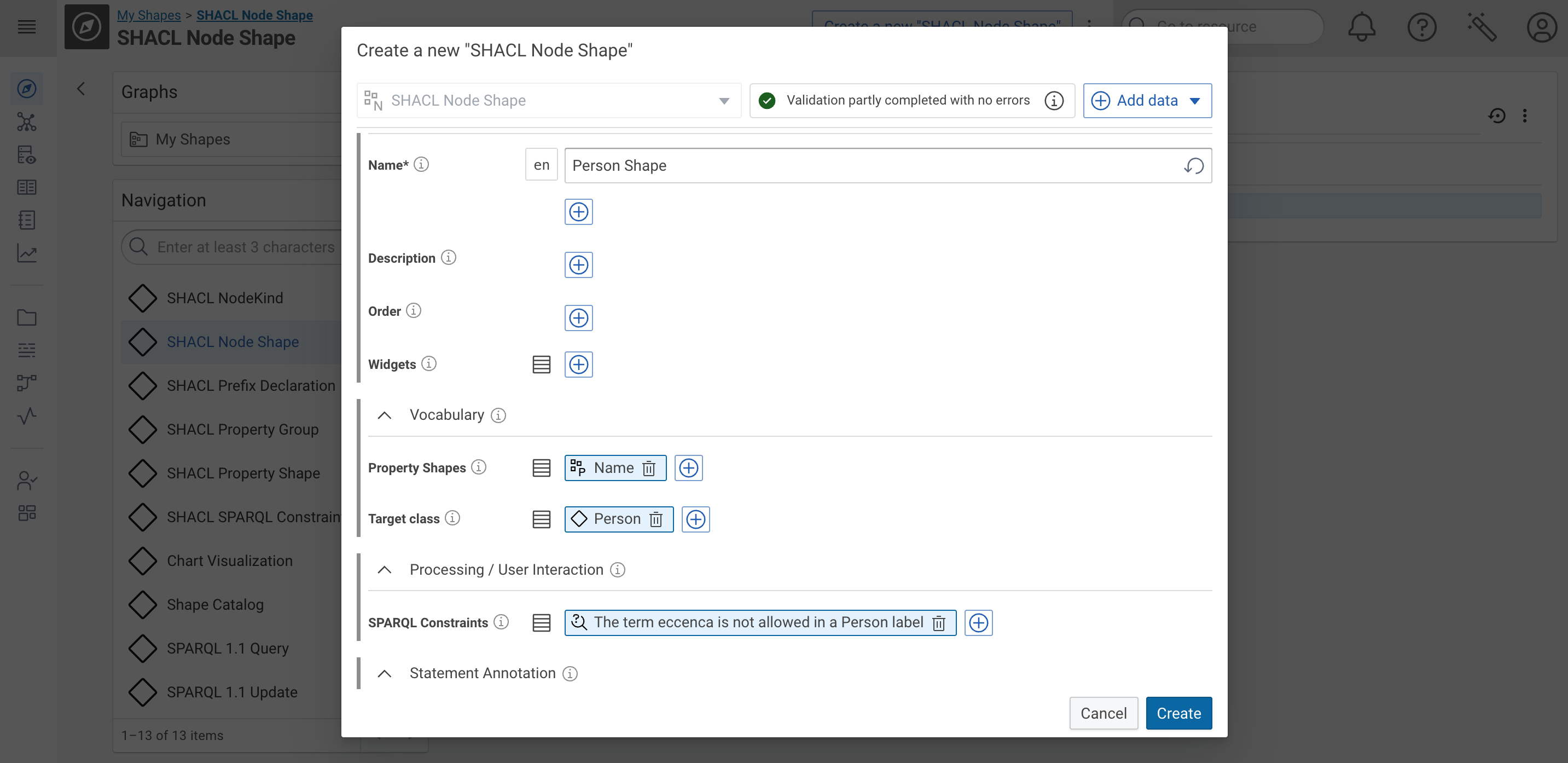

Create New Node Shape

Validate Data¤

Now we can validate the shape by creating a Person with a label which contains the term eccenca.

  • Go to Knowledge graphs and create a New Knowledge Graph.
    • Name: My Data
    • Imports: foaf: Friend of a Friend vocabulary
  • Select Person in the Navigation component, then use the Create a new “Person” button in the top right corner to create a new resource.
    • Name: The term eccenca is not allowed

To validate a single resource, click the validation button. You will see a screen like this:

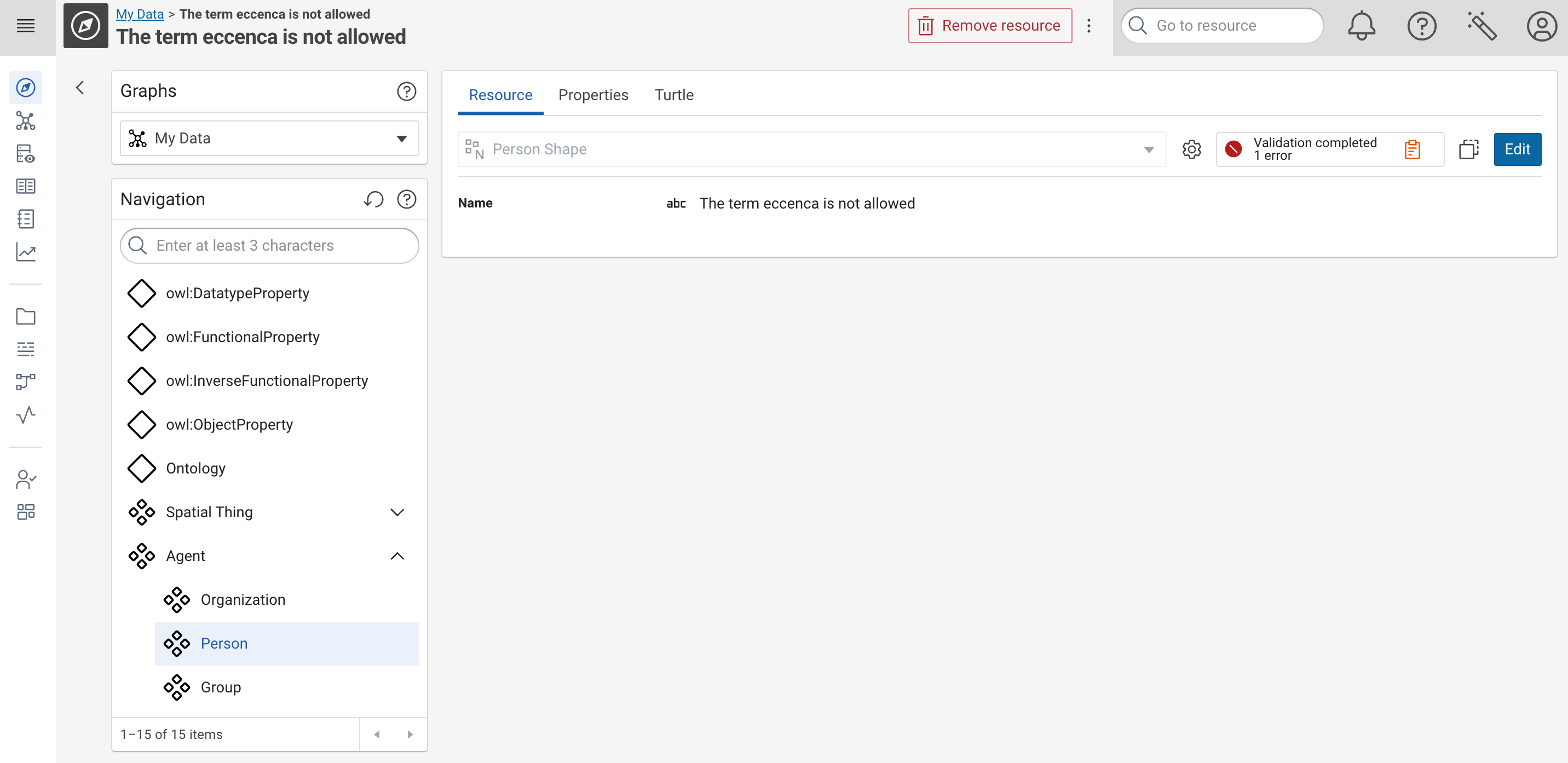

Invalid Resource

When you open the validation report, you will see a error message such as: The value does not conform to SPARQL constraint.

In addition to manual validation of a single resource, you have the following other options:
