Link Rules Module¤

Introduction¤

The Link Rules module provides mechanisms to simplify creating data linking and to imposes role specific workflows over the whole process.

Linking tasks allow the creation of links between resources based on rules in the Corporate Memory Build component. Such a linking task demands the configuration of source and target input resource selections (dataset, resource type or additional restrictions), the link type and an output dataset. These configurations demand a thorough understanding of your Knowledge Graph internals and may become a repetitive task. The Link rules module allows to streamline this process in a way that also users with limited understanding of the knowledge graph can create link rules based on pre-defined templates.

Usage¤

This guide explains how to navigate, search, create, and manage Link Rules in the interface.

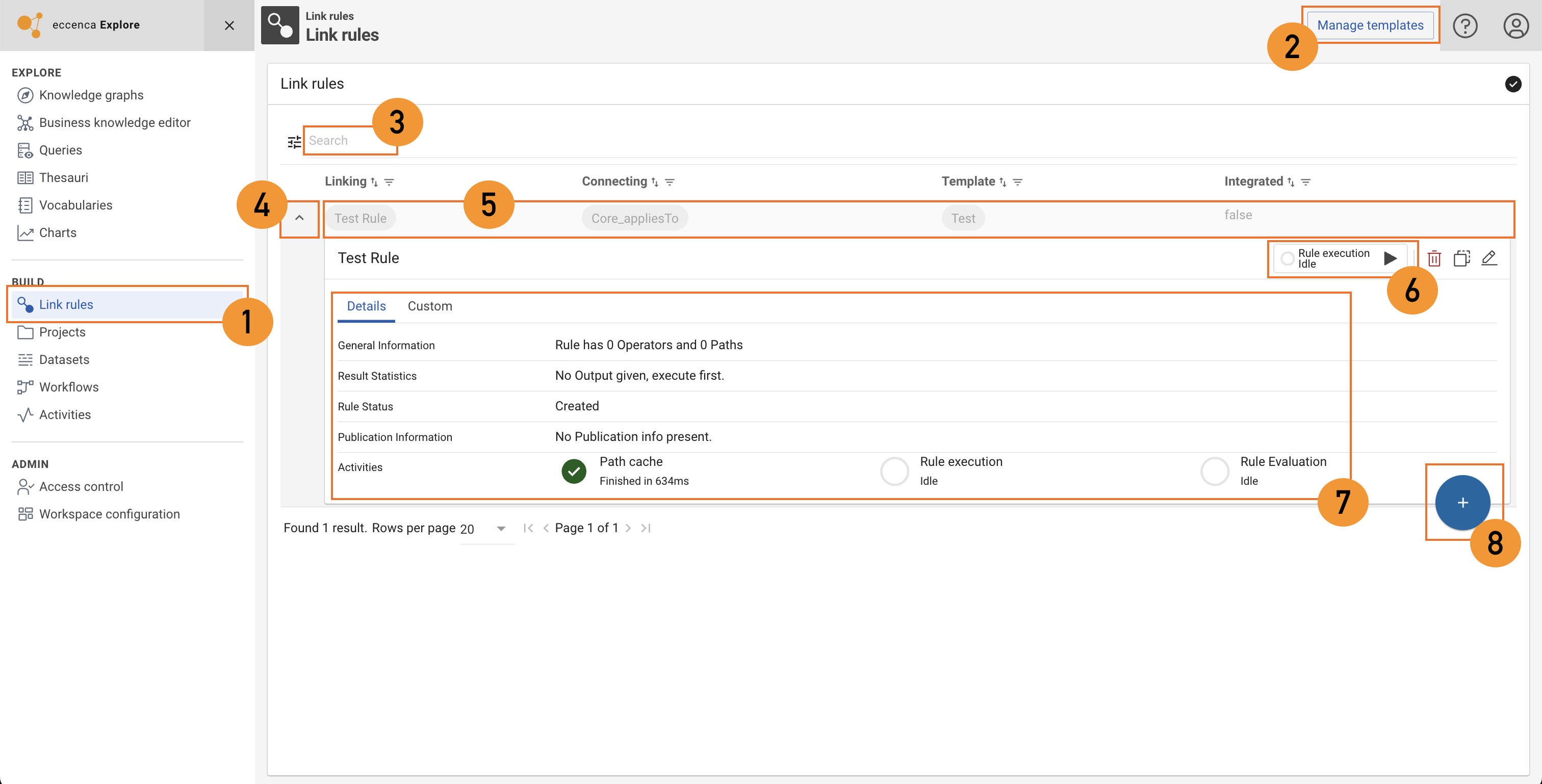

In the main navigation menu, under BUILD section, click Link rules (①). This opens the list of existing link rules.

Manage Templates (Optional)¤

If you want to work with predefined templates for link rules, click Manage Templates in the top right corner (②).

Use the Search field (③) to quickly locate an existing link rule by name or keyword in the description.

Expand or Collapse Rule Details¤

Click the toggler icon (④) next to a rule to expand or collapse its details.

In the Details tab (⑦), you’ll find:

  • General Information (operators, paths)
  • Result Statistics
  • Rule Status
  • Publication Information
  • Activities
  • The Custom tab contains any additional user-defined properties.

In the rule execution panel (⑥), you can Execute the rule, Delete the rule, Clone the rule, or Modify its configuration.

Click on the rule name in the Linking column (⑤) to open the link rule editor.

To create a new rule, click the blue button (⑧) in the bottom-right corner. Follow the prompts to define the template, connecting predicate, etc.

Setup¤

Template Catalog¤

Create a new graph that holds templates for Link Rules. The graph IRI will be needed for configuration later on.

Info

Suggestion for Template Catalog Graph IRI: https://ns.eccenca.com/data/linkruletemplates/. You may use this file as the graphs content. If you use cmemc you can run:

cmemc graph import CMEM_Link_Rule_Template_Catalog.ttl https://ns.eccenca.com/data/linkruletemplates/

Info

If there is no Shape for Link Rule Template load this file as a New Shape Catalog (Graph label: Link Rules Shape Catalog, Graph IRI: https://vocab.eccenca.com/shacl/link_rules/).

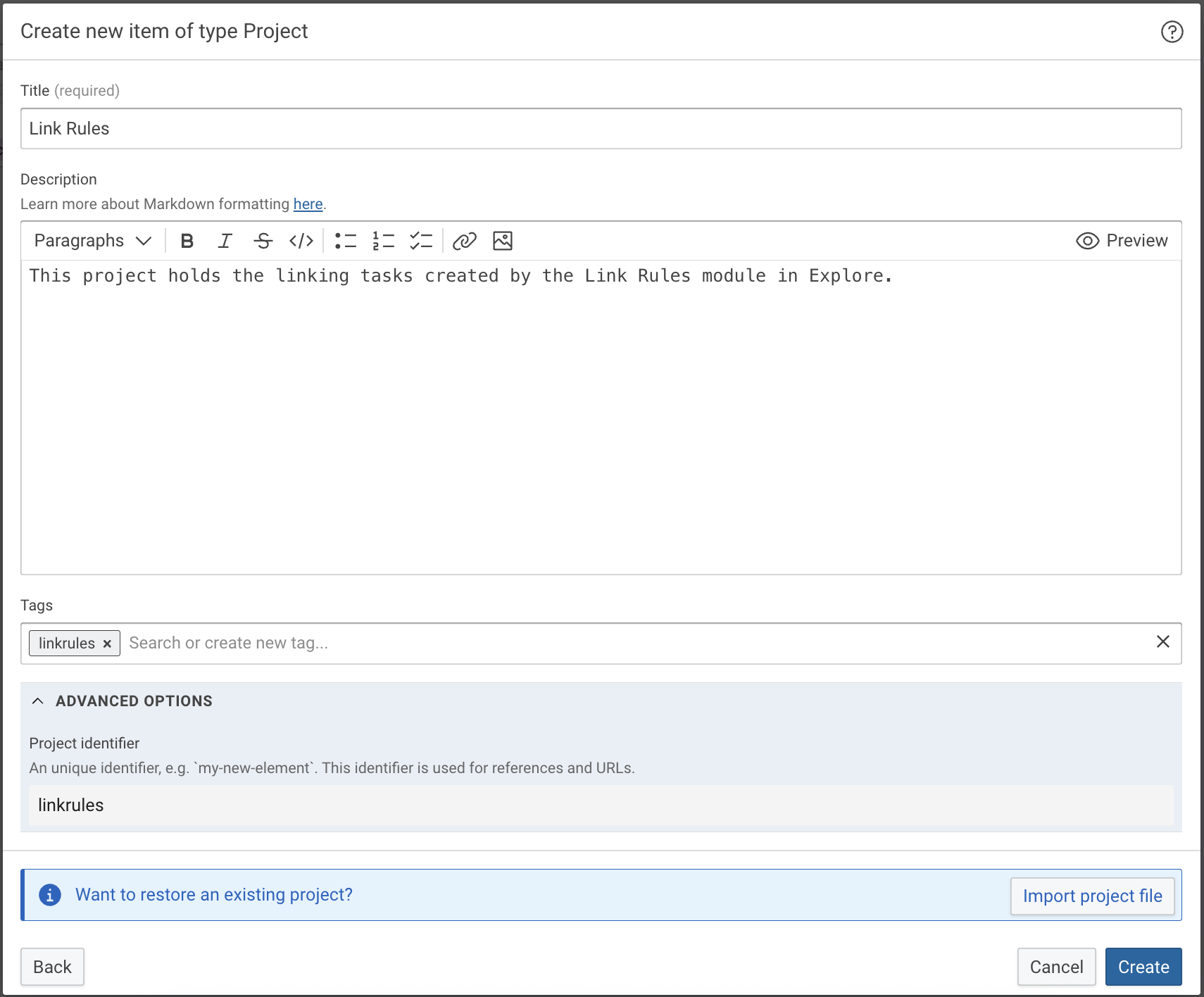

Create a new project in Build that holds all linking tasks created in the Link Rules module.

In the Advanced Options section set a Project Identifier as this needs to be configured in the next steps (we will be using linkrules in this example).

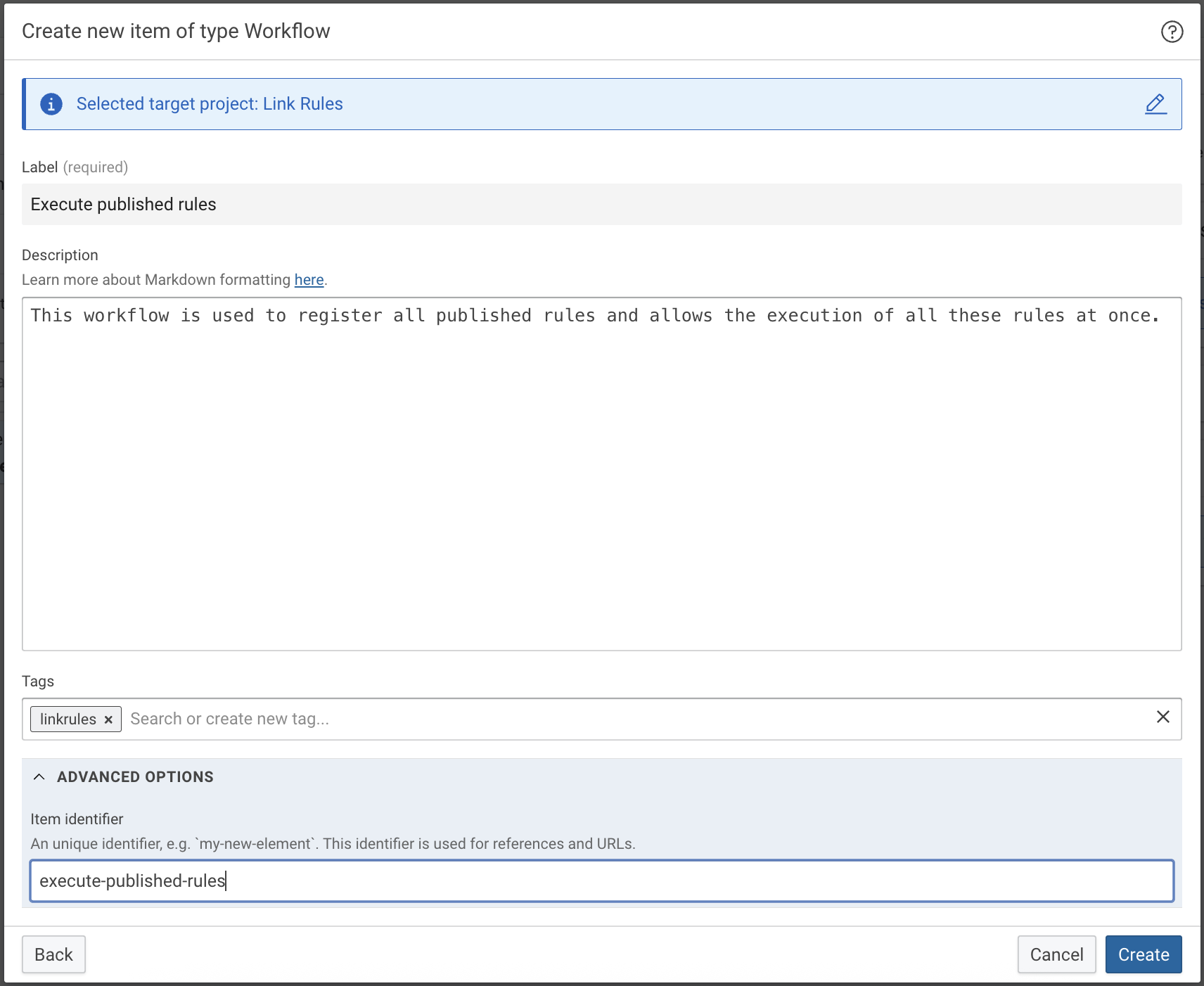

Inside this project create a new workflow that will be used to register all published rules, so that all these rules can be executed at once. Again it is recommended to set a Item Identifier as this needs to be configured in the next steps (we will be using execute-published-rules in this example).

Warning

This project is managed by the Link Rules module. You should not alter elements inside the project unless you know what you are doing.

Create Knowledge Graph Datasets used for Linking¤

Inside this project you need to create Knowledge Graph datasets for every graph that will be used in a linking rule (i.e., the source / target graphs that hold your resources to be linked).

Access condition¤

Create a dedicated access condition that allows respective users to execute link rules and write results to the output graphs of created link rules.

This access conditions is used by the Link Rules module to grant write access to the output graph whenever a new rule is created.

Info

It is currently not possible to set a Access Condition Identifier nor to simply retrieve the IRI of an existing access condition. Hence the admin needs to retrieve the IRI of this access condition from the CMEM Access Conditions graph.

In order to enable users to use the Link Rules Module, the following must be allowed (this can be granted in this rule or be defined separately):

  • Allow reading graph
    • Respective data graphs
  • Allow writing graph
    • CMEM DI Project Config graph of the “Link Rules” project
    • {IRI of the Link Rules project}-meta (e.g., http://di.eccenca.com/project/linkrules-meta according to the project identifier in this example)
  • Allowed action
    • Build - Workspace
    • Explore - Knowledge Graph Exploration
    • Explore - Link Rules Module
  • Graph pattern for granting write access
    • Pattern according to the Output Graph Template, e.g. http://eccenca.com/user_rules/result_*

Workspace configuration¤

Enable the Link Rules module.

In the following let us walk through the configuration options.

  • Order: The position of the Link Rules module in the menu.
  • Template Catalog IRI: The IRI of the template catalog we just created. As the name implies, the Template Catalog holds all templates for usage in the Link Rules module. Templates allow preselecting patterns for easier rule creation. (https://ns.eccenca.com/data/linkruletemplates/ in this example)
  • Project ID: The Project Identifier of the Link Rules Build project we just created. Link Rules will be managing this project and add the rules to it. To get the id of a project, open the project in the build component, select the project and choose ‘Show identifier’ in the context menu, in the top right. The project needs to have a workflow, which is used to execute the rules and has to be configured in this section. Furthermore, the projects needs one or more Datasets, which can be selected in the templates. (linkrules in this example)
  • Access Condition IRI: The IRI of the Access Condition we just created. Explore the CMEM Access Conditions graph to find the Access Condition rule and its respective IRI.
  • Published Rules Workflow ID: The Item Identifier of the workflow in the Link Rules Build project we just created.
  • Output Graph Template: A jinja template for the graph IRIs which will hold the results of a linking rule. It needs to include the placeholder {name}, for example http://eccenca.com/user_rules/result_{name}.
  • Publication Graph Template: A jinja template, that generates the IRI of the graph, into which the output graph is imported via an owl:imports. This can be a simple graph IRI, for example http://eccenca.com/user_rules/results_published.
  • Result Download Query (optional): A query that will be used to download the results of a linking rule. By default all resource IRIs will be listed as resource1 and resource2. Whenever you want to provide other data via the Download results function, such as a specific identifier or a label instead of the IRI, this query can be adapted here.
  • Annotation Class IRI (optional): Rule results can be enriched with annotations. Instances of this class can be selected in the link rules interface. Instances have both a connection to the rule and the result. The connection is defined by the Annotation Link Property IRI. The values of the annotation are defined by the Annotation Value Property IRI. This relation is materialized as rdf:value in the output graph upon execution.
  • Annotation Value Property IRI (optional): Values of sub-properties of this property are actually connected as rdf:values to the generated links of a rule.
  • Annotation Link Property IRI (optional): The connection between a rule and an annotation resource (i.e. instance of Annotation Class IRI) is defined by this property.
  • Annotation Graph IRI (optional): The IRI of the graph, from which instances of the Annotation Class IRI are selected.

When the configuration is saved the Link Rules module should appear in the Build section of the menu.

Templates can be managed at Link Rules module -> Manage Templates.

Create a new Link Rule Template. Such a template describes an abstract link rule with pre-defined settings.

  • Label: A mandatory label for the template.
  • Target Property: The (default) connecting property for the derived link rules. The property can be individually set for each link rule later on.
  • Input group: The datasets which hold the subjects (source) and objects (target) to link.
  • Source/Target Dataset: The dataset holding the resources to link.
  • Source/Target Resource Pattern: A filter description template for the resources to link. This is a JSON object as described in Graph Resource Pattern. When creating a Link Rule based on this template these resource patterns can be altered. So this template may remain simple, but should provide sufficient help for the end user to define a proper resource selection.
  • Output group: The dataset which will hold the Link Rule results.
  • Output Graph: The graph IRI where to write the Link Rule results. Available placeholders: {name} for the Link Rules name.
Graph Resource Pattern¤

This section specifies the JSON object used to provide a search filter configuration for source and target resources used for the Link Rule.

The source / target resources are always referred as variable a.

In the example below, resources are selected which are of type variable class and are referenced another resource named subResource by the property http://example.com/vocab/hasParent. The class variable is restricted to be one of http://example.com/vocab/Company or http://example.com/vocab/Department.

{
  "paths":[
    {
      "subjectVarName":"a",
      "predicate":"http://www.w3.org/1999/02/22-rdf-syntax-ns#type",
      "objectVarName":"class"
    },
    {
      "subjectVarName":"subResource",
      "predicate":"http://example.com/vocab/hasParent",
      "objectVarName":"a"
    }
  ],
  "pathFilters":[
    {
      "varname":"class",
      "varIsAnyOneOfResource":[
        "http://example.com/vocab/Company",
        "http://example.com/vocab/Department"
      ]
    }
  ]
}

In the paths section triple patterns are defined using subjectVarName, predicate, objectVarName.

The pathFilters section defines restrictions on the variables defined above. The following path filter properties can be used:

  • isNoneOfLiteral
  • isNoneOfResource
  • varIsAnyOneOfLiteral
  • varIsAnyOneOfResource
  • literalFilters
  • GreaterThan
  • LessThan
  • GreaterEqualsThan
  • LessEqualThan
  • NotEquals
  • Contains
  • Regex
