Scenario: Kubernetes Deployment¤

Introduction¤

This page describes the basic principles of installing Corporate Memory in a Kubernetes cluster with helm and kubectl. It will not explain the basic principles of Kubernetes or help in installing the required tools.

The code examples in this section assume that you have a POSIX-compliant shell (Linux, macOS, or WSL for Windows), a working KUBECONFIG, and a fully provisioned cluster.

Requirements¤

Access credentials for the eccenca infrastructre (e.g. Docker Registry) → contact us to get yours
A license for GraphDB
Kubectl
Helm
If deploying on K3D, download a static binary

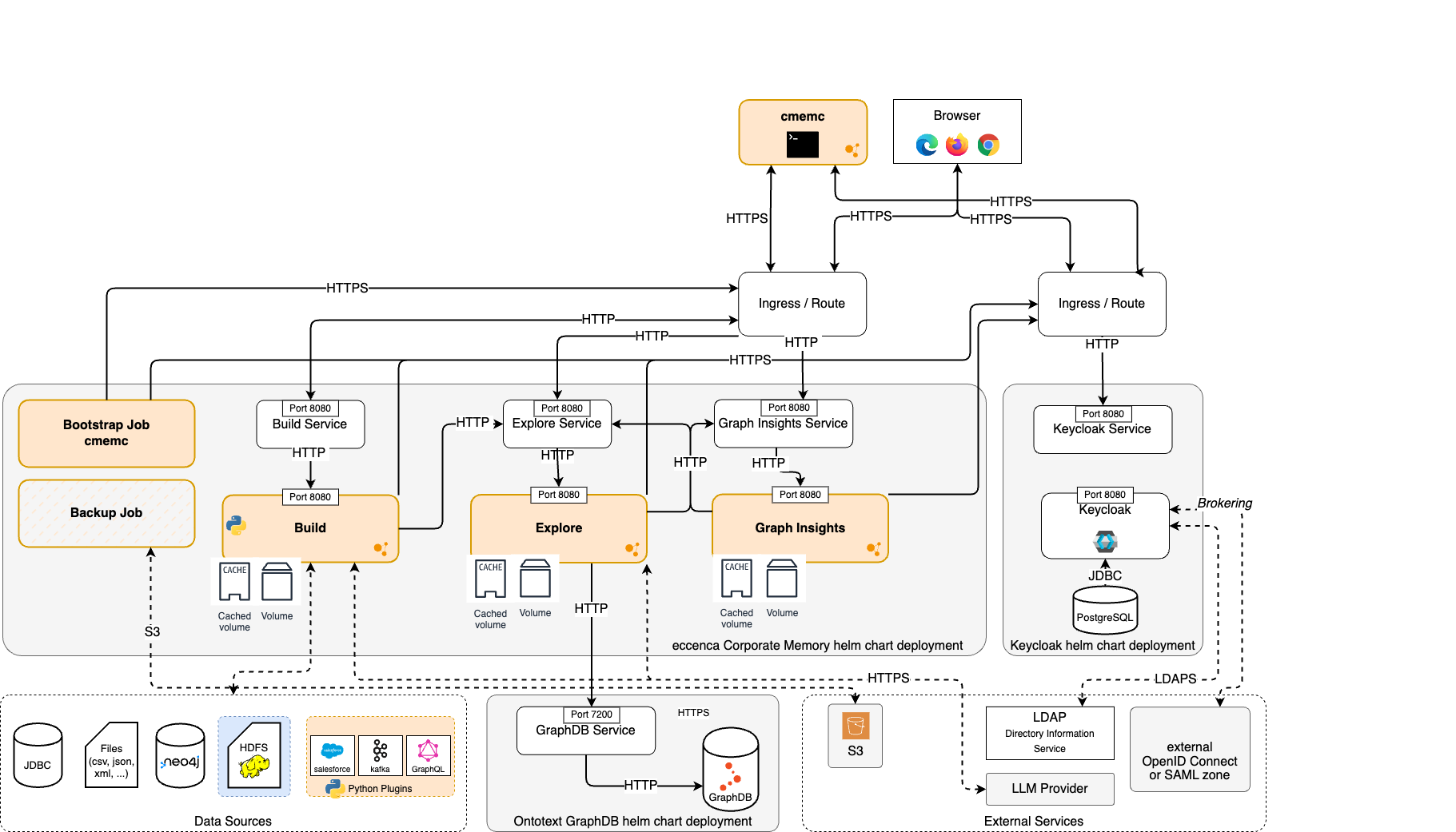

Architecture¤

General Notice¤

Although this document lists value files for the three charts, we suggest always looking at the default values.yaml file from the archive or repository. The examples shown here are very basic and should not represent a production environment. The CHANGELOG.md and README.md files in the archives or repositories can also give some insights.

We assume that the k8s namespaces are already created. You can either deploy all three components into one namespace or into separate ones.

kubectl create namespace graphdb
kubectl create namespace keycloak
kubectl create namespace cmem

GraphDB Installation¤

To install GraphDB, we will use the Ontotext Helm chart. You can get the source code from github. Additionally have a look at GraphDBs documentation page.

Be aware, that with Version 11 of GraphDB you are required to deploy a license file, even in the Free edition. You can aquire one by filling a form. See also the licensing documentation.

1. Obtain the chart¤

You can download the GraphDB chart from github or add their repository to your environment with helm:

helm repo add ontotext https://maven.ontotext.com/repository/helm-public/
helm repo update

2. Configuration¤

Create a file named graphdb-values.yaml to configure your GraphDB deployment. For a basic setup, you can start with an empty file and add configurations as needed. For production, you should configure persistence, resource limits, and any specific GraphDB settings. Download a basic example value file (graphdb-values.yaml).

Here is a minimal example that disables ingress and sets resources, persistence and security:

ingress:
  enabled: false

resources:
  limits:
    memory: 4Gi
    cpu: 2000m
  requests:
    memory: 4Gi
    cpu: 500m

license:
  # Reference to a secret containing 'graphdb.license' file that will be
  # mounted in the GraphDB pod. The value is processed as a Helm template.
  existingSecret: "graphdb-license"
  # File name of the GraphDB license file in the existing license secret.
  # The default is graphdb.license, but it can be changed to map
  # to a different secret key.
  licenseFilename: graphdb.license

security:
  enabled: true
  provisioningUsername: provisioner
  provisioningPassword: iHaveSuperpowers

persistence:
  enabled: true
  volumeClaimTemplate:
    name: "storage"
    spec:
      accessModes: [ "ReadWriteOnce" ]
      resources:
        requests:
          storage: 5Gi

3. Install the GraphDB chart¤

First, create the license secret as mentioned above. Then, install the GraphDB chart using helm:

kubectl --namespace graphdb create secret generic graphdb-license \
  --from-file graphdb.license

helm upgrade --install graphdb ontotext/graphdb \
  --namespace graphdb \
  -f graphdb-values.yaml

This will deploy GraphDB into the graphdb namespace.

4. Accessing GraphDB¤

To access the GraphDB user interface without exposing it via an Ingress, you can use kubectl port-forward. This is useful for initial setup and verification.

First, get the name of the GraphDB service:

kubectl get svc --namespace graphdb

Assuming the service is named graphdb, forward a local port to the service port (7200):

kubectl port-forward svc/graphdb 7200:7200 --namespace graphdb

Now you can access the GraphDB workbench in your browser at http://localhost:7200.

Keycloak Installation¤

This guide provides instructions on how to install Keycloak using the provided Helm chart.

1. Obtain the chart¤

We strongly recommend to download the chart and execute the install commands against a local environment.

wget https://helm.eccenca.com/keycloak/latest.tgz
tar -xzf latest.tgz

# this requires gitlab.eccenca.com access
git clone ssh://git@gitlab.eccenca.com:8101/devops/keycloak-helm.git

You can also use the helm package manger, but then you have to take care about restoring from a backup on your own. The mechanism for that is included in the chart, but the helm command requires you have the sql dump file on your local machine.

helm repo add --force-update eccenca https://helm.eccenca.com
helm repo update eccenca

2. Configuration¤

Create a file named keycloak-values.yaml to configure your Keycloak deployment. At a minimum, you should configure the initial admin credentials and the ingress settings. You can also download the minimum value file (keycloak-values.yaml).

---
postgres:
  internal: true
  provisioning:
    enabled: true
    # If true, this will drop the public schema and
    # re-provision the database on every start.
    force: true

ingress:
  enabled: true
  className: nginx
  annotations:
    cert-manager.io/common-name: "kc.docker.localhost"
  hosts:
    - host: "kc.docker.localhost"
      paths:
        - path: /auth
          pathType: Prefix
          serviceName: keycloak
          servicePort: 8080
  tls:
    - hosts:
         - "kc.docker.localhost"
      secretName:  keycloak-ingress-cert

You will also need to configure TLS, for example by using cert-manager. Please see the README.md file in the chart repository for explanations.

3. Install the Keycloak chart¤

Use helm to deploy the chart into the keycloak namespace.

With local extracted helm chart:

helm upgrade -i keycloak ./keycloak-helm \
  --namespace keycloak \
  -f keycloak-values.yaml

Or from helm repository:

helm upgrade --install keycloak eccenca/keycloak-helm \
  --namespace keycloak \
  -f keycloak-values.yaml

# if you use sqldump provisioning you have to restart keycloak:
kubectl --namespace keycloak delete pods/keycloak-0

This command will install the Keycloak chart in the keycloak namespace using your custom configuration. Be aware that the example tries to restore the database from a dump provided inside the chart. You can disable this if you like.

4. Accessing Keycloak¤

Once deployed, you can access the Keycloak user interface via the hostname you configured in your keycloak-values.yaml.

Release "keycloak" does not exist. Installing it now.
NAME: keycloak
LAST DEPLOYED: Mon Nov 17 22:54:46 2025
NAMESPACE: keycloak
STATUS: deployed
REVISION: 1
DESCRIPTION: Install complete
TEST SUITE: None
NOTES:
1. Get the application URL by running these commands:
  https://kc.docker.localhost/auth

Installation Corporate Memory¤

This guide provides instructions on how to install the chart using kubectl and helm. You need to have a keycloak instance and a supported graph database installed.

1. Obtain the chart¤

wget https://releases.eccenca.com/cmem-helm/latest.tgz
tar -xzf latest.tgz
cd cmem

helm repo add --force-update cmem-helm https://helm.eccenca.com
helm repo update cmem-helm

# this requires gitlab.eccenca.com access
git clone https://gitlab.eccenca.com/cmem/cmem-helm.git

2. Configuration¤

By default, Corporate Memory is subject to the eccenca free Personal, Evaluation and Development License Agreement (PEDAL), a license intended for non-commercial usage.

If you have a dedicated license file, create a secret with a license.asc data entry:

kubectl create secret generic cmem-license \
  --from-file license.asc
  --namespace cmem

Then, add the secret name to your values.yaml file for the key global.license.

To configure your Corporate Memory deployment, create a file named cmem-values.yaml. At a minimum, you should configure the

hostname, under which the deployment is reachable later
cmemClientSecret, if you use the postgres provisioning dump the default is fine
keycloakBaseUrl / keycloakIssuerUrl, where keycloak and the realm can be found
explore.store.graphdb-values as database connection
ingress-values like host and tls.secretName, if you use certmanager.

You can also download the minimum value file (cmem-values.yaml).

Edit cmem-values.yaml and adjust the configuration to your needs.

ingress:
  enabled: true
  className: nginx
  annotations:
    cert-manager.io/cluster-issuer: <cluster-issuer-if-present>
  hosts:
    - host: "<your-cmem-hostname>"
      paths:
        - path: /
          pathType: Prefix
          serviceName: explore
          servicePort: 8080
        - path: /dataintegration
          pathType: Prefix
          serviceName: dataintegration
          servicePort: 8080
  tls:
    - hosts:
         - "<your-cmem-hostname>"
      secretName:  cmem-ingress-cert

global:
  protocol: "https"
  cmemClientId: cmem-service-account
  cmemClientSecret: c8c12828-000c-467b-9b6d-2d6b5e16df4a
  hostname: "<your-hostname>"
  keycloakBaseUrl: https://<your-keycloak-hostname>/auth/
  keycloakIssuerUrl: https://<your-keycloak-hostname>/auth/realms/cmem

  # (if license secret was created)
  # license: cmem-license

explore:
  store:
    graphdb:
      enabled: true
      repository: cmem
      user: provisioner
      password: "iHaveSuperpowers"
      host: "<your-graphdb-hostname>"
      sslEnabled: false

(Optional) Graph Insights¤

Setting up Graph Insights in Kubernetes deployment done with helm is described in our documentation for Graph Insights.

3. Install the Corporate Memory chart¤

To pull the Corporate Memory images, you need to provide credentials for the eccenca Docker Registry.

kubectl create secret docker-registry eccenca-docker-registry-credentials \
  --docker-server=https://docker-registry.eccenca.com \
  --docker-username=<your-docker-username> \
  --docker-password=<your-docker-password> \
  --namespace cmem

Replace the placeholders with the provided registry details and credentials.

Now use helm to deploy the chart. This command will install the chart in the specified namespace using your custom configuration.

# In case you have the chart or repostiory locally available
helm upgrade --install cmem . \
  --namespace cmem \
  -f cmem-values.yaml

# or use our helm repository
helm upgrade --install cmem cmem-helm/cmem \
  --namespace cmem \
  -f cmem-values.yaml

4. Verify the installation¤

After the installation is complete, you can check the status of the pods:

kubectl get pods --namespace cmem

You can also check the rollout status of the StatefulSets:

kubectl rollout status statefulset/explore --namespace cmem
kubectl rollout status statefulset/dataintegration --namespace cmem
