Lift data from JSON and XML source

Introduction

This tutorial shows how you can build a Knowledge Graph based on input data from hierarchical sources like a JavaScript Object Notation file (.json) or an Extensible Markup Language file (.xml).

Tutorial

The complete tutorial is available as a Marketplace Package. You can install this package

• by using the web interface ( Packages → Search → “Product Data Demo”) or

• by using the command line interface

  cmemc -c my-cmem package install ecc-product-data-project


Sample Material

The following material is used in this tutorial:

• Sample vocabulary describing the data in the JSON and XML files: products_vocabulary.nt



• Sample JSON file: services.json

  [
      {
          "Price": "748,40 EUR",
          "ProductManager": "Lambert.Faust@company.org",
          "Products": "O491-3823912, I965-1821441, Z655-3173353, ...",
          "ServiceID": "Y704-9764759",
          "ServiceName": "Product Analysis"
      },
      {
          "Price": "1082,00 EUR",
          "ProductManager": "Corinna.Ludwig@company.org",
          "Products": "Z249-1364492, L557-1467804, C721-7900144, ...",
          "ServiceID": "I241-8776317",
          "ServiceName": "Component Confabulation"
      },
      ...
  ]


• Sample XML file: orgmap.xml

  <orgmap>
      <dept id="73191" name="Engineering">
          <manager>
              <email>Thomas.Mueller@company.org</email>
              <name>Thomas Mueller</name>
              <address>Karl-Liebknecht-Straße 885, 82003 Tettnang</address>
              <phone>+49-8200-38218301</phone>
          </manager>
          <employees>
              <employee>
                  <email>Corinna.Ludwig@company.org</email>
                  <name>Corinna Ludwig</name>
                  <address>Ringstraße 276</address>
                  <phone>+49-1743-24836762</phone>
                  <productExpert>Memristor, Gauge, Encoder</productExpert>
              </employee>
              <employee>
                  <email>Karen.Brant@company.org</email>
                  <name>Karen Brant</name>
                  <address>Friedrichstraße 664, 30805 Willich</address>
                  <phone>(00530) 5040048</phone>
                  <productExpert>Inductor</productExpert>
              </employee>
              ...
          </employees>
          <products>
              <product id="Z249-1364492" />
              <product id="O184-6903943" />
              <product id="V404-9975399" />
              <product id="F344-7012314" />
              <product id="N463-8050264" />
              <product id="M605-5951566" />
              <product id="N733-1946687" />
          </products>
          <services>
              <service id="I241-8776317" />
              <service id="D215-3449390" />
          </services>
      </dept>
      <dept id="22183" name="Product Management">
          ...
      </dept>
      ...
  </orgmap>


1 Install the required Ontologies / Vocabularies

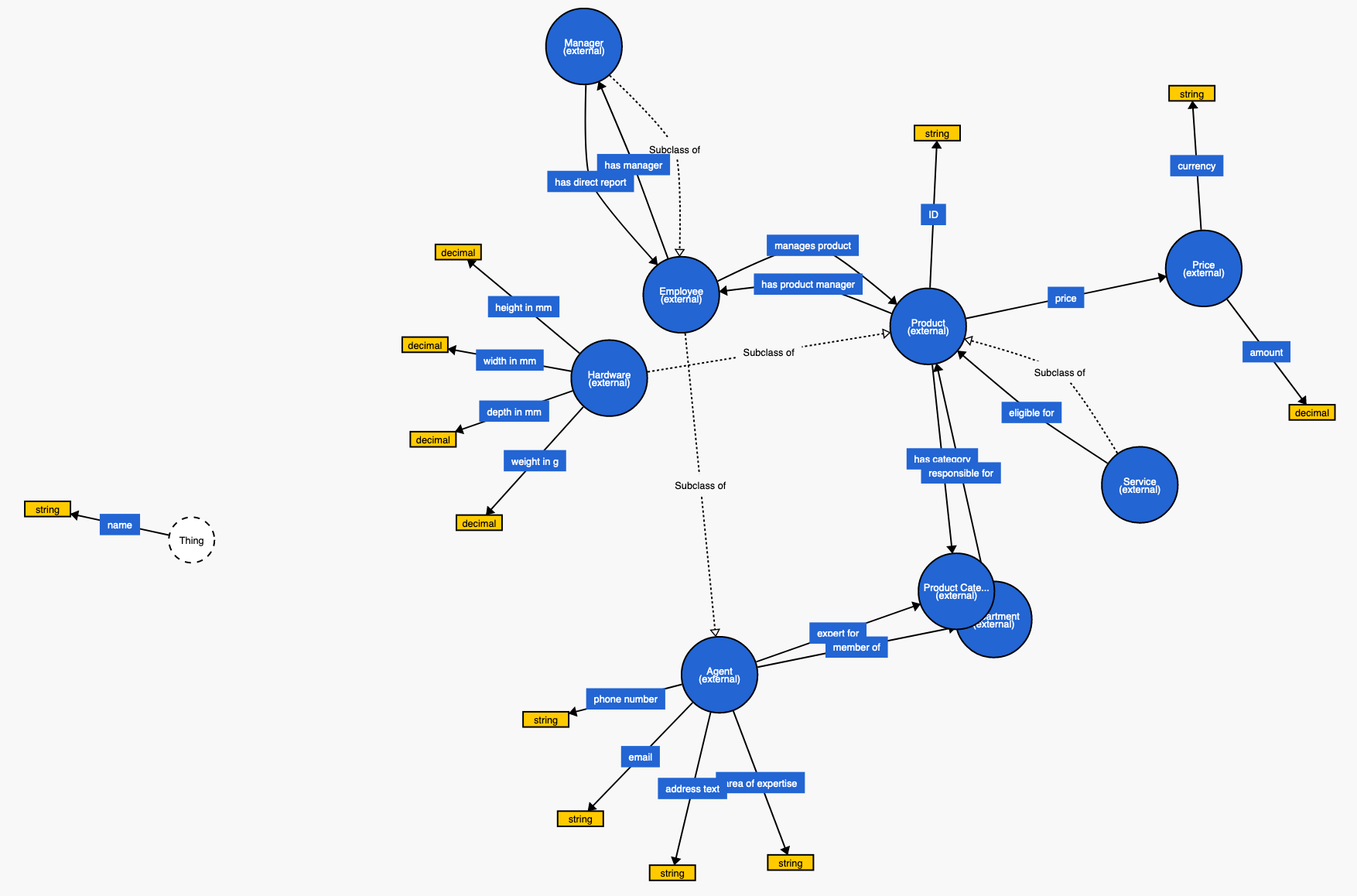

The vocabulary contains the classes and properties needed to map the data into the new structure in the Knowledge Graph.

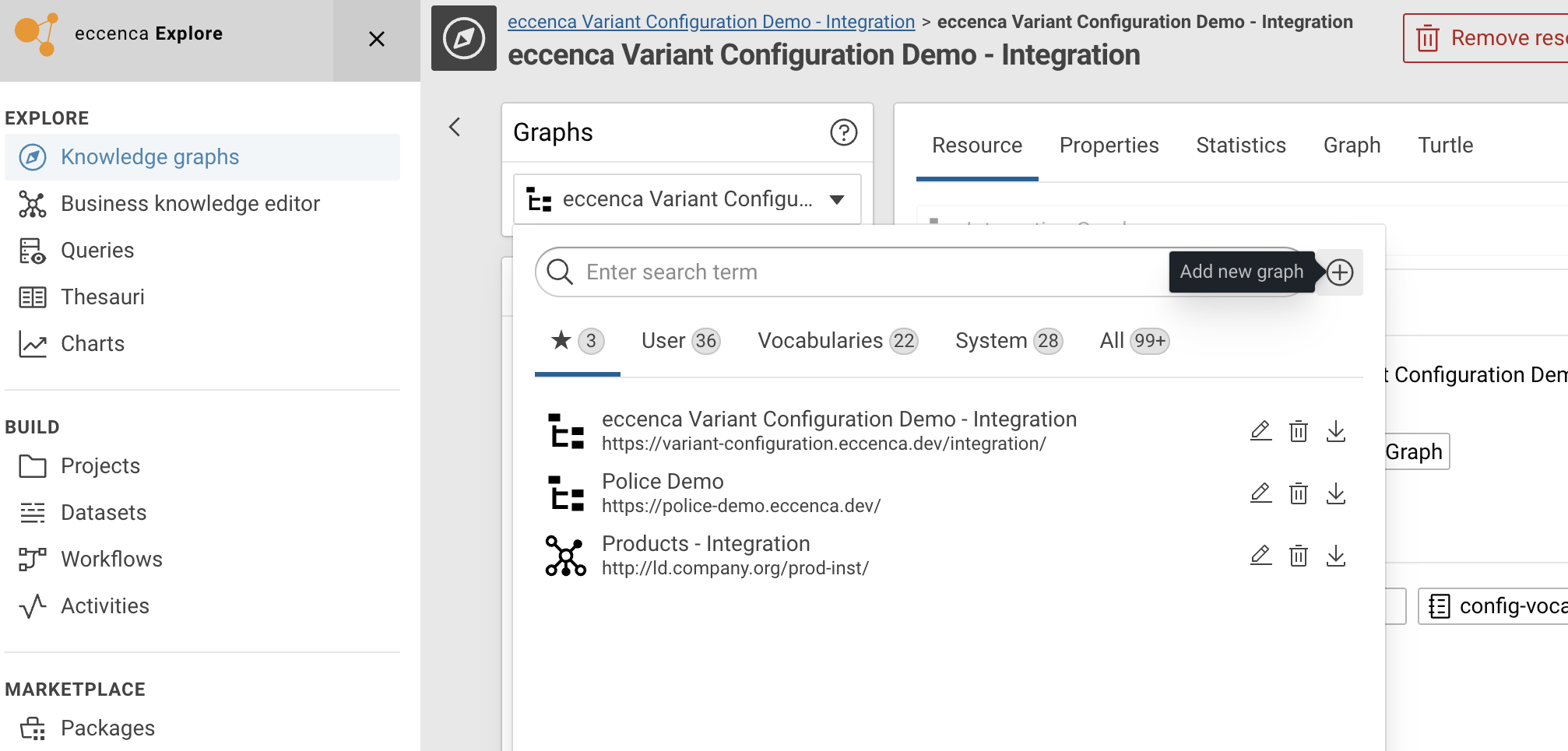

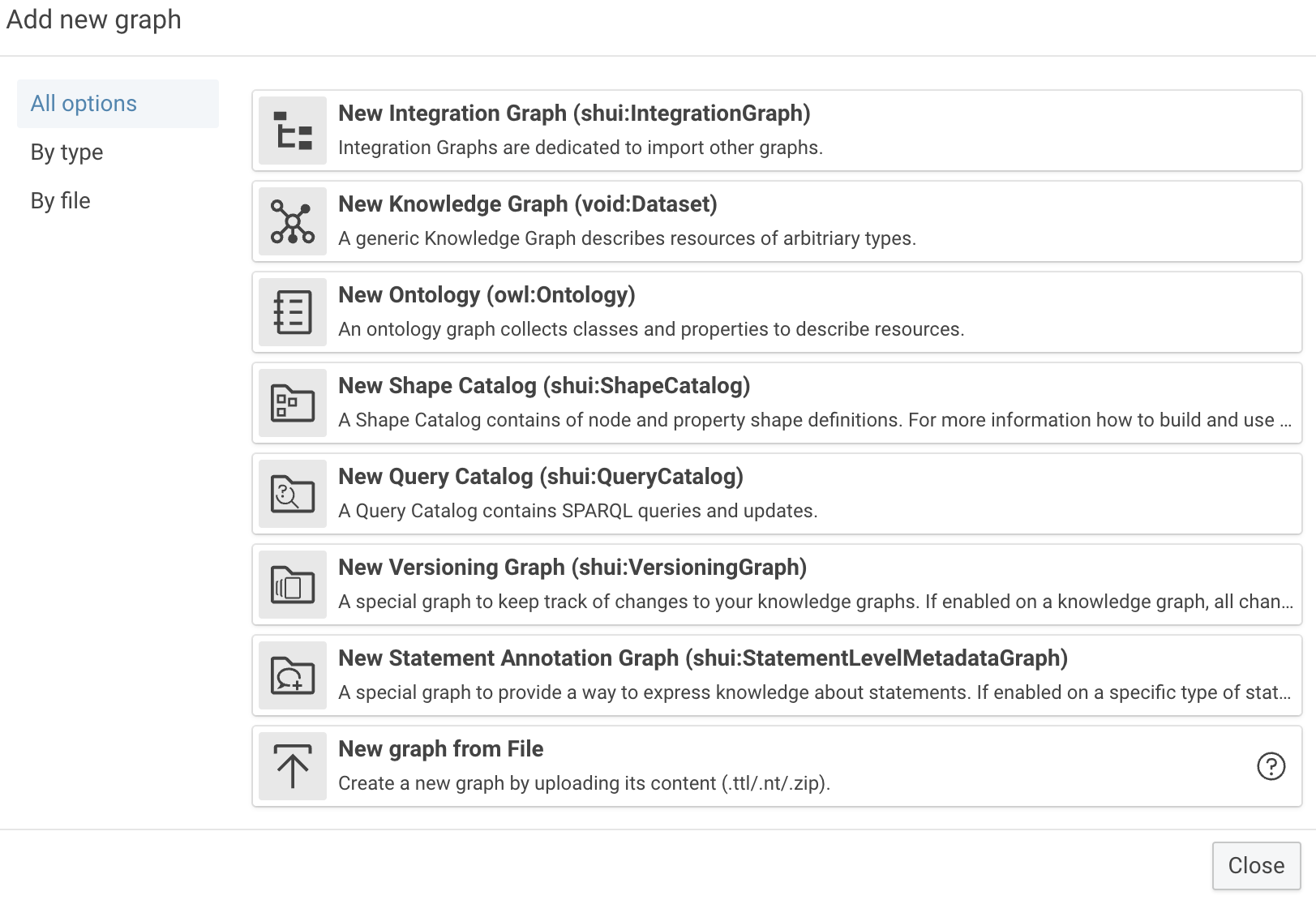

1. Click the Knowledge graphs icon in the main menu under EXPLORE. In the Graphs drop-down, click Add new graph and select the New graph from File option.

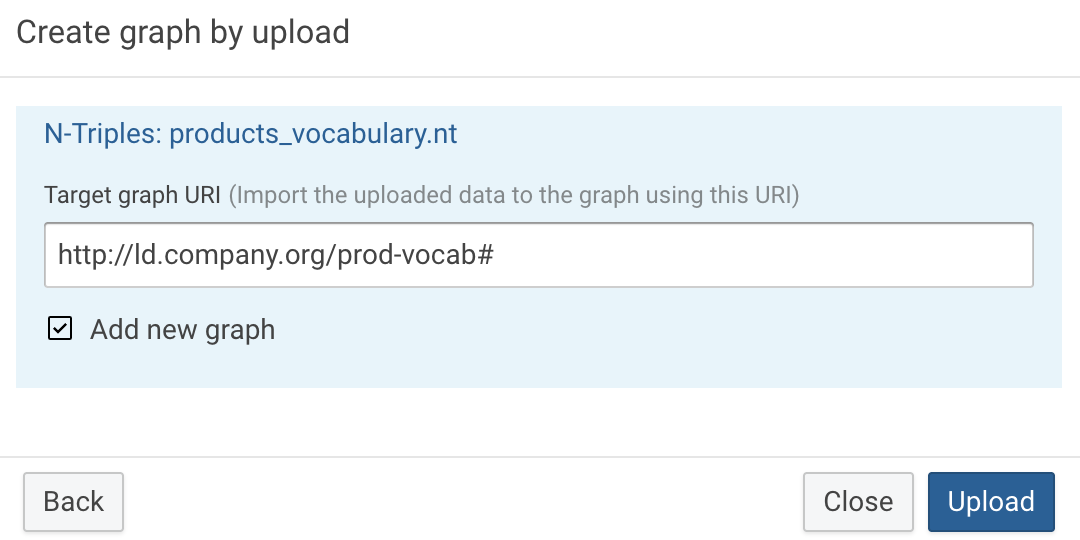

2. In the next step, select the RDF file via browse or add it via drag-and-drop. Define the Target graph URI (should be populated automatically as http://ld.company.org/prod-vocab/ as derived from the uploaded file) and confirm to add / replace this graph in the final dialog step. Tick the Add new graph checkbox and click Upload.



2 Uploading of the data (file)

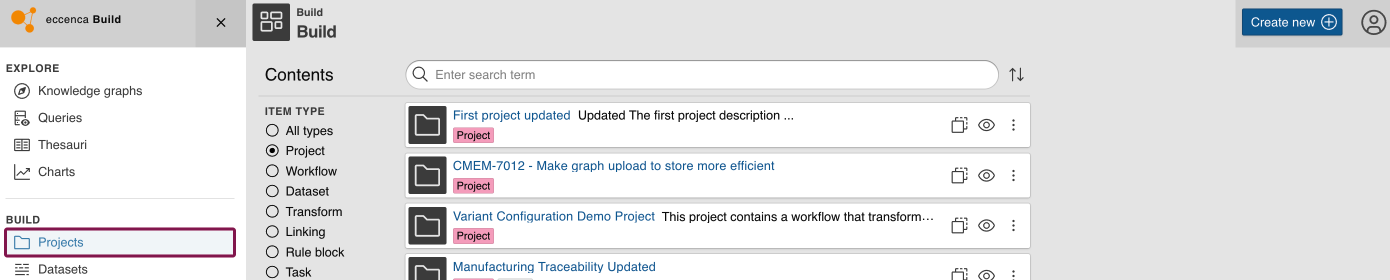

1. Click the Projects icon in the main menu under the BUILD section. Then click on Create new in the top right corner to create a new project.

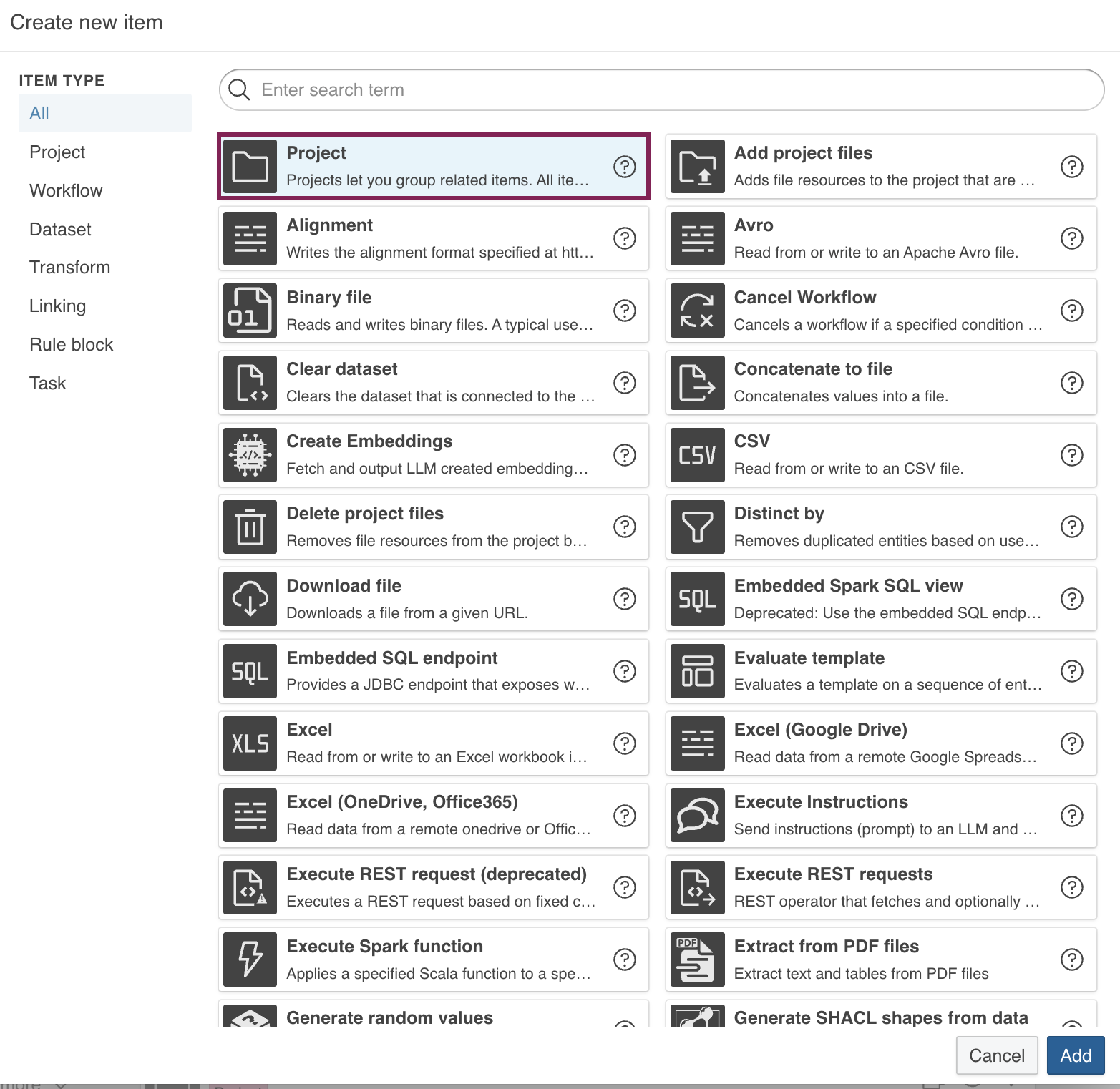

2. In the Create new item window, select Project and click Add. The Create new item of type Project window appears.

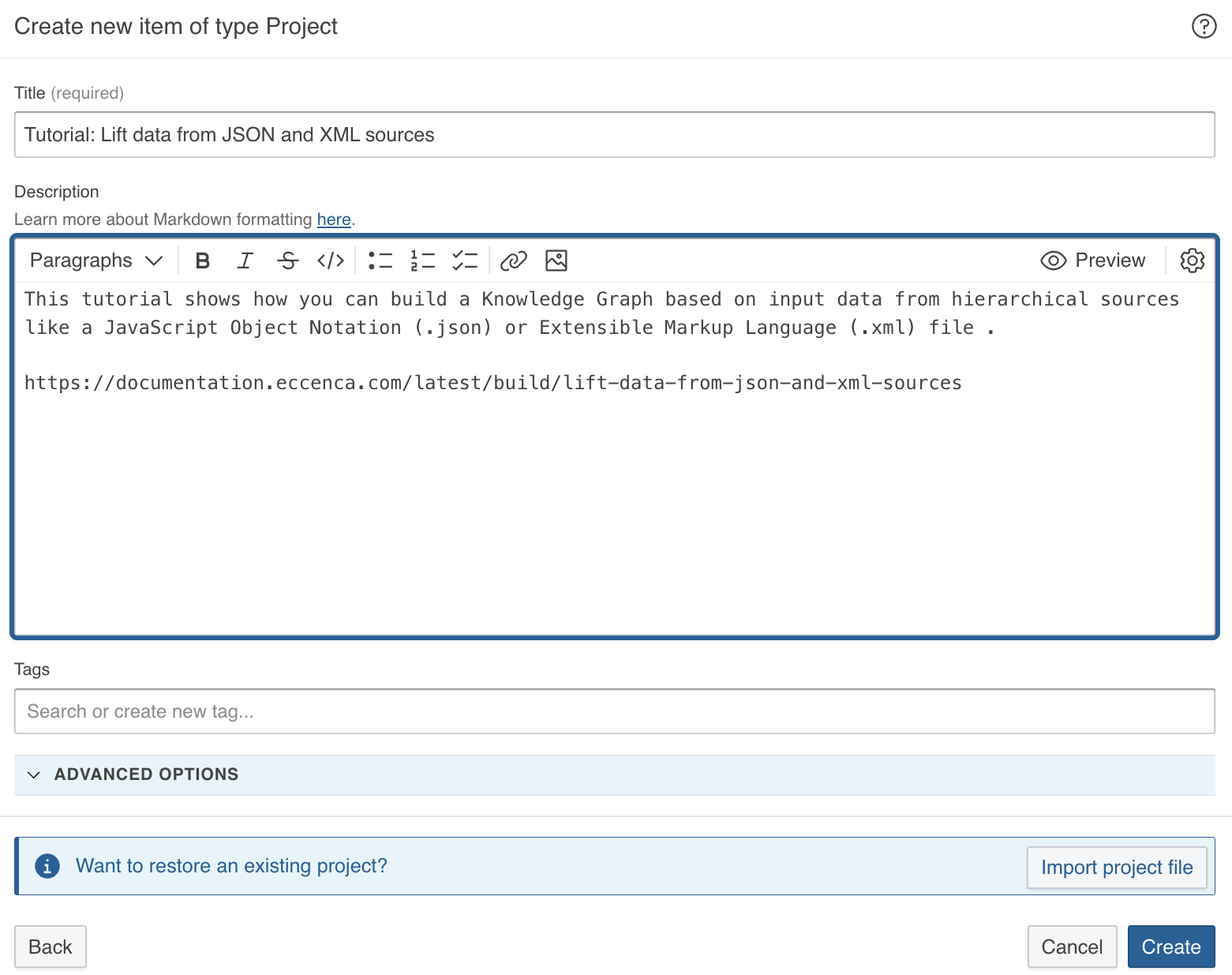

3. Fill in the required details such as Title and Description. In this example we will use:

   • Title: Tutorial: Lift data from JSON and XML sources
   • Description: This tutorial shows how you can build a Knowledge Graph based on input data from hierarchical sources like a JavaScript Object Notation (.json) or Extensible Markup Language (.xml) file. https://documentation.eccenca.com/latest/build/lift-data-from-json-and-xml-sources



4. Click Create. Your project is created.

3 Create a new dataset

Follow the steps below for adding JSON and XML datasets.

JSONXML

1. Click again on Create new in the top right corner to create a new JSON dataset. Select Dataset on the left, then select JSON and click Add.



2. Define a Label (in this example we use JSON Services), for the dataset, pick Upload new file and upload the services.json file. You can leave all the other fields at default values.



3. Click Create.

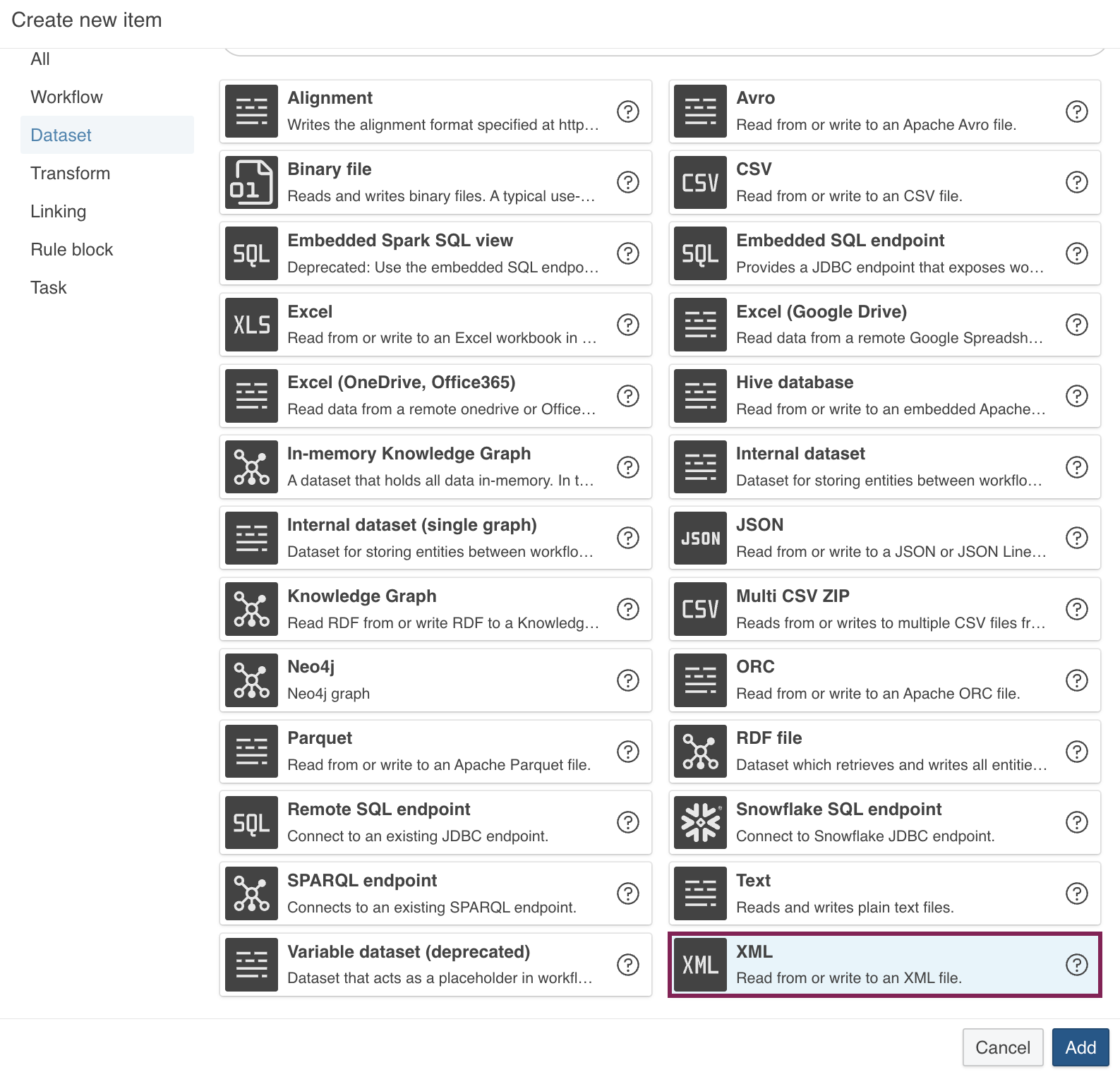

1. Click again on Create new in the top right corner to create a new XML dataset. Select Dataset, then select XML and click Add.

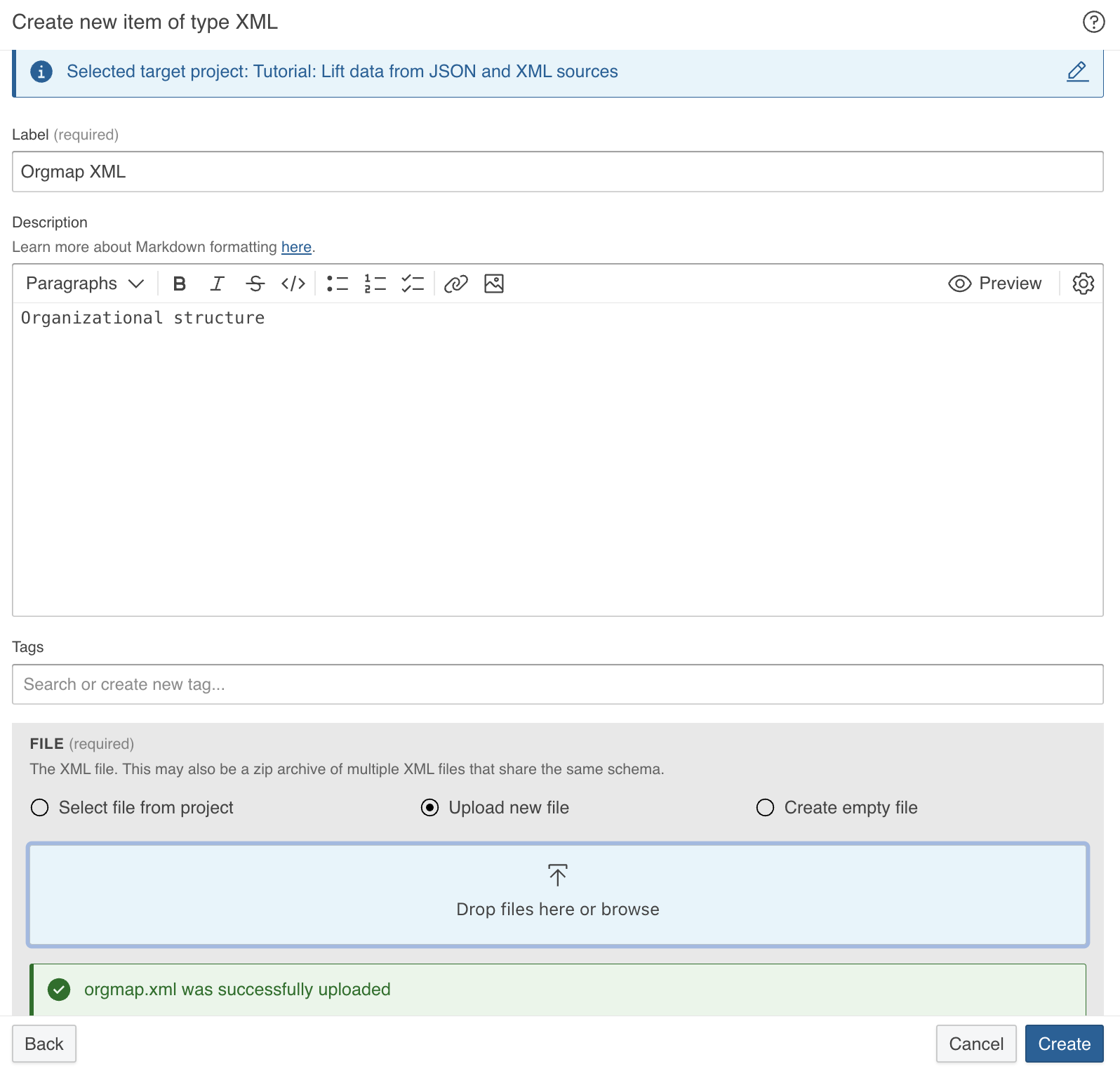

2. Define a Label (in this example we use Orgmap XML) for the dataset, pick Upload new file and upload the orgmap.xml example file. You can leave all the other fields at default values.



3. Click Create.

4 Create a Knowledge Graph

1. Click on Create new in the top right corner to create a new Knowledge Graph.

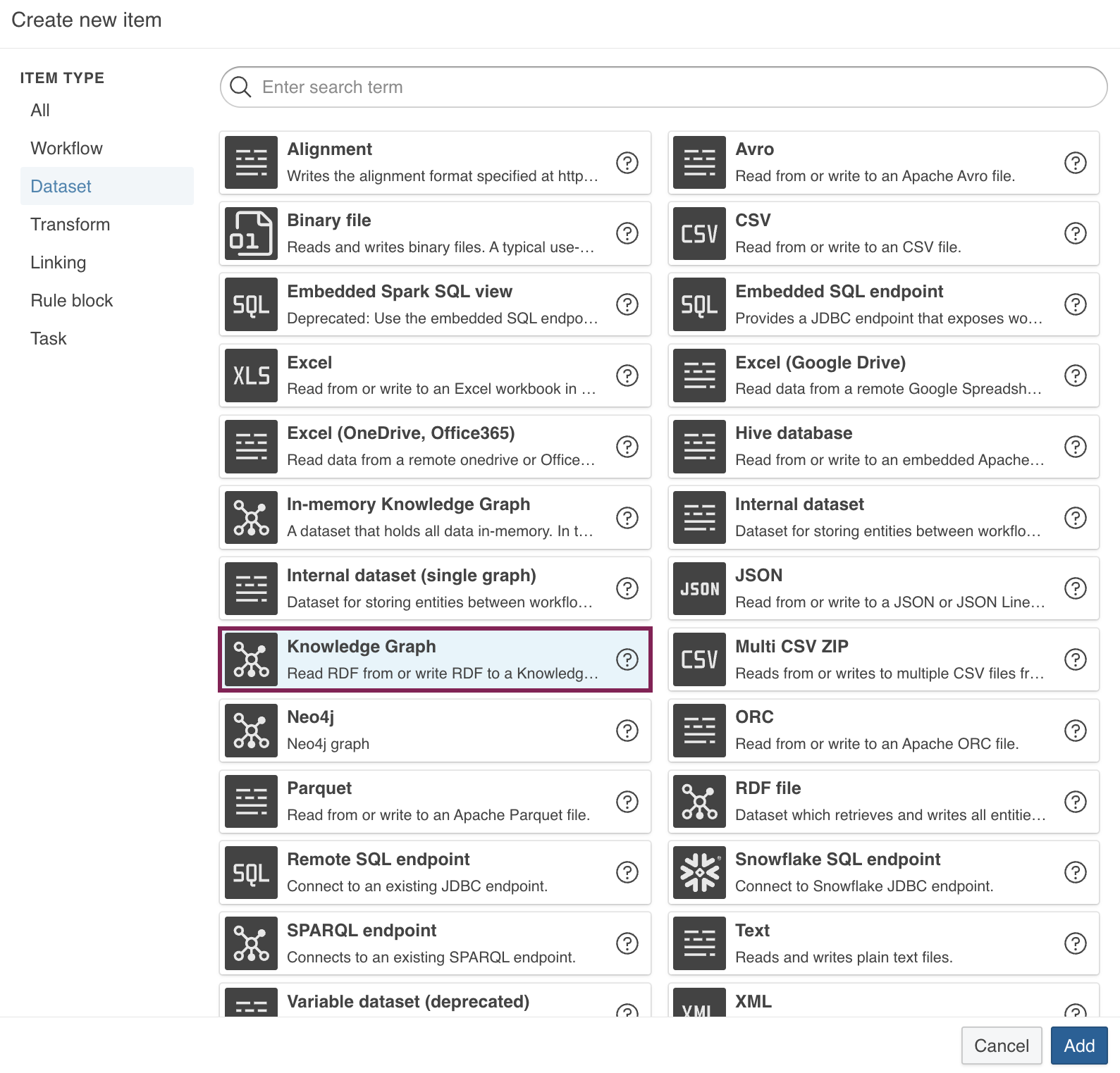

2. In Create new item window, select Dataset, then select Knowledge Graph and click Add.



3. Fill in the required details such as Label and Description.

   JSONXML

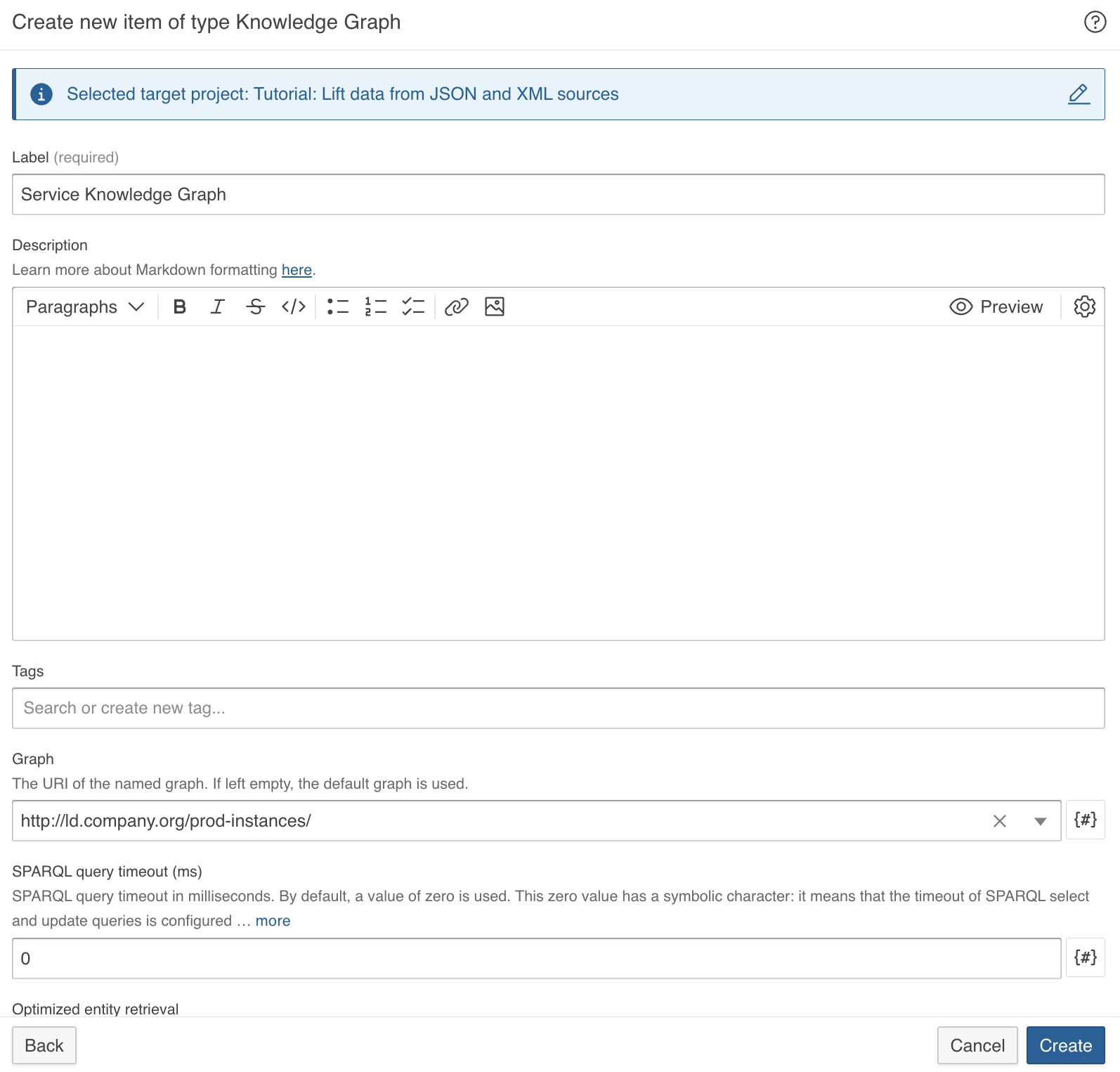

   Define a Label for the Knowledge Graph and provide Graph uri. You can leave all the other fields at default values. In this example we use:

   • Name: Service Knowledge Graph
   • Graph: http://ld.company.org/prod-instances/

   After typing the Graph URI you must click the Custom entry: ‘…’ suggestion. Typing alone leaves it unset.



   Click Create.

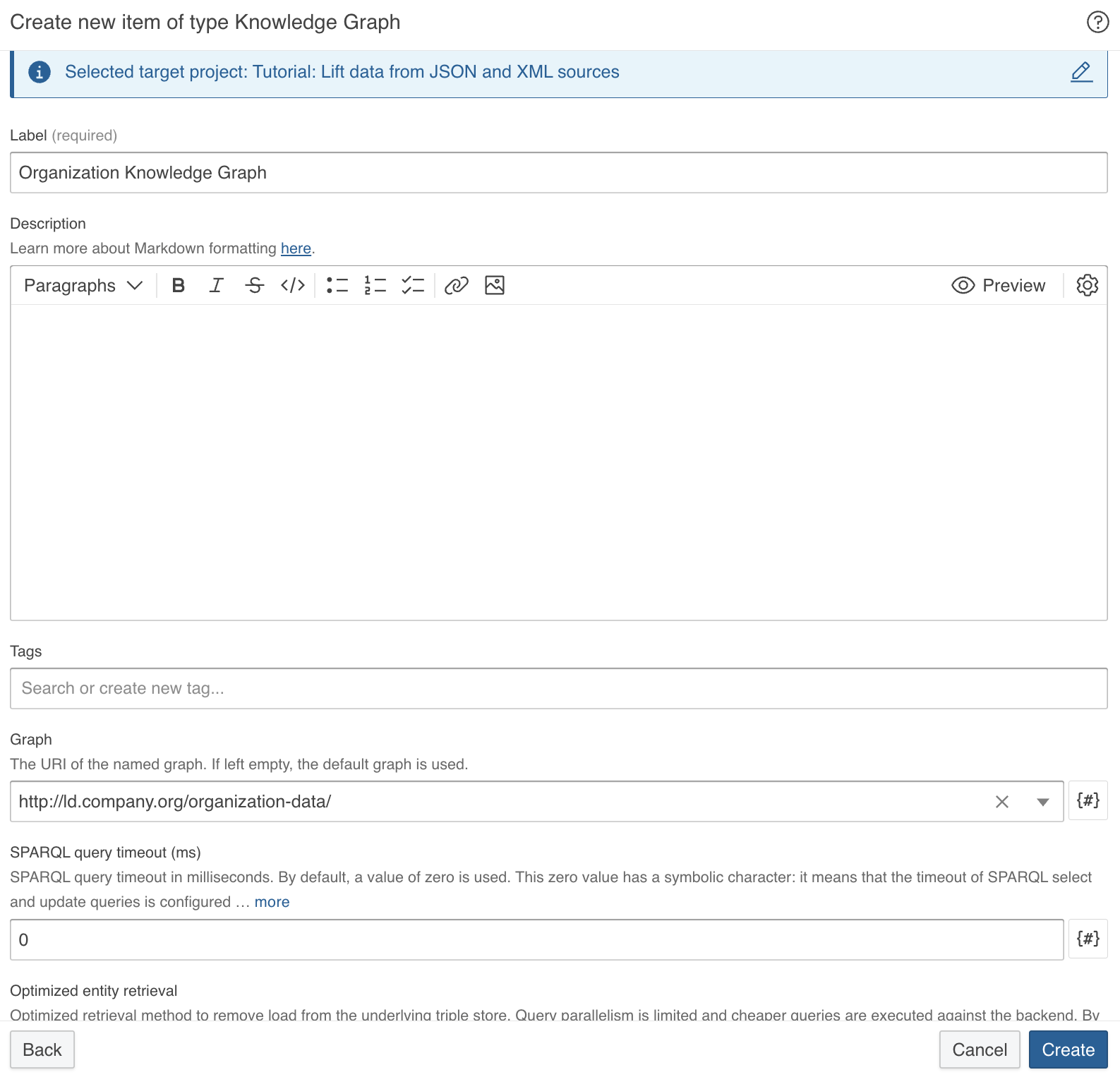

   Define a Label for the Knowledge Graph and provide Graph uri. You can leave all the other fields at default values. In this example we will use:

   • Name: Organization Knowledge Graph
   • Graph: http://ld.company.org/organization-data/

   After typing the Graph URI you must click the Custom entry: ‘…’ suggestion. Typing alone leaves it unset.



   Click Create.

5 Create a Transformation

The transformation defines how an input dataset (e.g.: JSON or XML) will be transformed into an output dataset (e.g.: Knowledge Graph).

1. Click Create in your project.

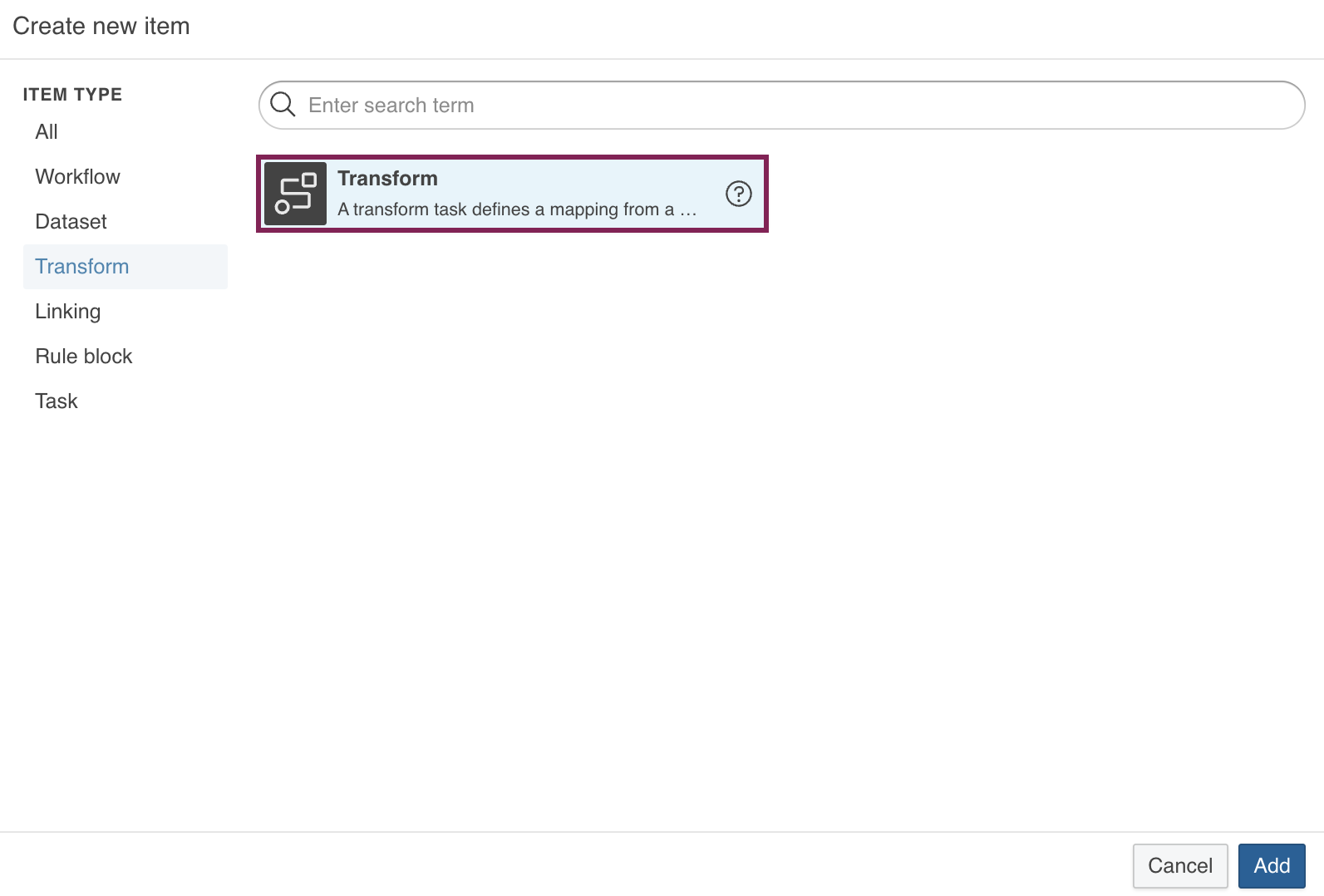

2. On the Create New Item window, select Transform and click Add to create a new transformation.



3. In the Create new item of type Transform window, enter the required fields.

   JSONXML

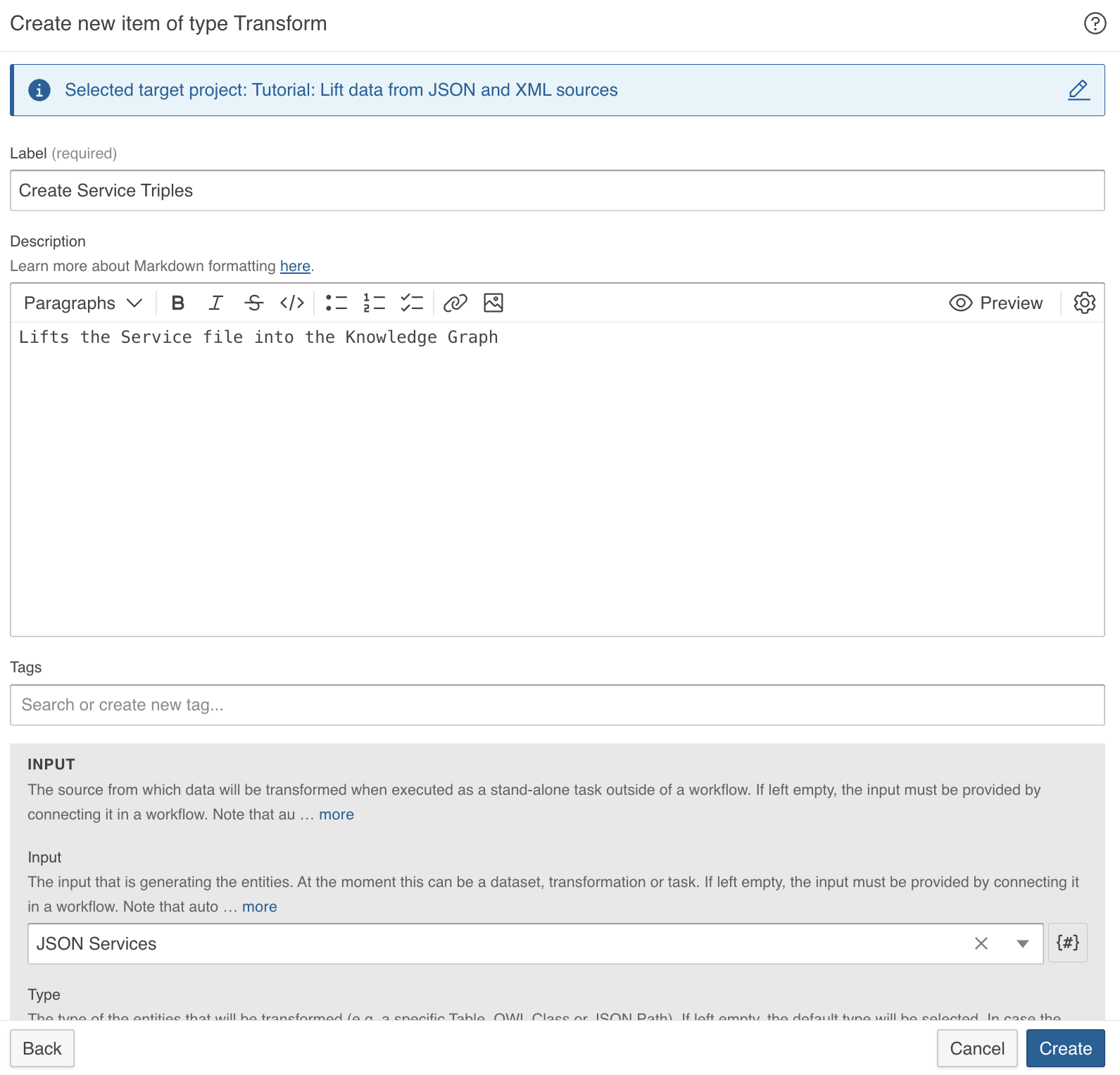

   For this example, enter the following:

   • Name: Create Service Triples
   • (optional) Description: Lifts the Service file into the Knowledge Graph
   • Select the Source Dataset: JSON Services
   • Select the Output Dataset: Service Knowledge Graph



   Click Create.

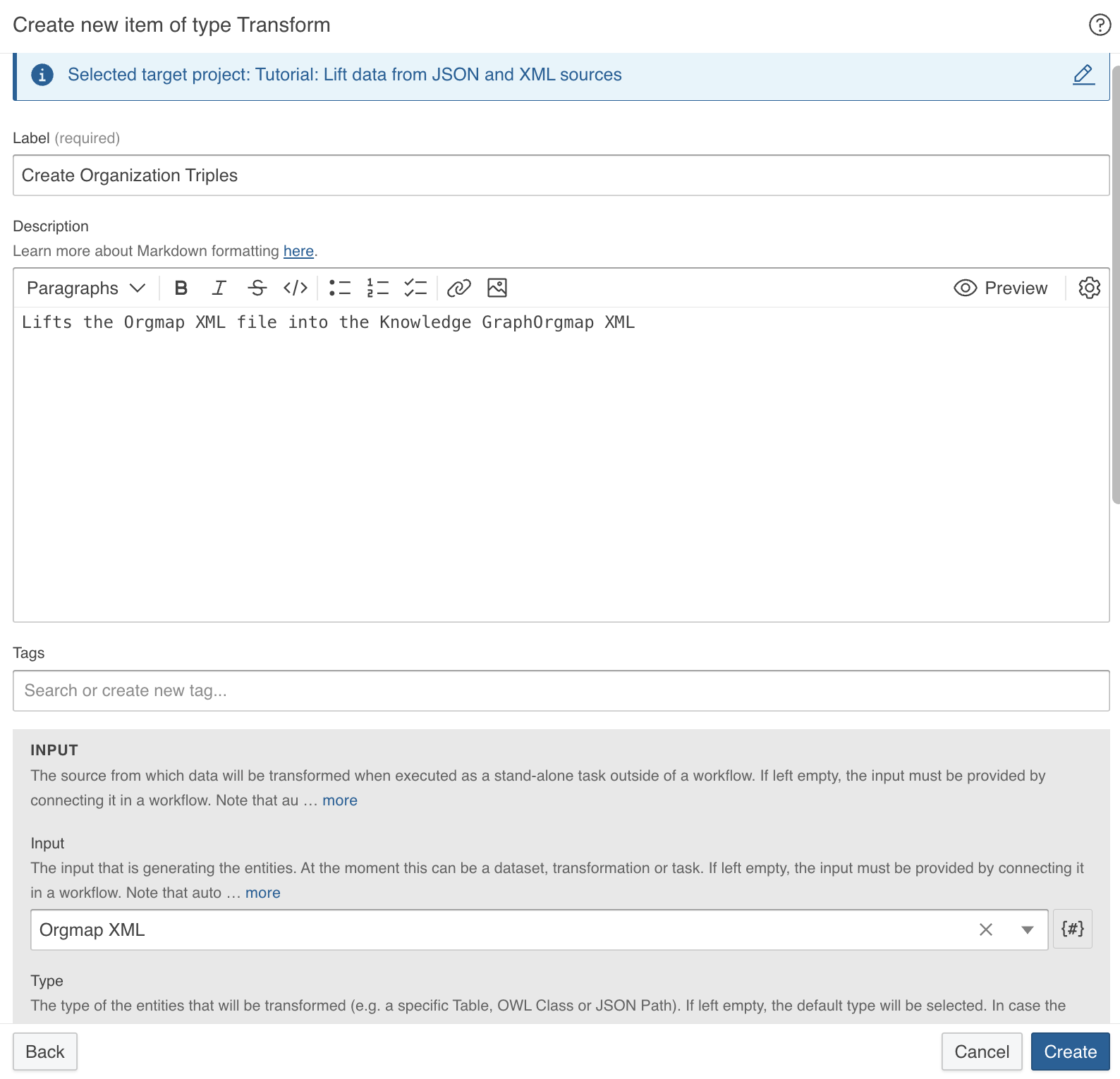

   For this example, enter the following:

   • Name: Create Organization Triples
   • (optional) Description: Lifts the Orgmap XML file into the Knowledge Graph
   • Select the Source Dataset: Orgmap XML
   • Type: dept (define the Source Type, which defines the XML element that should be iterated when creating resources)
   • Select the Output Dataset: Organization Knowledge Graph



   Click Create.

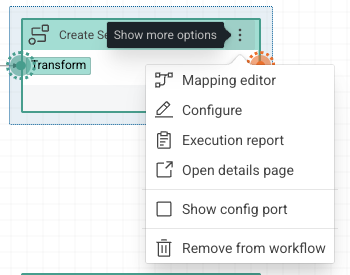

4. Expand the Mapping menu by clicking the arrow on the right side of the page to expand the menu.

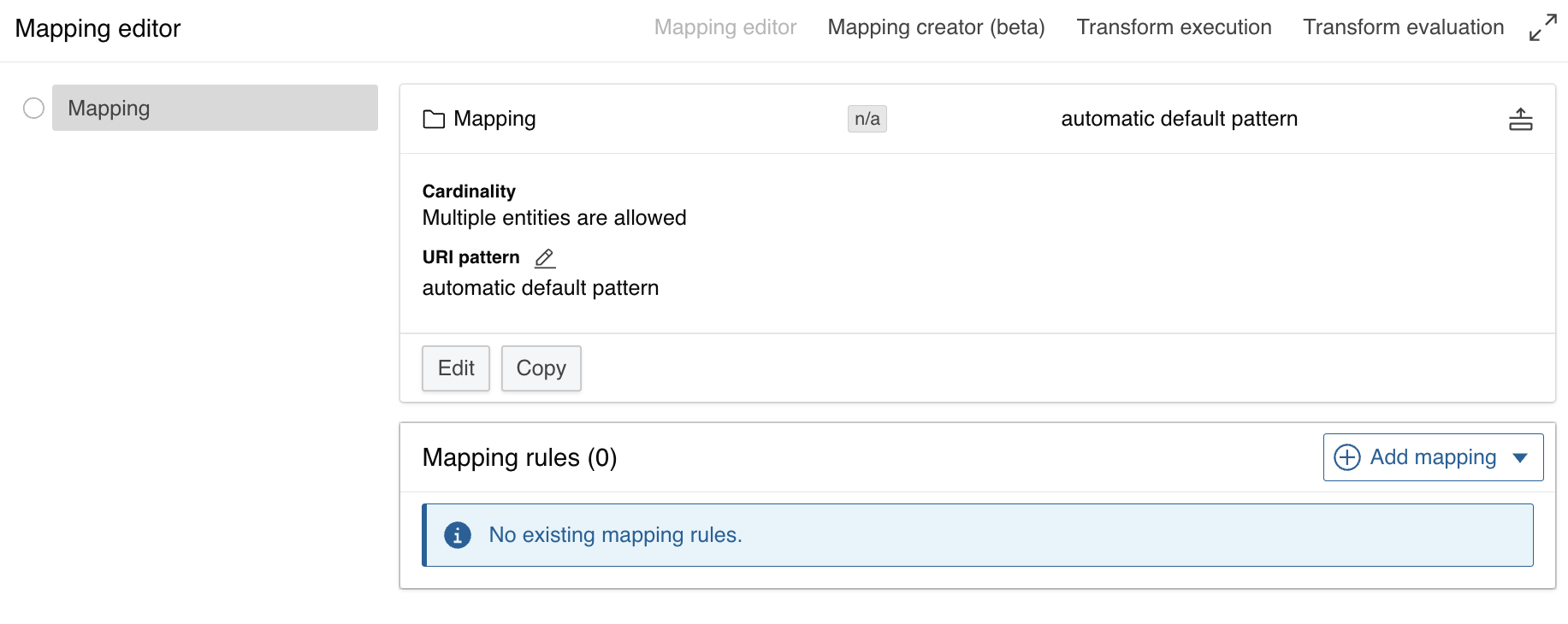

5. Click Edit to create a base mapping.

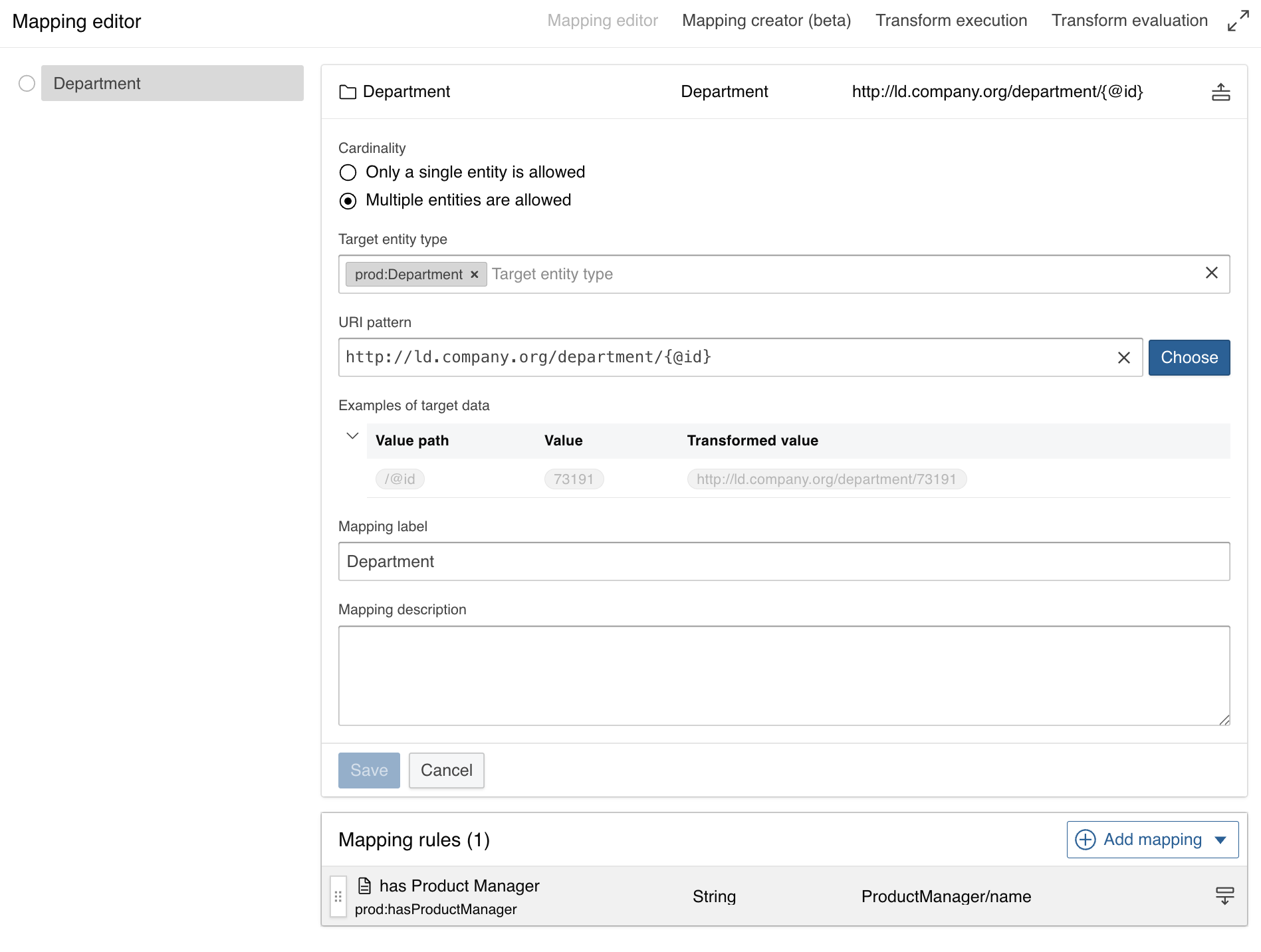

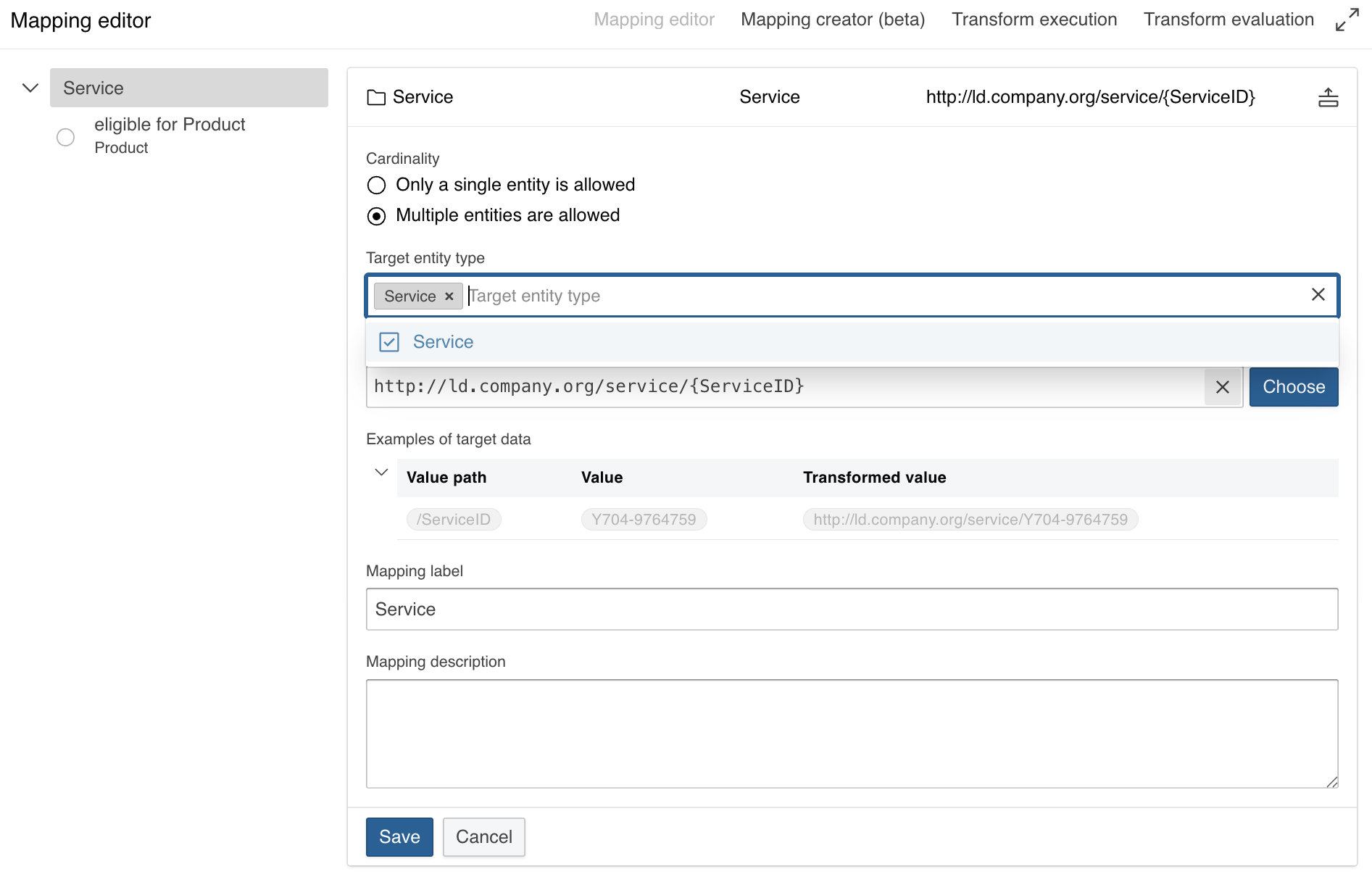

6. Define the Target entity type from the vocabulary, the URI pattern and a Label for the mapping.

   The URI pattern field is read-only and shows Default pattern. until you click Create custom pattern next to it.

   JSONXML

   Target Entity Type defines the class that will be instantiated when the mapping rule is applied.

   The URI pattern that defines the URI that shall be generated for each individual

   • http://ld.company.org/prod-inst/ is a common prefix for the instances in this use case,
   • service-instances/ complements the instances prefix by adding a common prefix for all service instances
   • and finally {ServiceID} is a placeholder that will resolve to the json-key ServiceID (e.g. “ServiceID”: “Y704-9764759”)

   In this example we will use:

   • Target Entity Type: Service
   • URI Pattern: http://ld.company.org/prod-inst/service-instances/{ServiceID}
   • An optional Label: Service

   Click Save.



   Example RDF triple in our Knowledge Graph based on the mapping definition:

   <http://ld.company.org/prod-inst/service-instances/Y704-9764759> <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://ld.company.org/prod-vocab/Service>


   Target Entity Type defines the class that will be instantiated when the mapping rule is applied.

   The URI pattern that defines the URI that shall be generated for each individual:

   • http://ld.company.org/department/{@id}
   • http://ld.company.org/department/_ is a common prefix for the department instances in this use case,
   • and finally {@id} is a placeholder that will resolve the XML attribute of the XML tag dept, which was configured as the Source Type of this transformation (see previous steps)

   In this example we will use:

   • Target Entity Type: Department
   • URI Pattern: http://ld.company.org/department/{@id}
   • An optional Label: Department

   Click Save.



   Example RDF triple in our Knowledge Graph based on the mapping definition:

   <http://ld.company.org/department/73191> <http://www.w3.org/1999/02/22-rdf-syntax-ns#type> <http://ld.company.org/prod-vocab/Department>

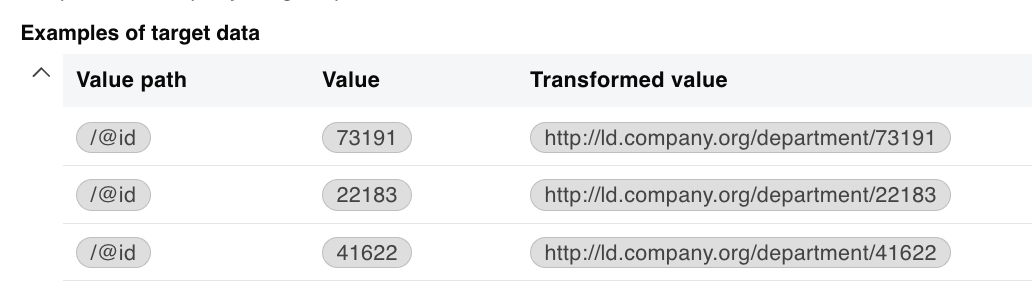

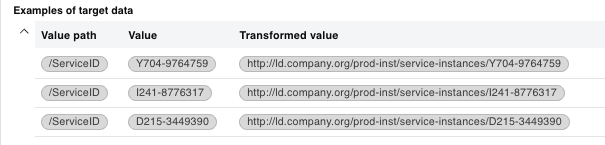

7. Evaluate your mapping by pressing on the button in the Examples of target data property to see at most three generated base URIs.

   JSONXML





   We have now created the entities in the Knowledge Graph.

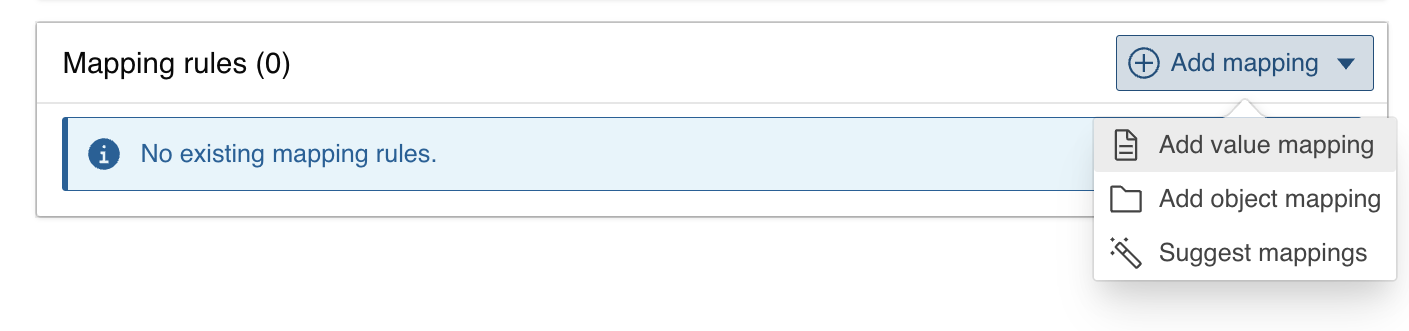

8. Click the Add Mapping drop-down and select Add value mapping.



   JSONXML

   Define the Target property, the Data type, the Value path (path into the source data) and a Label for your value mapping. In this example, enter the following:

   • Target Property: has product manager
   • Data type: String
   • Value path: ProductManager
     • which corresponds to the ProductManager key of each object in the JSON array, e.g. "ProductManager": "Lambert.Faust@company.org"
     • the path is relative to the base mapping, which iterates over the objects of the array, so no leading path segment is needed
   • An optional Label: has Product Manager



   Click Save.

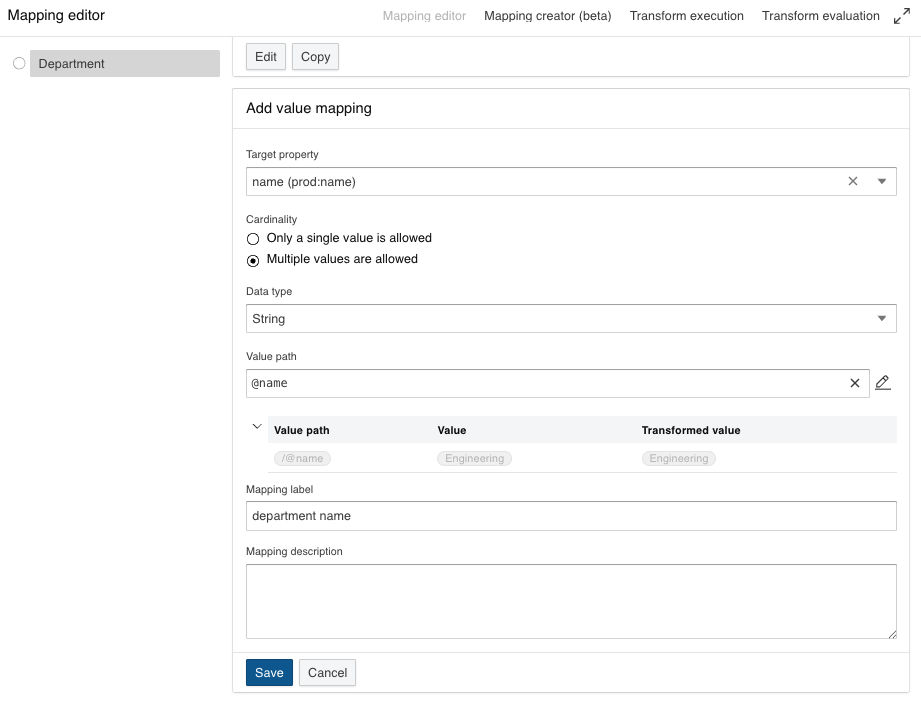

   Define the Target property, the Data type, the Value path (path into the source data) and a Label for your value mapping. In this example we will use:

   • Target Property: name
   • Data type: String
   • Value path: @name
     • which corresponds to the department name attribute in the XML file
   • An optional Label: department name



   Click Save.

By clicking on the button in the Examples of target data property, a preview for result of the value mapping is shown.

JSONXML

6 Evaluate a Transformation

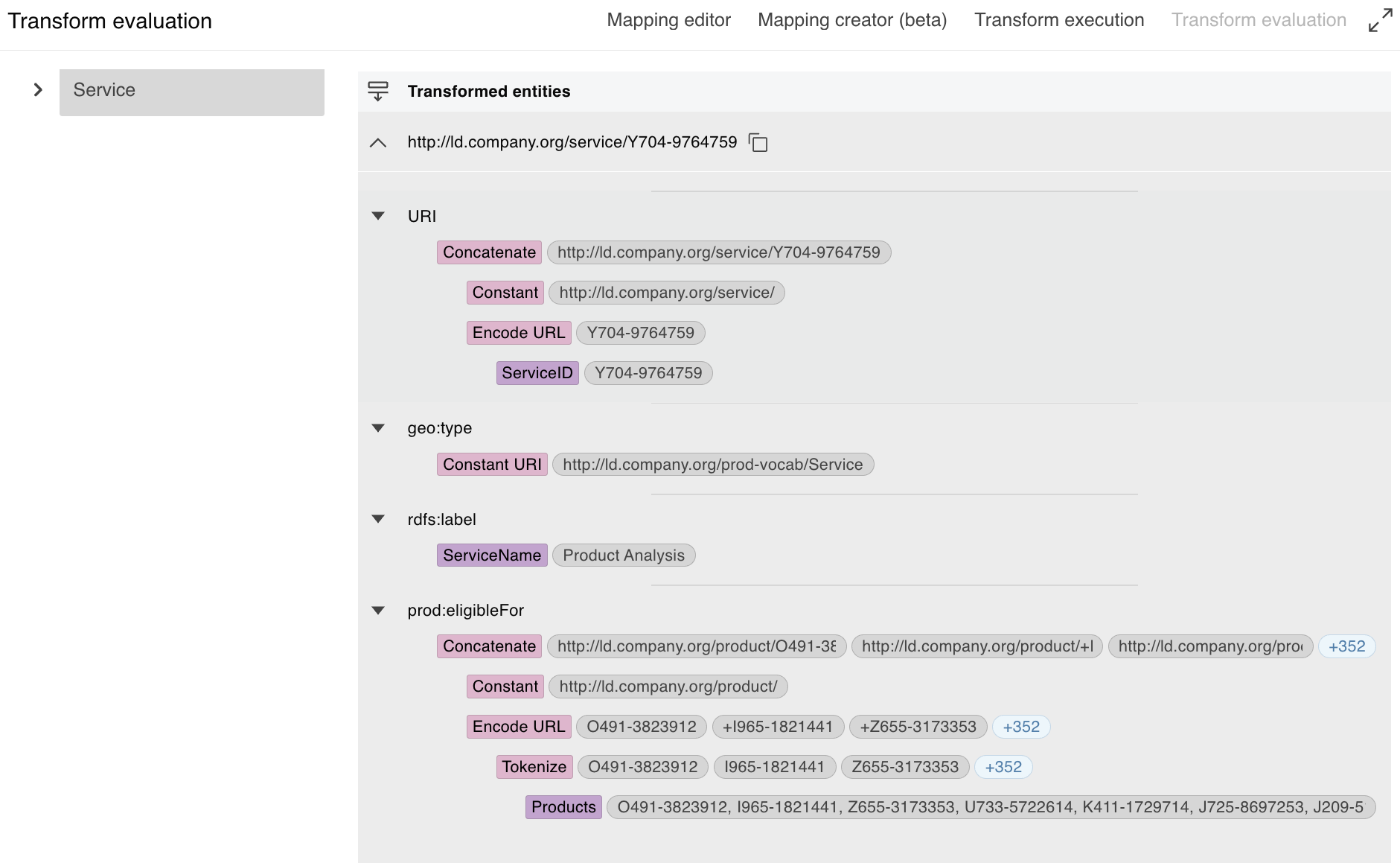

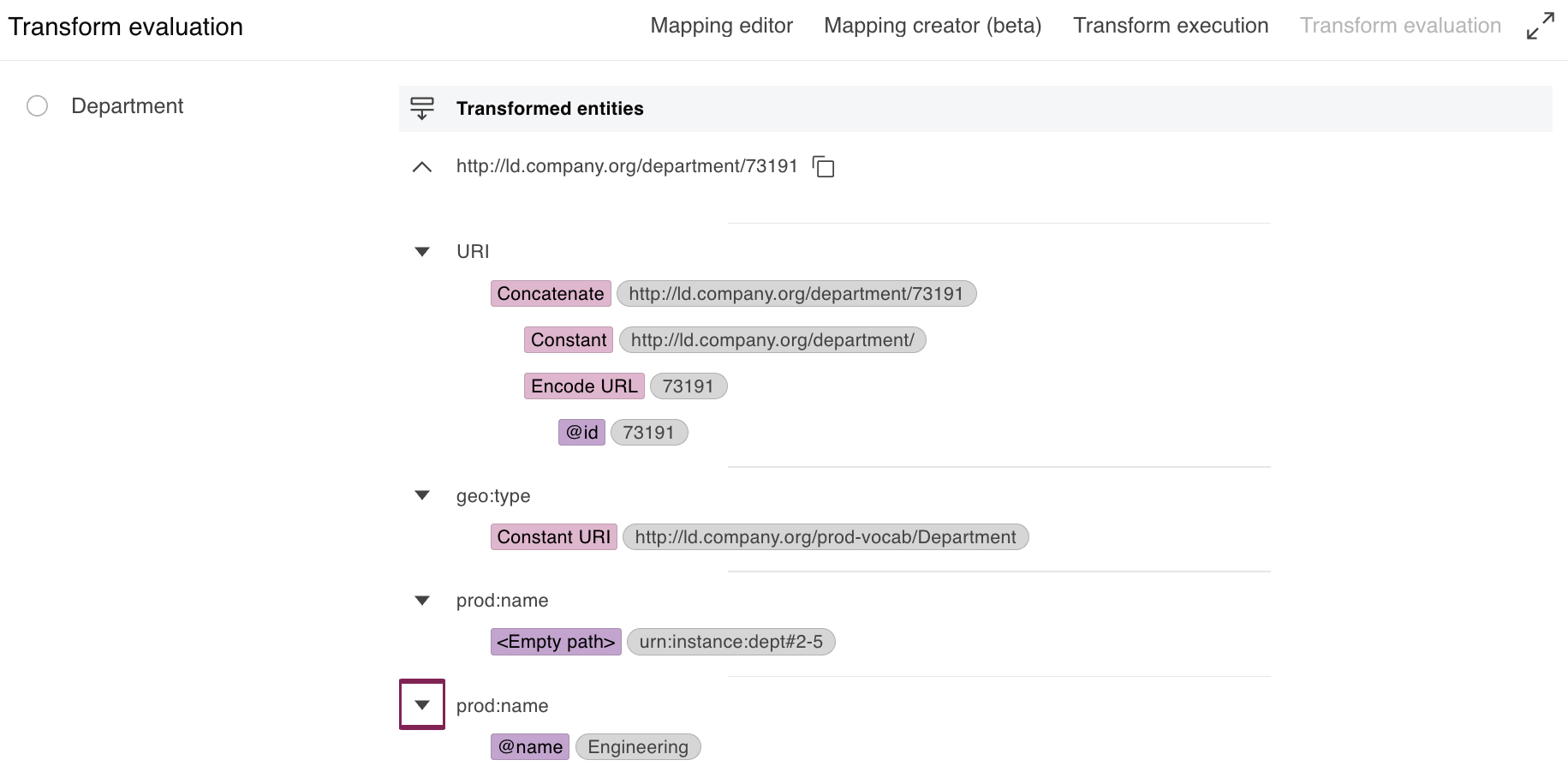

Click Transform evaluation to evaluate the transformed entities.

JSONXML

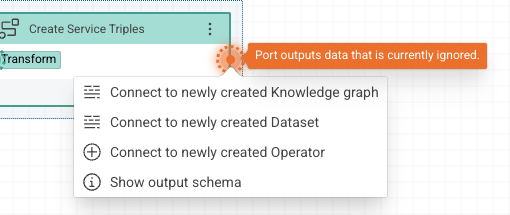

7 Build the Knowledge Graph

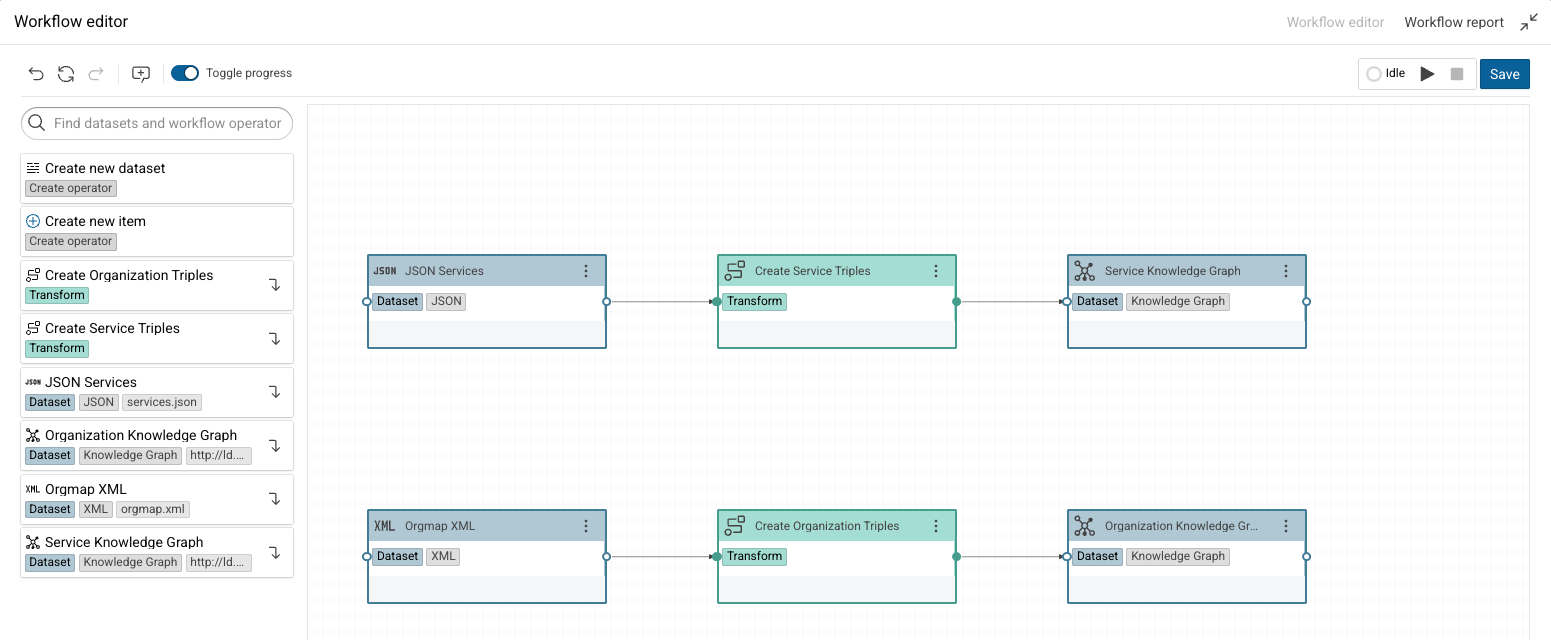

1. Click Transform execution

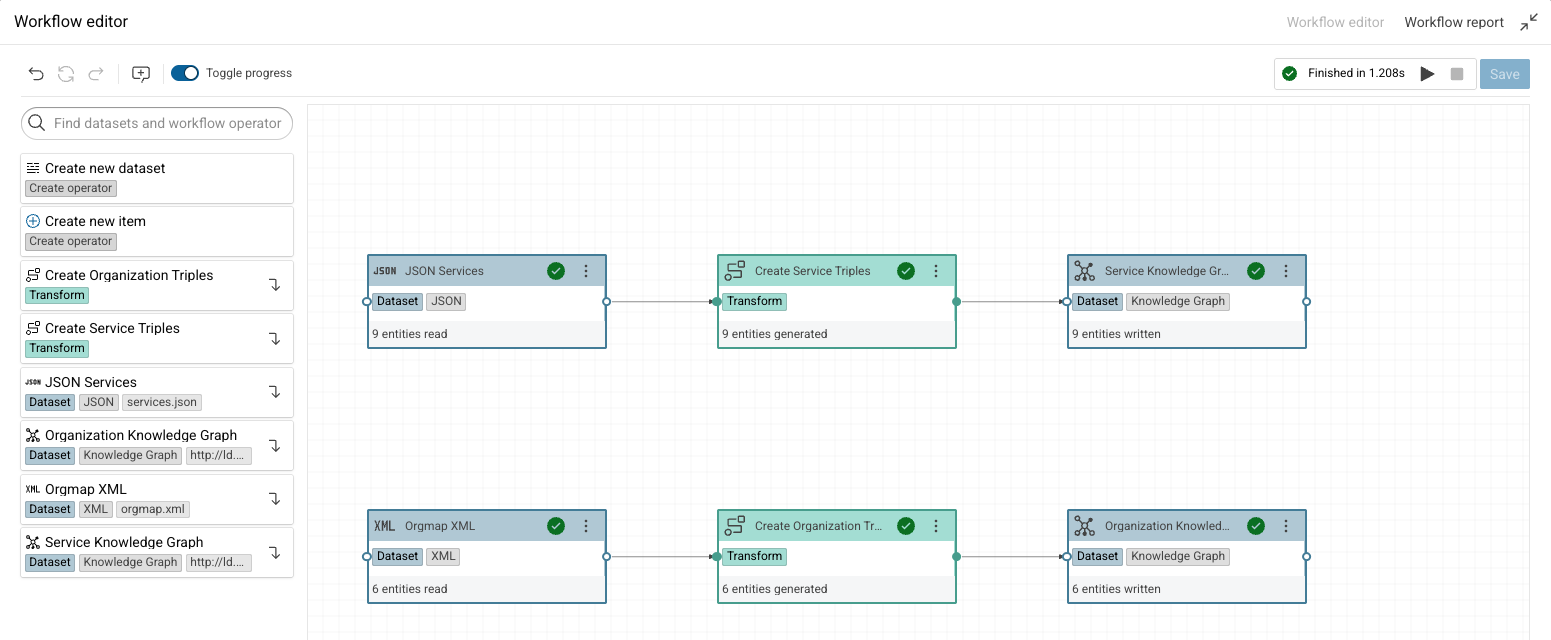

2. Click the button and validate the results. In this example, 6 Department (XML) or 9 Service (JSON) entities were created in our Knowledge Graph based on the mapping.
3. Click Knowledge graphs under EXPLORE to view the created Knowledge Graphs.

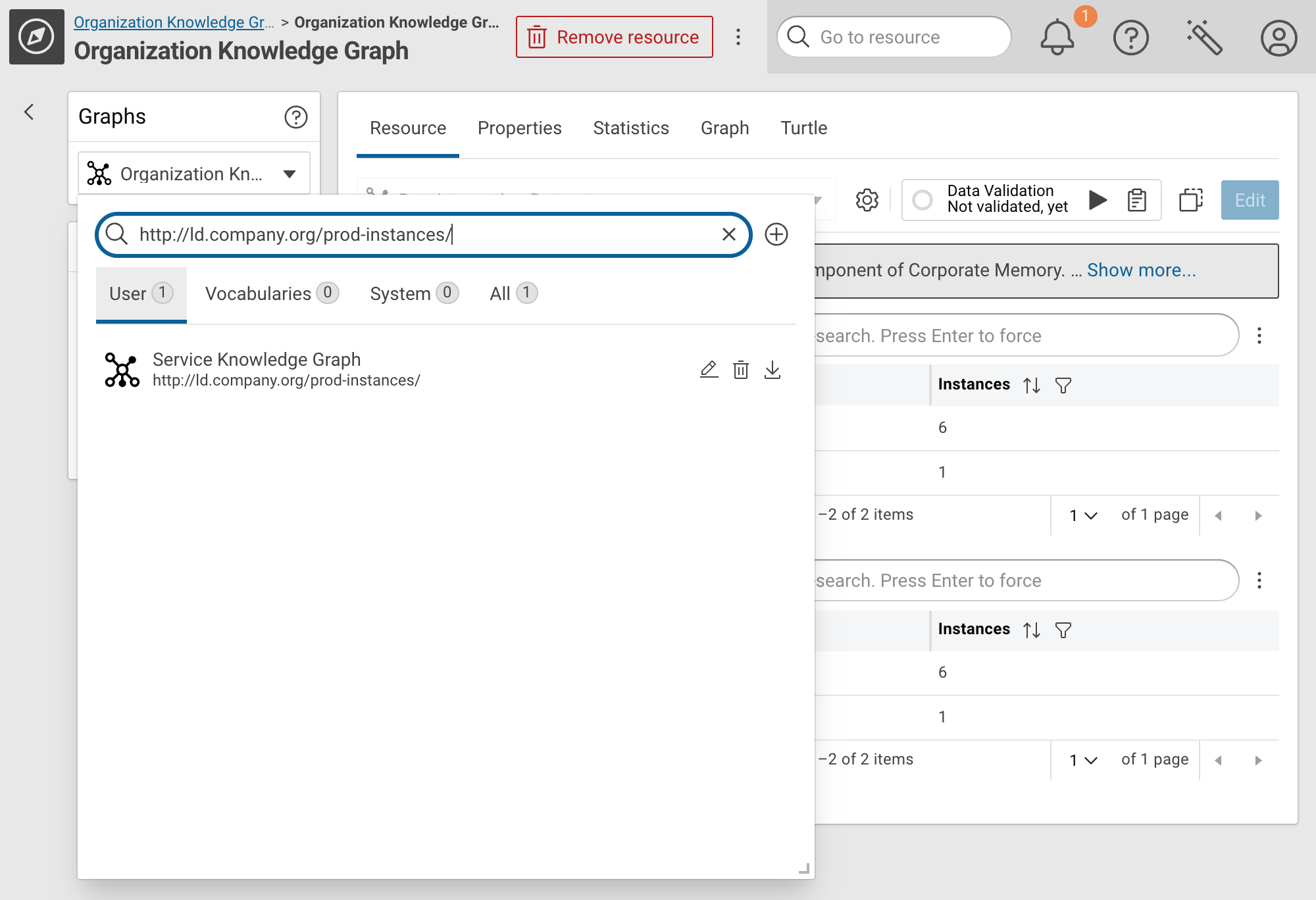

4. Open the Graphs drop-down at the top of the left panel and enter the graph URI in its search field (not the Enter search term field of the Navigation panel below it — that one filters classes within the already-selected graph). Then select the graph from the result list.
   • JSON / Service: http://ld.company.org/prod-instances/
   • XML / Department: http://ld.company.org/organization-data/

JSONXML

Comments
